5.2.4 Results

At the end of a test sequence or single step test, you may review the measurements of each test
by pressing the "Results" soft key. Results may be accessed from the end of test Summary

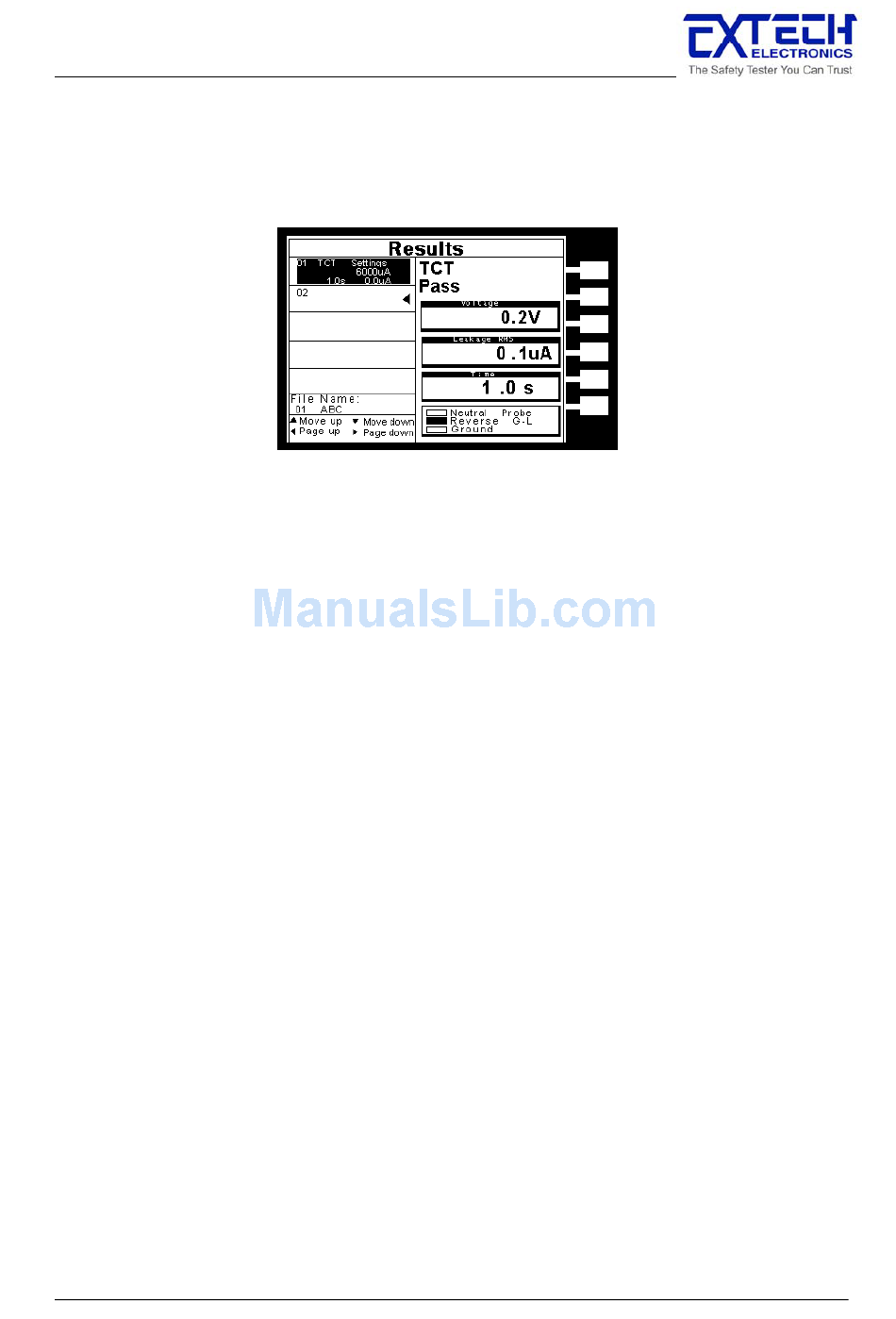

screen or from the Perform Tests screen. The end of test Summary screen appears as follows:
Using the up and down arrow keys, scroll the highlighted area to the step results you wish to
review. The left and right arrow keys may be used to page through results if the test contains
more than five steps. When the highlighted area is on the step you are reviewing, the test
settings will be displayed in the highlighted area and the results will appear on the right in the
form of metering screens. The result screens will appear differently for each type of test.
The results screens are based on the Performing Tests metering screens and are identical in
appearance except for the title.
77
