4. Description of Setting

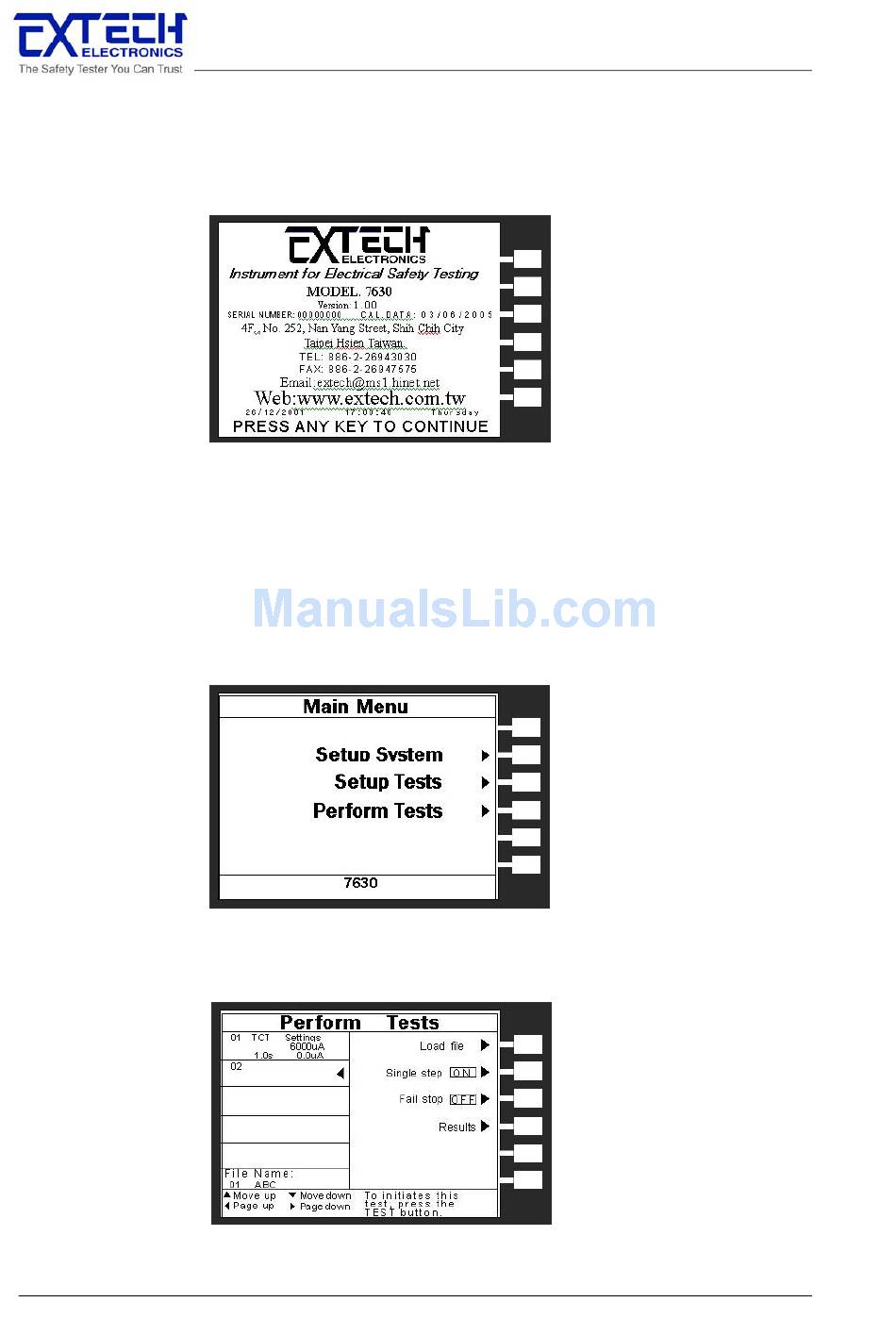

Turn on the POWER switch located on the lower left-hand side of the front panel. The
initialization screen will appear as follows:
If any of the parameters at the Power-On Screens have been altered from their original settings,
the sequence of initialization screens may not follow suite with what was described in the
previous paragraph. Please refer to the section 4.1 Setup System Menu for a description of
the Power-On Screen parameters.
After pressing any key, the Main Menus screen will be displayed. The Main Menu screen
will appear as follows:
At the Main Menu screen, press the "Perform Tests" soft key. The Perform Tests screen will
now be displayed. The Perform Test screen will appear as follows:
The 7630 comes pre-loaded with one default test file , and the left side of the display shows
