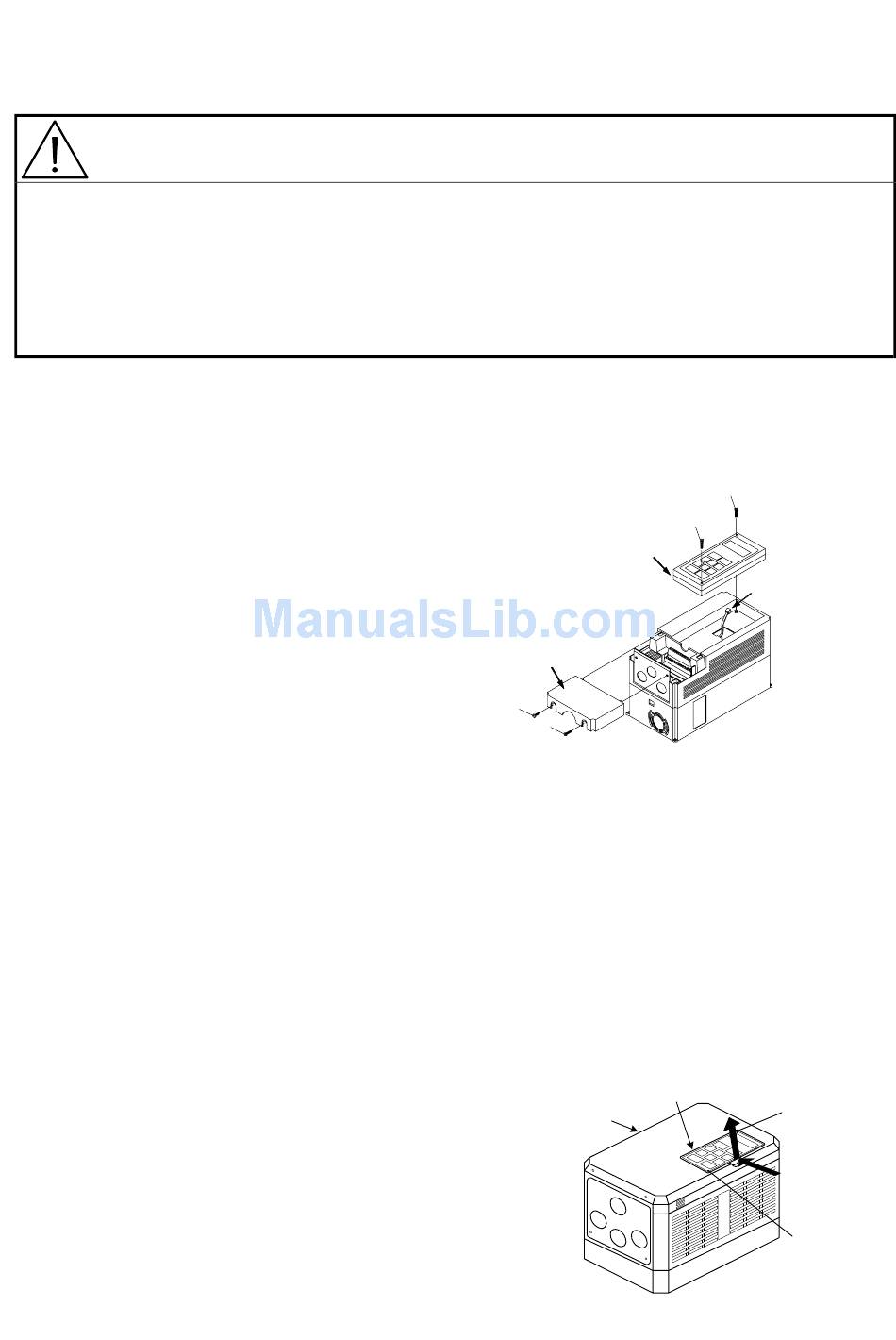

1.3 Removing/Attaching the Digital Operator and Front cover

Caution
1. Do not remove or attach the LCD digital operator, mount or remove the front cover
using methods other than those described above, otherwise the inverter may break or
malfunction due to imperfect contact.
2. Never hang the front cover on side of the inverter with the LCD digital operator
attached to the front cover, otherwise imperfect contact may result.
(A) For Compact Size Type 220V : 1-2HP, 440V : 1-2HP
•JNTMBGBB□□□□JKS－1
•JNTMBGBB□□□□JKSU1

■ Removing the digital operator :

Take off the two screws of the front cover in
the place a and b. Remove the front cover and
take off the screws in the place c and d.
Disconnect the RS-232 cable connector on the
back side of the LCD digital operator. And
then lift the digital operator upwards.

■ Mounting the front cover and digital operator :

Connect the RS-232 cable connector on the
back of the LCD digital operator.
Attach the digital operator and tighten the screws in the place c and d. Insert the tabs of
the upper part of front cover into the groove of the inverter and tighten the screws in
the place a and b.
(B) For Standard Type 220V : 3-10HP, 440V : 3-10HP
•JNTMBGBB□□□□JK－－1
•JNTMBGBB□□□□JK－U1
•JNTMBGBB□□□□JKA－1
•JNTMBGBB□□□□JKAU1
■
Removing the digital operator
Take off the screws in the place a and b.
Press the lever on the side of the digital operator
in the direction of arrow 1 to unlock the digital
operator.
Disconnect the RS-232 cable connector on the
back side of the LCD digital operator. Lift the
digital operator in the direction of arrow 2 to
remove the digital operator.
•JNTMBGBB□□□□AZS－1
•JNTMBGBB□□□□AZSU1
LCD Digital
Operator
Front Cover
a
b
•JNTMBGBB□□□□AZ－－1
•JNTMBGBB□□□□AZ－U1
•JNTMBGBB□□□□AZA－1
•JNTMBGBB□□□□AZAU1
Front Cover
5
d
c
RS-232
Cable
Connector
LCD Digital Operator
a
2
1
b
