Removing the front cover

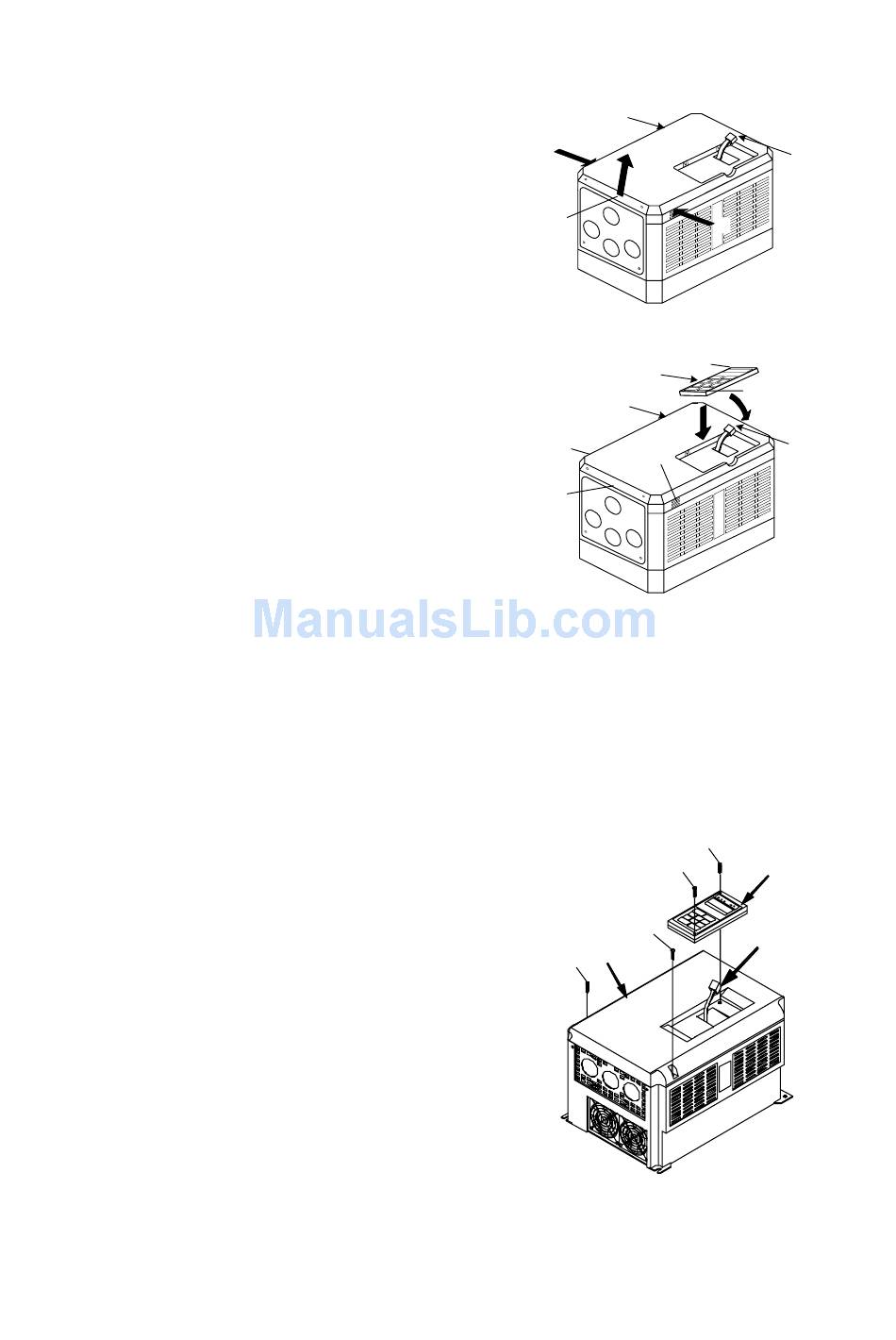

Press the left and right sides of the front cover in
the directions of arrow 1 and lift the bottom of the
cover in the direction of arrow 2 to remove the
front cover.
■
Mounting the front cover and digital operator
Insert the tab of the upper part of front cover into
the groove of the inverter and press the lower part
of the front cover onto the inverter until the front
cover snaps shut.
Connecting the RS-232 cable connector on the
back side of the LCD digital operator and hook
the digital operator at a on the front cover in the
direction of arrow 1.
Press the digital operator in the direction of arrow
2 until it snaps in the place b and then tighten the
screws in the place c and d. (on the front cover)
(C) For 220V 15,20HP and 440V 15,20HP Series
•JNTMBGBB□□□□JK－－1
•JNTMBGBB□□□□JK－U1
■ Removing the digital operator :
Take off the screws in the place a and b.
Disconnect the RS-232 cable connector on the
back side of the LCD digital operator and then lift
the digital operator upwards.
■ Removing the front cover :
Loosen the two screws of the front cover in the
place c and d. And lift the bottom of the front
cover to remove the front cover.
■ Mounting the front cover and digital operator :
Insert the tab of the upper part of front cover into
the groove of the inverter and tighten the screws
in the place c and d.
Connect the RS-232 cable connector on the back
of the LCD digital operator.
Attach the digital operator and tighten the screws
in the place a and b.
Front
Cover
1
c
Digital
Operator
Front
Cover
e
c
•JNTMBGBB□□□□AZ－－1
•JNTMBGBB□□□□AZ－U1
Front
Cover
d
6
RS-232
2
Cable
Connector
1
a
b
2
RS-232
1
Cable
d
Connector
a
LCD Digital
Operator
b
c
RS-232 Cable
Connector
