12. Connect the DIVAR to an approved ground point. Use the ground screw (supplied in the
5.1.1

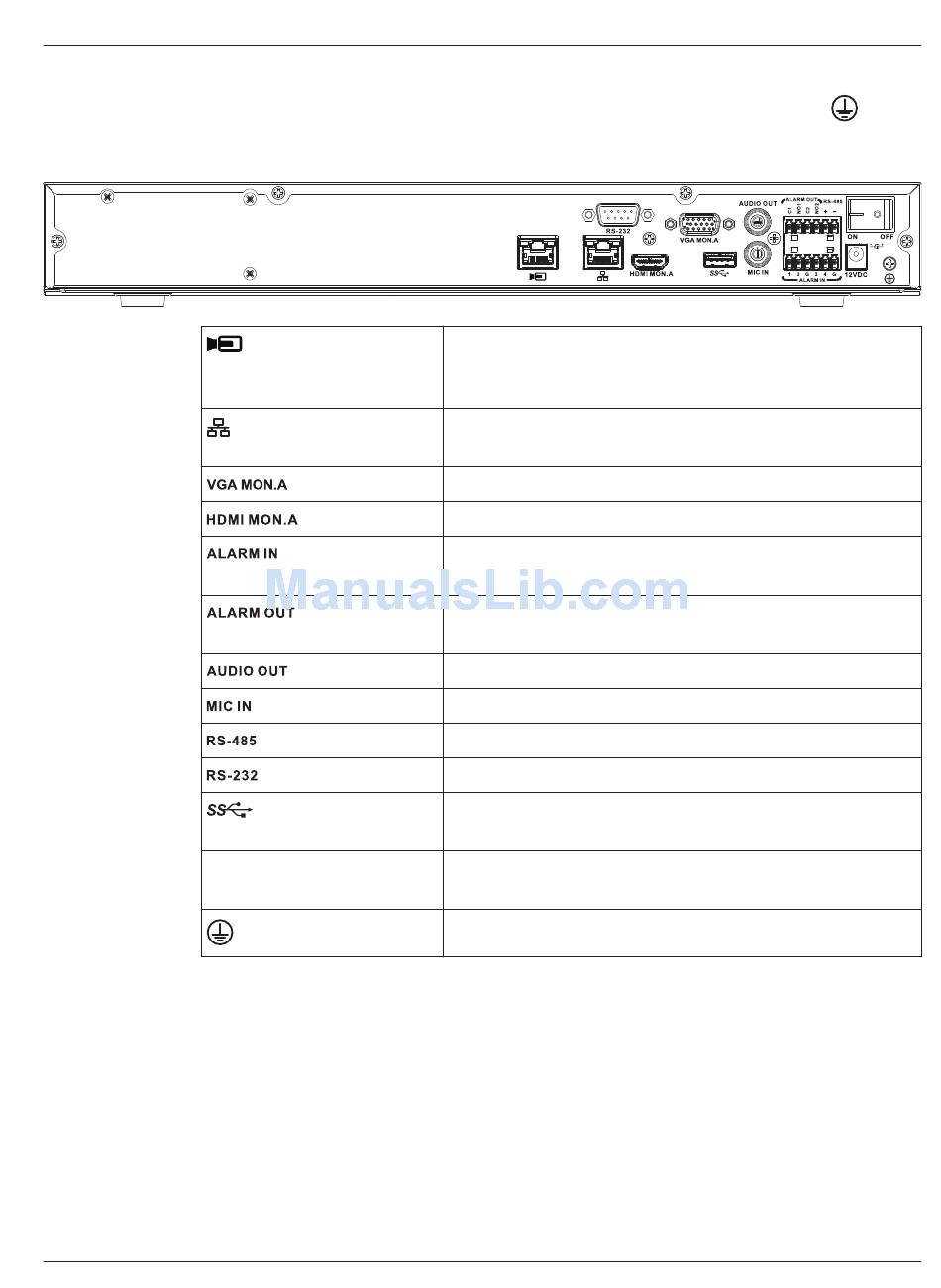

Back panel connectors DIVAR network 2000/3000 (no PoE)

Power input with On/Off
switch
Bosch Security Systems
accessory bag) to attach a ground cable to the DIVARback panel ground point
RJ45 video input for max. 32 IP cameras (max. 16 IP cameras
for DIVAR 2000) connected via external switch (optional with
DHCP configuration)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 HDMI (Monitor output)
4 screw terminal inputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
2 screw terminal outputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
1 RCA (Audio output)
1 RCA (Audio input)
Screw terminal output
DB9 male, 9-pin D-type
One USB (3.0) connector for mouse or USB memory device;
one USB (2.0) also on front panel
12 VDC (5 A)
AC input adapter: 100~240 VAC, 50-60 Hz, 1.5 A
Ground connection
Installation Manual
Safety | en
9
.
2016.08 | v1.0 | AM18-Q0712
