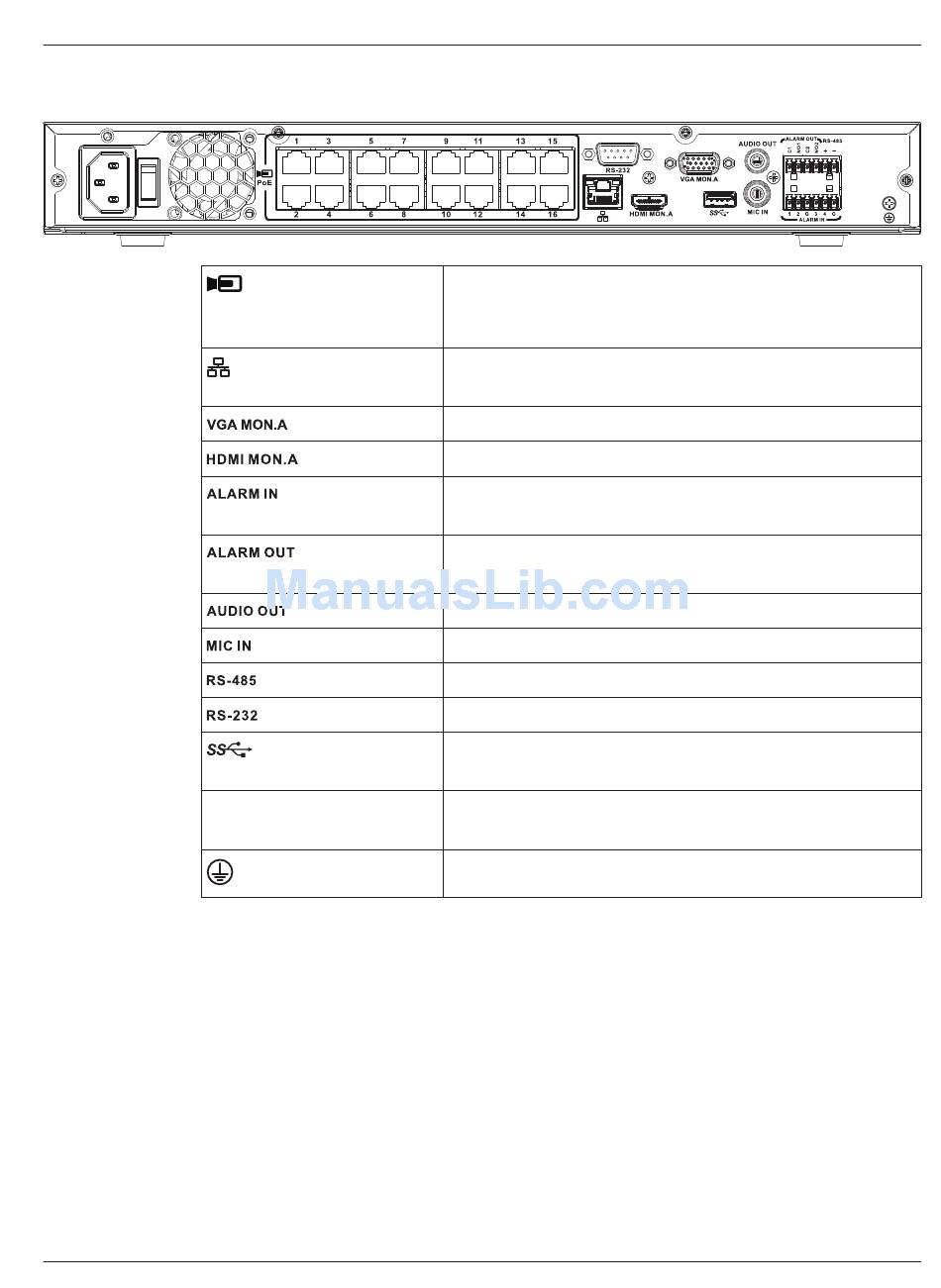

Back panel connectors DIVAR network 2000/3000 (16 PoE)

Power input with On/Off
switch
Bosch Security Systems
PoE
Max. 16 PoE ports (130 W; 25.5 W max. per port) connected
with DHCP configuration (max. 16 IP cameras for
DIVAR 2000; max 32 IP cameras for DIVAR 3000)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 HDMI (Monitor output)
4 screw terminal inputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
2 screw terminal outputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
1 RCA (Audio output)
1 RCA (Audio input)
Screw terminal output
DB9 male, 9-pin D-type
One USB (3.0) connector for mouse or USB memory device;
one USB (2.0) also on front panel
100~240 VAC, 50-60 Hz, 3.5 A, 190 W
Ground connection
