Bosch DIVAR 2000 Installation Manual

Network/hybrid video recorder
Hide thumbs

Advertisement

DIVAR 2000 / DIVAR 3000 / DIVAR 5000
Network/Hybrid Video Recorder
en
Installation Manual

Advertisement

Table of Contents
loading

  Related Manuals for Bosch DIVAR 2000

  Summary of Contents for Bosch DIVAR 2000

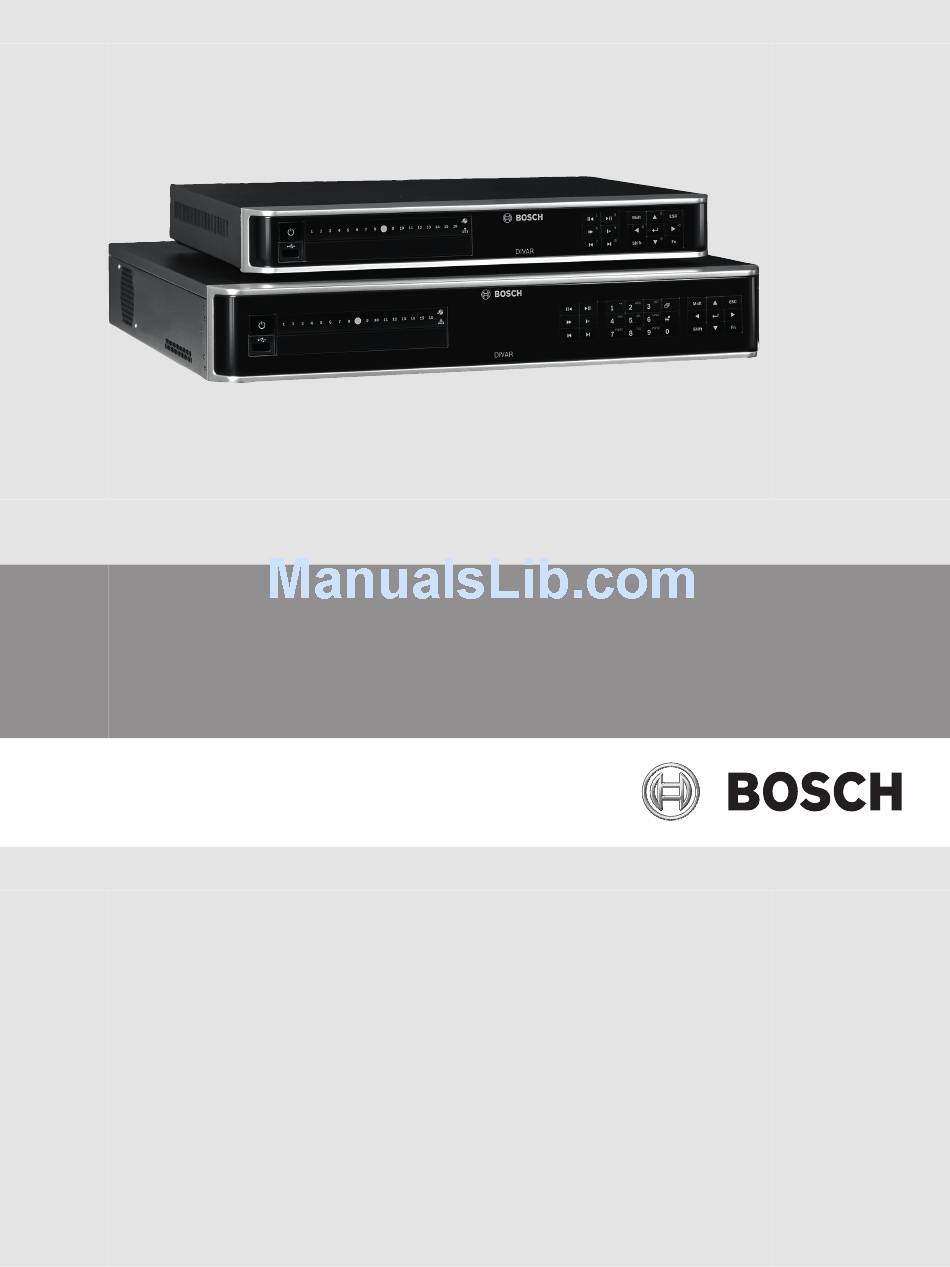

  • Page 1 DIVAR 2000 / DIVAR 3000 / DIVAR 5000 Network/Hybrid Video Recorder Installation Manual...
  • Page 3: Table Of Contents

    DIVAR 2000 / DIVAR 3000 / DIVAR Table of Contents | en 5000 Table of contents Safety Important safety instructions FCC and UL Short information System overview Planning information Unpacking Package contents Installation Make connections 5.1.1 Back panel connectors DIVAR network 2000/3000 (no PoE) 5.1.2...
  • Page 4: Safety

    Important safety instructions Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information.
  • Page 5 17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.
  • Page 6: Fcc And Ul

    All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com 2016.08 | v1.0 | AM18-Q0712...
  • Page 7: System Overview

    This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. Verify that all parts are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative.
  • Page 8: Installation

    Connect extra video out cables to the ports if loop through is required to other devices (only for DIVAR 5000 hybrid). 10. Connect a Bosch Intuikey keyboard cable to the connector using the supplied adaptor (only for DIVAR 5000). 11. Connect an eSATA storage device to the connector (only for DIVAR 5000).
  • Page 9: Back Panel Connectors Divar Network 2000/3000 (No Poe)

    DIVARback panel ground point 5.1.1 Back panel connectors DIVAR network 2000/3000 (no PoE) RJ45 video input for max. 32 IP cameras (max. 16 IP cameras for DIVAR 2000) connected via external switch (optional with DHCP configuration) RJ45 Ethernet connection (10/100/1000Base-T according to IEEE802.3)
  • Page 10: Back Panel Connectors Divar Network 2000 (8 Poe)

    DIVAR 2000 / DIVAR 3000 / DIVAR en | Safety 5000 5.1.2 Back panel connectors DIVAR network 2000 (8 PoE) Max. 8 RJ45 PoE ports (104.5 W; 25.5 W max. per port) connected with DHCP configuration (maximum 16 IP channels possible) RJ45 Ethernet connection (10/100/1000Base-T according to IEEE802.3)
  • Page 11: Back Panel Connectors Divar Network 2000/3000 (16 Poe)

    Back panel connectors DIVAR network 2000/3000 (16 PoE) Max. 16 PoE ports (130 W; 25.5 W max. per port) connected with DHCP configuration (max. 16 IP cameras for DIVAR 2000; max 32 IP cameras for DIVAR 3000) RJ45 Ethernet connection (10/100/1000Base-T according to IEEE802.3)
  • Page 12: Back Panel Connectors Divar Network 5000 (No Poe)

    DIVAR 2000 / DIVAR 3000 / DIVAR en | Safety 5000 5.1.4 Back panel connectors DIVAR network 5000 (no PoE) RJ45 for connecting max. 32 IP cameras RJ45 Ethernet connection (10/100/1000Base-T according to IEEE802.3) 1 D-SUB (Monitor output) 1 HDMI (Monitor output in maximum 4k resolution) 1 HDMI (output for spot monitor) 16 screw terminal inputs, cable diameter AWG26‑16 (0.13–...
  • Page 13: Back Panel Connectors Divar Network 5000 (16 Poe)

    DIVAR 2000 / DIVAR 3000 / DIVAR Safety | en 5000 5.1.5 Back panel connectors DIVAR network 5000 (16 PoE) 16 RJ45 ports (200 W; max. 25.5 W per port) for connecting max. 16 PoE cameras connected with DHCP configuration (max.
  • Page 14: Back Panel Connectors Divar Hybrid 3000

    DIVAR 2000 / DIVAR 3000 / DIVAR en | Safety 5000 5.1.6 Back panel connectors DIVAR hybrid 3000 16 BNC for connecting max. 16 analog cameras Max. 16 IP cameras connected with external switch (if no analog cameras are connected, an extra 16 IP cameras can...
  • Page 15: Back Panel Connectors Divar Hybrid 5000

    DIVAR 2000 / DIVAR 3000 / DIVAR Safety | en 5000 5.1.7 Back panel connectors DIVAR hybrid 5000 16 BNC for connecting max. 16 analog cameras Max. 16 IP cameras connected with external switch (if no analog cameras are connected, an extra 16 IP cameras can...
  • Page 16: Powering Up

    DIVAR 2000 / DIVAR 3000 / DIVAR en | Safety 5000 Powering up For units with an external power adapter Switch on all equipment connected to unit. Connect the DC power cord of the power adaptor to the 12 VDC connector on the unit.
  • Page 17: Login

    DIVAR 2000 / DIVAR 3000 / DIVAR Safety | en 5000 Login Log in to your recorder by entering your user name and password, then click <OK>. Use the supplied USB mouse, front panel, remote control or keyboard to input data and commands.
  • Page 18: Quick Menu

    DIVAR 2000 / DIVAR 3000 / DIVAR en | Safety 5000 Instant playback, Zoom, and Snapshot Move the mouse to the top of a camera display to show the control bar: Click an icon for the following functions: Icon Name...
  • Page 19: Main Menu

    DIVAR 2000 / DIVAR 3000 / DIVAR Safety | en 5000 Snapshot – make a snapshot of the current live camera images: – A disclaimer screen may initially appear when you select Snapshot (click <Accept> to continue). – Choose to export the snapshot to an email address, a USB memory device, and/or a DVD.
  • Page 20: Replace Internal Battery

    The unit should only be passed on together with this installation guide. Disposal Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material.
  • Page 22 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2016...

This manual is also suitable for:

Divar 3000Divar 5000
