12
en | Safety
5.1.4

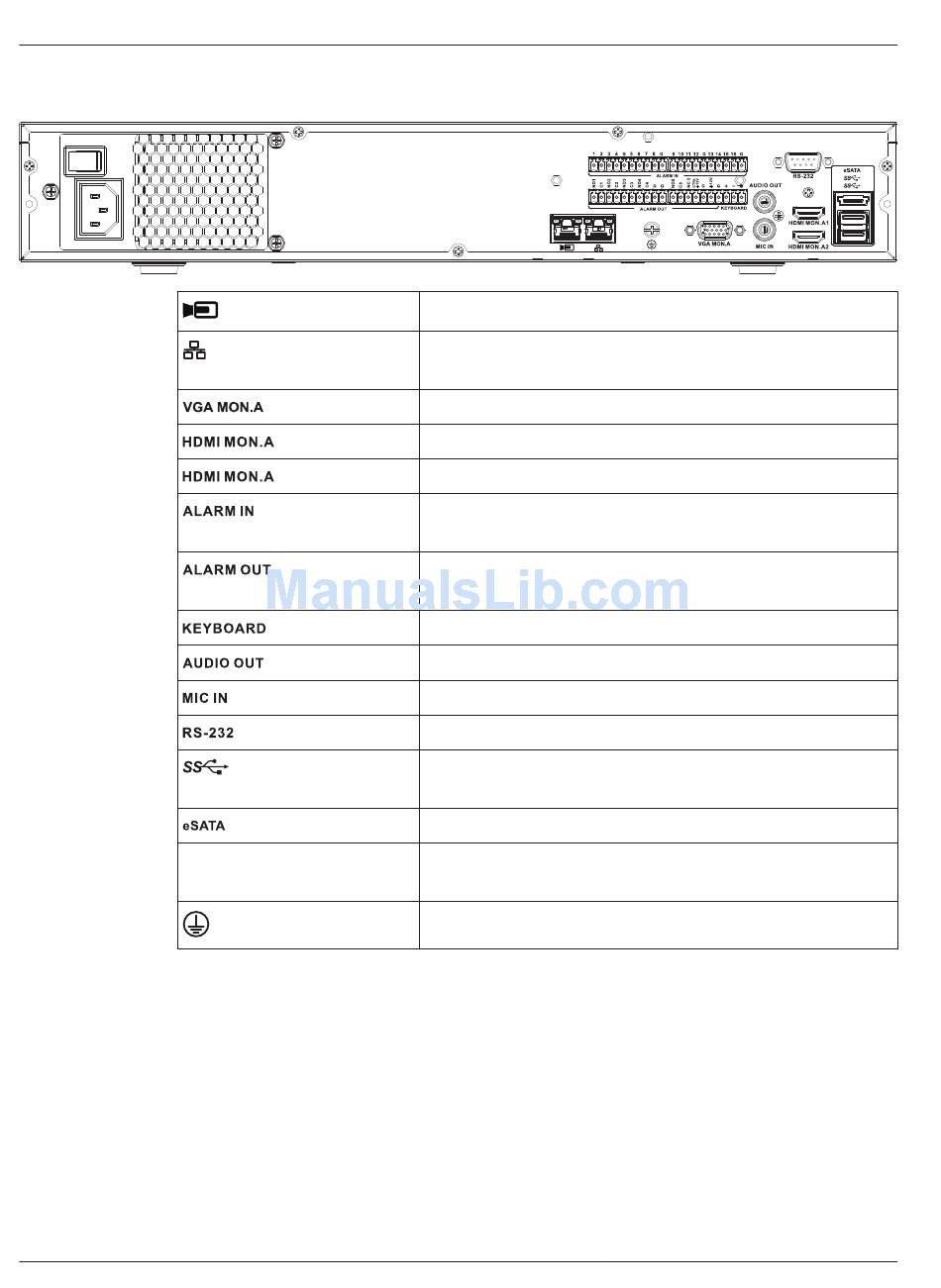

Back panel connectors DIVAR network 5000 (no PoE)

Power input with On/Off
switch
2016.08 | v1.0 | AM18-Q0712
RJ45 for connecting max. 32 IP cameras
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1
1 HDMI (Monitor output in maximum 4k resolution)
2
1 HDMI (output for spot monitor)
16 screw terminal inputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
6 screw terminal outputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
Screw terminals, cable diameter AWG26‑16 (0.13–1.5 mm)
1 RCA (Audio output)
1 RCA (Audio input)
DB9 male, 9-pin D-type
Two USB (3.0) connectors for mouse or USB memory device;
one USB (2.0) also on front panel
For backup/memory device
100~240 VAC, 50-60 Hz, 1.9 A, 75 W
Ground connection
Installation Manual
DIVAR 2000 / DIVAR 3000 / DIVAR
Bosch Security Systems
5000
