Back Panel Connectors Divar Hybrid 3000 - Bosch DIVAR 2000 Installation Manual

Network/hybrid video recorder
Hide thumbs

Advertisement

14
en | Safety
5.1.6

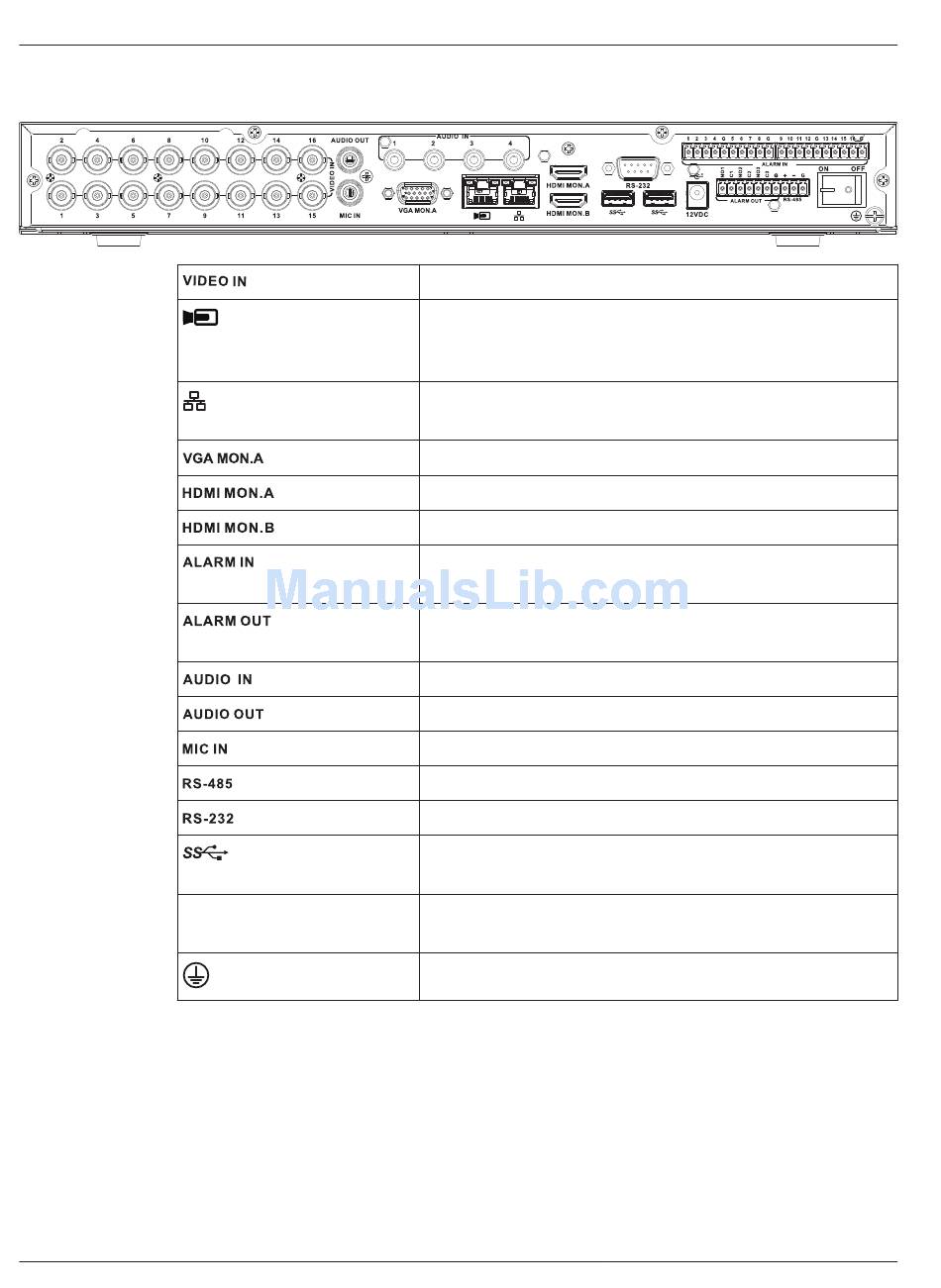

Back panel connectors DIVAR hybrid 3000

Power input with On/Off
switch
2016.08 | v1.0 | AM18-Q0712
16 BNC for connecting max. 16 analog cameras
Max. 16 IP cameras connected with external switch (if no
analog cameras are connected, an extra 16 IP cameras can
be connected)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 HDMI (Monitor output)
1 HDMI (output for spot monitor)
16 screw terminal inputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
4 screw terminal outputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
4 RCA (Audio inputs)
1 RCA (Audio output)
1 RCA (Audio input)
Screw terminal output (Dome control)
DB9 male, 9-pin D-type (Dome control)
One front (2.0) and two rear (3.0) USB connectors for mouse
or USB memory device
12 VDC (5 A)
AC input adapter: 100~240 VAC, 50-60 Hz, 1.5 A
Ground connection
