Bosch DIP-71F0-00N Installation Manual

Hide thumbs

Advertisement

Quick Links

DIVAR IP 7000 (3U)
DIP-71F0-00N | DIP-71F3-16HD | DIP-71F4-16HD |
DIP-71F6-16HD | DIP-71F8-16HD
en
Installation Manual

Advertisement

loading

  Related Manuals for Bosch DIP-71F0-00N

  Summary of Contents for Bosch DIP-71F0-00N

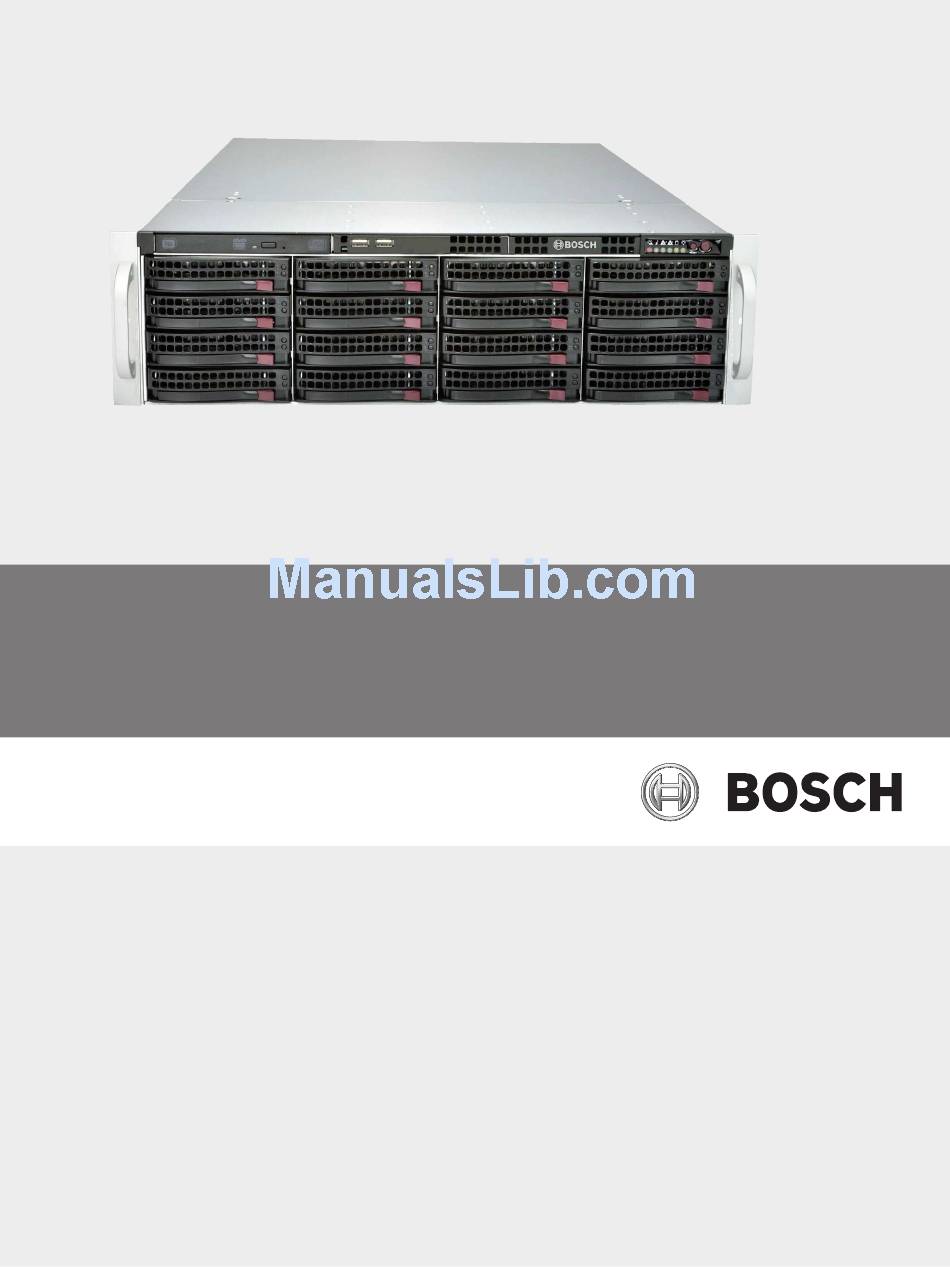

  • Page 1 DIVAR IP 7000 (3U) DIP-71F0-00N | DIP-71F3-16HD | DIP-71F4-16HD | DIP-71F6-16HD | DIP-71F8-16HD Installation Manual...
  • Page 3: Table Of Contents

    Turning on the system System setup - first steps Introduction Setup instruction Starting the application Using Bosch VMS Config Wizard Using Bosch VMS Operator Client Connecting to the internet Protecting the system from unauthorized access Setting up port forwarding Choosing an appropriate client...
  • Page 4 RAID setup Additional documentation and client software OSS licenses MIT - iniparser MS-PL - MSDN Library NTP License - NTP Project Appliance Finder Bosch VMS licenses Maintenance 10.1 Replacement components 10.2 Removing power from the system 10.3 Removing the chassis cover 10.4...
  • Page 5: Safety Information

    The Low Voltage power supply unit must comply with EN/UL 60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 6: Important Safety Instructions

    Read, follow, and retain for future reference all of the following safety instructions. Follow all warnings before operating the device. – Clean only with a dry cloth. Do not use liquid cleaners or aerosol cleaners. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 7 – For protection of the device, the branch circuit protection must be secured with a maximum fuse rating of 16 A. This must be in accordance with NEC800 (CEC Section 60). Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 8: Electrical Safety Precautions

    SELV circuits. – If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. –...
  • Page 9: Esd Precautions

    Notices Notice! This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 10: Fcc And Ices Compliance

    DIVAR IP 7000 (3U) Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information.
  • Page 11 Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 12: About This Manual

    This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the chassis. Installation and maintenance should be performed by experienced and qualified technicians only. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 13: System Overview

    128 channels (with 32 channels pre-licensed). Running the full Bosch VMS (Video Management System) solution and powered by Bosch VRM (Video Recording Manager) software, the DIVAR IP 7000 is an intelligent IP storage device that eliminates the need for separate NVR (Network Video Recorder) server and storage hardware.
  • Page 14: Fans

    The externally accessible hard drives display status lights. The power supply displays status lights visible from the back of the chassis. Front view: 2x USB 2.0 ports Power failure Information LED NIC1/NIC2 HDD (drive activity) Power Reset Power on/off 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 15 1x network port for BMC (Baseboard Management Controller) connection and IPMI (Intelligent Platform Management Interface) monitoring 4 USB ports 2x network ports for data transmission (2x USB 2.0 and 2x USB 3.0) (teamed) Note: Do not change the teaming mode! Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 16: Control Panel Buttons

    Check the routing of the cables and make sure all fans are present and operating normally. You should also check to make sure that the chassis covers are installed. Finally, verify that the heat sinks are installed properly. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 17: Drive Carrier Leds

    Blinking Amber: When blinking, the system power supply temperature has reached 63”C. The system will automatically turn off when the power supply temperature reaches 70”C and restart when the power supply temperature goes below 60”C. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 18: Rack Installation

    If the chassis itself shows damage, file a damage claim with the carrier who delivered it and notify the respective Bosch RMA desk. Due to the weight of the system: After opening the top of the shipping box, one person should stand at either end and lift the disk array out together.
  • Page 19: General System Precautions

    Also refer to the installation instructions that came with the rack unit you are using. Notice! This rail will fit a rack between 26.5" and 36.4" deep. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 20: Identifying The Sections Of The Rack Rails

    To separate the inner and outer rails: Locate the rail assembly in the chassis packaging. Extend the rail assembly by pulling it outward. Press the quick-release tab. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 21: Installing The Inner Rails On The Chassis

    The following picture shows the inner rails installed on the chassis. 4.3.4 Installing the outer rails to the rack Outer rails attach to the rack and hold the chassis in place. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 22: Installing The Chassis In The Rack

    Mounting the chassis into the rack requires at least two people to support the chassis during installation. Please follow safety recommendations printed on the rails. Notice! Figures are for illustrative purposes only. Always install chassis into racks from the bottom 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 23: Installing The Chassis In A Telco Rack

    (four in total). First, determine how far the chassis will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back. If a Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 24: Turning On The System

    Plug the power cord from the power supply unit into a high-quality power strip that offers protection from electrical noise and power surges. We recommended using an uninterruptible power supply (UPS). Press the power button on the control panel to turn on the system. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 25: System Setup - First Steps

    Enter the default password WSS4Bosch. After entering the password, a message is displayed that you must change the password before logging on the first time. To confirm, click OK. Change the password. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 26: Using Bosch Vms Config Wizard

    The installation can take several minutes. Do not turn off the computer. The Bosch VMS default screen is displayed. 10. On the Bosch VMS default screen, double-click the Bosch VMS Wizard icon to start the Configuration Wizard.
  • Page 27: Using Bosch Vms Operator Client

    Configuration Wizard itself, refer to the Bosch VMS manual (see Additional Documentation and client software). Using Bosch VMS Operator Client Use Bosch VMS Operator Client to verify the live, recording and playback functionality of DIVAR IP. To verify live image functionality in the Operator Client On the Bosch VMS default screen, double-click the Operator Client icon...
  • Page 28: Connecting To The Internet

    Remote connection with Operator Client To make a remote connection with Bosch VMS Operator Client Download the Bosch VMS installer from the product page or use the installer software on the DVD delivered with the product. Copy the Bosch VMS installer to the remote workstation that will be used for remote viewing.
  • Page 29: Installing An Enterprise Management Server

    User name: admin Password: enter user password Notice! Only use Bosch VMS Operator Client or Video Security App in the version that matches DIVAR IP. Other clients or application software may work but are not supported. Installing an Enterprise Management Server For a central management of multiple systems you can install Bosch VMS Enterprise Management Server on a separate server.
  • Page 30: Raid Setup

    Select all hard drives that are part of the RAID group. Start the virtual drive initialization. Exit the MegaRAID Configuration Utility program. Perform a complete system recovery (Initial Factory Setup). See also – Recovering the unit, page 50 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 31: Additional Documentation And Client Software

    Additional documentation and client software | en Additional documentation and client software Documentation and software for Bosch Security Systems products can be found in the online product catalogue as follows: Open any browser > enter www.boschsecurity.com > select your region and your country >...
  • Page 32: Oss Licenses

    This chapter provides an overview on used Open Source Licenses in DIVAR IP 7000. The license packages are either used completely or only some parts within a package are used. MIT - iniparser 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 33: Ms-Pl - Msdn Library

    DIVAR IP 7000 (3U) OSS licenses | en MS-PL - MSDN Library Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 34: Ntp License - Ntp Project

        Source Code and Executable Files can be redistributed; and     Source Code can be modified to create derivative works.     No claim of suitability, guarantee, or any warranty whatsoever is provided. The software is provided "as-is". 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 35 Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 36 Resource Identifier for, this License with every copy of the Executable Files or Source Code You distribute and ensure that anyone receiving such Executable Files and Source Code agrees that the terms of this License 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 37 (for the duration of the applicable copyright in the Work). Notwithstanding the above, the Author reserves the right to release the Work under different license terms or to stop distributing the Work at any time; Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 38: Bosch Vms Licenses

    Author and You. Bosch VMS licenses Bosch VMS licenses used in DIVAR IP 7000 products are listed in the Bosch VMS Open Source Licenses manual. The manual is available from the Bosch online product catalog.
  • Page 39: Maintenance

    Although not frequently, you may need replacement parts for your system. To ensure the highest level of professional service and technical support, you must register the systems according to the instructions available as part of the shipment as well as online from the Bosch product catalog. 10.2 Removing power from the system Before performing some setup or maintenance tasks, use the following procedure to ensure that power has been removed from the system.
  • Page 40: Removing The Chassis Cover

    The hard drives are mounted in hard drive carriers to simplify their installation and removal from the chassis. These hard drive carriers also help promote proper airflow for the hard drive bays. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 41: Installing A Hard Drive Into A Hard Drive Carrier

    The hard drives are mounted in hard drive carriers. To install a hard drive into a hard drive carrier: Remove the screws securing the dummy drive to the hard drive carrier. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 42 Notice! We recommend using the respective Bosch hard disk drives. The hard disk drives as one of the critical component are carefully selected by Bosch based on available failure rates. HDD – not delivered from Bosch – are not supported. Information on supported HDDs can be found in the datasheet in the Bosch Online Product Catalog.
  • Page 43: Installing A Hard Drive Into A Front Drive Bay

    The hard drives are mounted in hard drive carriers to simplify their installation and removal from the chassis. These hard drive carriers also help promote proper airflow for the hard drive bays. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 44: Installing A Hard Drive Into A Rear Hard Drive Carrier

    Notice! We recommend using the respective Bosch hard disk drives. The hard disk drives as one of the critical component are carefully selected by Bosch based on available failure rates. HDD – not delivered from Bosch – are not supported. Information on supported HDDs can be found in the datasheet in the Bosch Online Product Catalog.
  • Page 45: Installing A Hard Drive Into A Rear Drive Bay

    Replace the chassis cover. replace the unit in the rack, if necessary, then turn on the system. 10.8 Replacing the front port panel If you must install a new or replace a damaged front port panel, observe the following instructions. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 46: Installing The Motherboard

    Secure the expansion card shield to the chassis using the screw previously removed. 10.11 Installing the air shroud The air shroud does not require screws for its installation. 2016.08 | V2.1 | DOC Installation Manual Bosch Sicherheitssysteme GmbH...
  • Page 47: Replacing A System Fan

    The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 48: Replacing The Power Supply

    Replacing the power supply The chassis has a redundant power supply. Redundant power supplies are hot-swappable, and can be changed without turning off the system. Replacement units can be ordered directly from Bosch RMA desk. Warning! Redundant power supplies This unit might have more than one power supply connection. To de-energize the unit, remove all connections.
  • Page 49: Monitoring The System

    Double-click the SuperDoctor 5 service icon on the screen. Log on to the web interface using the following default credentials: User Name: ADMIN Password: ADMIN Click the Configuration tab, then click Password Settings and change the default password. Bosch Sicherheitssysteme GmbH Installation Manual 2016.08 | V2.1 | DOC...
  • Page 50: Recovering The Unit

    The storage equipment is shipped with an original manufacturer Service and Support agreement. Bosch RMA Desk is the Single Point of Contact in case of failure but the Service and Support obligations are fulfilled by the manufacturer or a partner.
  • Page 51 The description is also electronically available in the Bosch online product catalogue. Request for RMA Please request an RMA for failed parts from one of the following Bosch RMA contacts. – RMA Contact AMEC Bosch ST, RMA Swapstock, 8601 East Cornhusker Hwy, Lincoln, NE 68507 -USA Phone: +1(402)467-6610 Fax: n.a.
