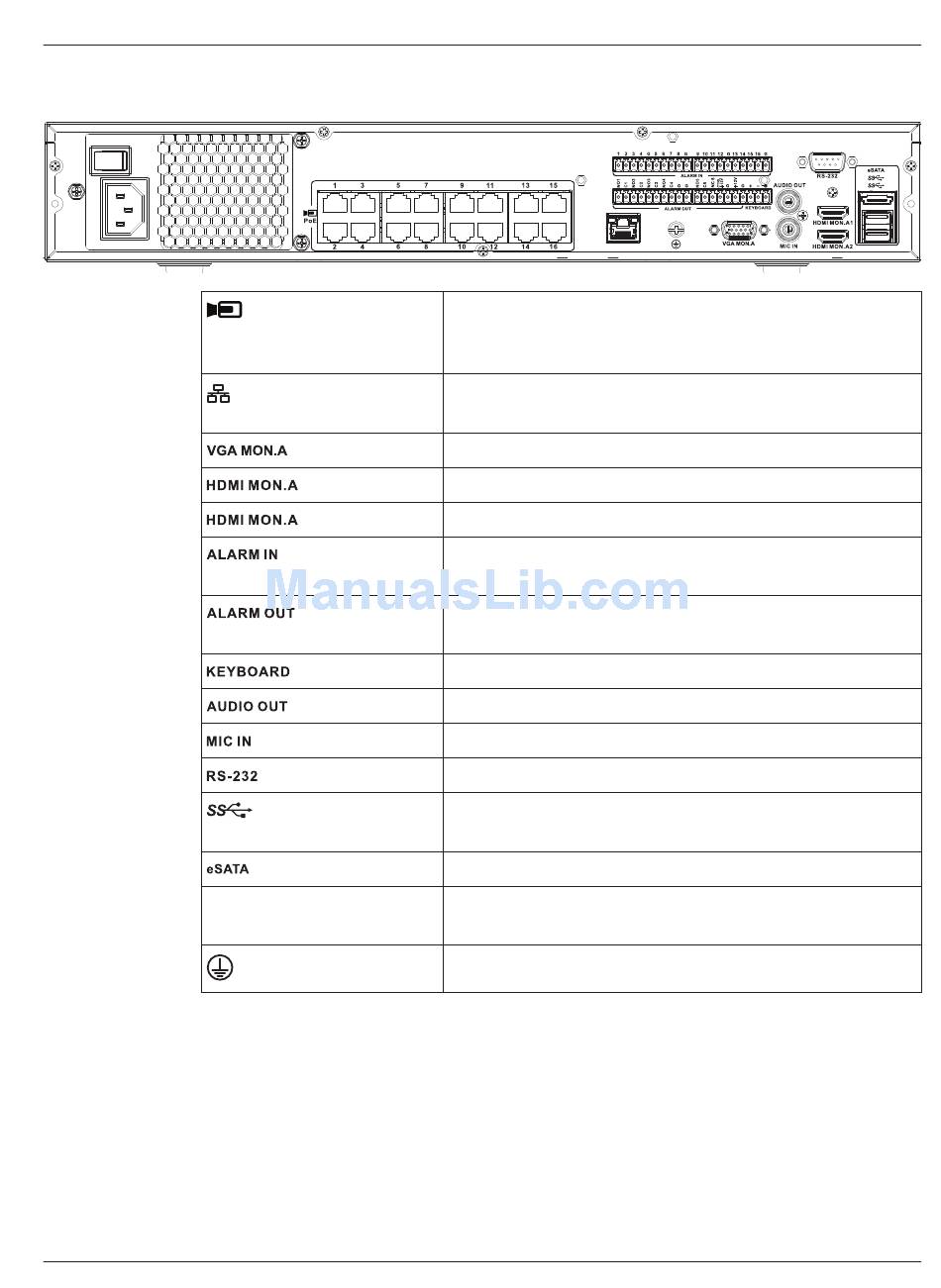

Back panel connectors DIVAR network 5000 (16 PoE)

Power input with On/Off
switch
Bosch Security Systems
PoE
1
2
16 RJ45 ports (200 W; max. 25.5 W per port) for connecting
max. 16 PoE cameras connected with DHCP configuration
(max. 32 IP cameras)
RJ45 Ethernet connection (10/100/1000Base-T according to
IEEE802.3)
1 D-SUB (Monitor output)
1 HDMI (Monitor output in maximum 4k resolution)
1 HDMI (output for spot monitor)
16 screw terminal inputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
6 screw terminal outputs, cable diameter AWG26‑16 (0.13–
1.5 mm)
Screw terminals, cable diameter AWG26‑16 (0.13–1.5 mm)
1 RCA (Audio output)
1 RCA (Audio input)
DB9 male, 9-pin D-type
Two USB (3.0) connectors for mouse or USB memory device;
one USB (2.0) also on front panel
For backup/memory device
100~240 VAC, 50-60 Hz, 5 A, 350 W
Ground connection
Installation Manual
Safety | en
13
2016.08 | v1.0 | AM18-Q0712
