2. Select the pixel coefficient set number from the Set Number drop down box.
You can save or load up to four different sets of pixel coefficients.
3. Click Reset.
The selected pixel coefficient set is now set to zero.

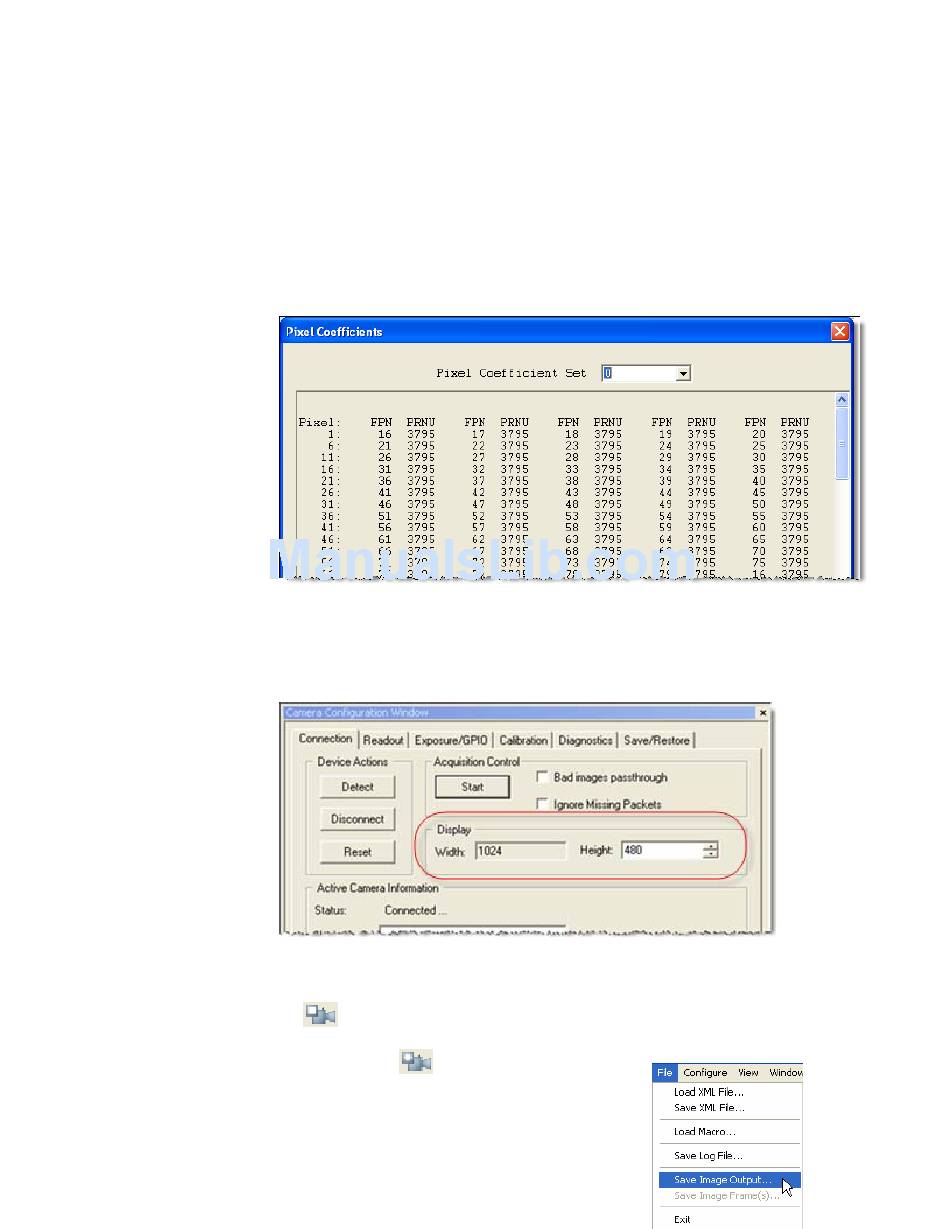

To display pixel coefficients:
1. Choose View → Pixel Coefficients on the menu bar.
2. Select the pixel coefficient set number from the drop down box.
The pixel coefficient set displays.

Saving Images

You can save the contents of the Image Output Window in TIFF format, either as
a single frame, or as a series of frames. You can control the size of the frame
using the Width and Height controls in the Display section of the Connection tab.
Saving a Single Image
To save a single image you must stop acquiring images first (for example, with
the
stopped acquiring (in continuous mode), or an image acquired when you take a
snapshot with the
03-032-10187-04
button). What you save will be either the last image acquired when you
button. To save a single image:
