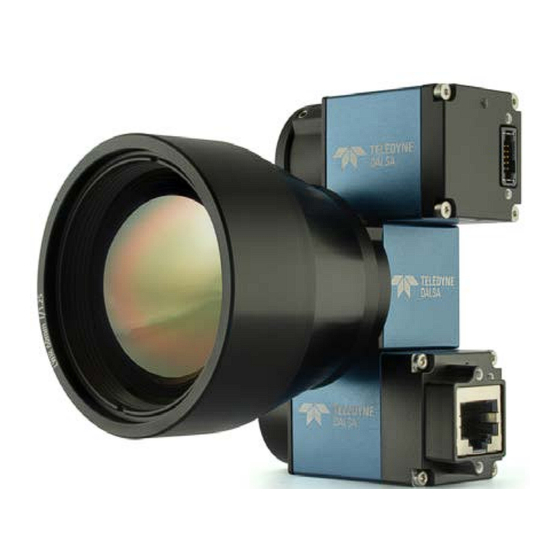

- Page 1 CALIBIR 640 GigE IR Camera User’s Manual sensors | cameras | frame grabbers | processors | software | vision solutions July 10, 2017 P/N: IRACUVM-USER0 www.teledynedalsa.com...
- Page 2 All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.
-
Page 3: Table Of Contents
FEATURES AND CONFIGURATION OPTIONS ..........23 ....................24 INKS ................24 DJUSTING THE OCUS LED I ..................25 NDICATORS Calibir 640 GigE LED States ..............25 ....................26 ENSOR Related GigE Vision Features ..............26 ..............27 IXED ATTERN OISE ORRECTION Performing FPN Correction .............. - Page 4 ISION ATEGORY ............. 77 ISION ONTROL ATEGORY File Access Control Category ..............77 TECHNICAL SPECIFICATIONS ..............80 ................80 ECHANICAL PECIFICATIONS Calibir 640 GigE with M25 Lens Mount ............ 80 4 • Contents Calibir 640 GigE IR Camera User's Manual...
- Page 5 Calibir 640 GigE with M34 Lens Mount ............ 81 ......82 DDITIONAL OTES ON ALIBIR DENTIFICATION AND ECHANICAL ....................82 ONNECTORS 10-pin I/O Connector Details ..............82 Input Signal Electrical Specifications ............83 Power over Ethernet (PoE) Support ............87 EC &...
-
Page 6: Figures
Figure 40: CamExpert File Access Control Category ............77 Figure 41: CamExpert File Access Control Category ............79 Figure 42: Calibir 640 GigE with M25 Lens Mount ............80 Figure 43: Calibir 640 GigE with M34 Lens Mount ............81 Figure 44: Samtec 10-Pin Connector ................ - Page 7 Figure 50: Random Bad Data or Noise Example ............100 Figure 51: Theoretical Ranges for a 1.7 x 0.5m Human Target ........103 Figure 52: Theoretical Ranges for a 2.3 x 2.3m NATO Target ........104 Calibir 640 GigE IR Camera User's Manual Figures • 7...
-
Page 8: Tables
Table 2: Teledyne DALSA Development Software..............12 Table 3: EMI, Shock and Vibration Certifications ..............13 Table 4: Calibir 640 GigE Power Specifications ............... 18 Table 5: CalibirGigE LED States .................... 25 Table 6: Image Display Using Different 8-Bit Ranges .............. 39 Table 7: Image Range Compression Contrast Examples............ -
Page 9: Calibir 640 Series Overview
(PoE). Camera features can be controlled using a GigE Vision compliant software API, such as Teledyne DALSA’s Sapera LT SDK. Within the Sapera LT SDK, we currently offer a generic GigE Vision driver that supports all Teledyne DALSA GigE Vision cameras, including all future Calibir GigE Vision cameras. -
Page 10: Specifications
2.8W (for Calibir 640 Core/AS/AB) 3.1W (for Calibir 640 GigE) 2.5W (for Calibir 640 Core/AS/AB) Power Consumption (peak) 3.4W (for Calibir 640 Core/AS/AB) 3.7W (for Calibir 640 GigE) 10 • Calibir 640 Series Overview Calibir 640 GigE IR Camera User's Manual... - Page 11 (like the sun) will eventually create a ghost-like artifact that can take as much as 48h to dissipate depending on the temperature of the object and time of exposure. Calibir 640 GigE IR Camera User's Manual Calibir 640 Series Overview • 11...
-
Page 12: Export Controls
Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis. Part Numbers For ordering information, contact your Teledyne DALSA sales representative. For Teledyne DALSA sales office details, see the Contact Information section. Lenses For currently supported lenses contact your Teledyne DALSA sales representative. -
Page 13: Emi, Shock And Vibration Certifications
Directions: ±X, ±Y, and ±Z axis C - 70 C (+ 3 50 cycles Thermal Shock Additional information concerning test conditions and methodologies is available on request. Calibir 640 GigE IR Camera User's Manual Calibir 640 Series Overview • 13... -
Page 14: Gige
GigE Vision Interface Calibir 640 GigE Vision cameras comply with the GigE Vision and GenICam standard protocols. GigE Vision Sapera Application Description Calibir cameras are 100% compliant with the GigE Vision 1.0 specification which defines the communication interface protocol used by any GigE Vision device. The device description and capabilities are contained in an XML file. -
Page 15: Gige Network Adapter Overview
Ethernet flow control mechanism to manage network traffic within an Ethernet switch when multiple cameras are simultaneously used. This requires that the flow control option in the NIC property settings and the Ethernet switch settings must be enabled. Refer to the Teledyne DALSA Network Imaging manual. -
Page 16: Software Requirements
Camera features can be controlled using a GigE Vision compliant software API, such as Teledyne DALSA’s Sapera LT SDK. The Sapera LT software suite includes the CamExpert tool that allows for quick configuration and evaluation of all Teledyne DALSA products. As such, it is recommended that users install the latest version of Sapera LT on the host computer for evaluation and development. -
Page 17: Ethernet To Fiber-Optic Interface Requirements
Important: The inclusion in this manual of GigE to fiber-optic converters does not guarantee they will meet specific application requirements or performance. The user must evaluate any supplemental Ethernet equipment. Calibir 640 GigE IR Camera User's Manual Calibir 640 Series Overview • 17... -
Page 18: Quick Start Guide
(FPN) correction. Connecting the Calibir 640 GigE Vision Camera Connecting a Calibir to a network system is similar whether using the Teledyne DALSA Sapera LT package or a third party GigE Vision development package. The computer requires an unused Ethernet Gigabit network interface (NIC). -
Page 19: Calibir 640 Gige Connectors
• Details for connector pin out specifications. The following figure of the Calibir 640 GigE back end shows connector and LED locations (for a description of the possible LED states, refer to the Calibir 640 GigE LED States section). Status Led... -
Page 20: Calibir Ip Configuration Sequence
Preferably, a DHCP server is present on the network, where the Calibir issues a DHCP request for an IP address. The DHCP server then provides the Calibir an IP address. The Teledyne DALSA Network Configuration tool, installed with the Sapera Teledyne DALSA Network Imaging Package, provides a DHCP server which is easily enabled on the NIC used with the Calibir (refer to the Teledyne DALSA Network Imaging user's manual). -
Page 21: Camera Connection Setup
Start CamExpert. The Calibir Status LED will be steady light blue. • • Select the Calibir 640 GigE camera using the Device Selector: Click the Grab button for live acquisition. • Adjust the lens as required (if no lens is available, select a test pattern from the Image Format •... -
Page 22: Changing The Bit Range To Display
Changing the Bit Range to Display Given that the Calibir 640 GigE can output 14-bit images, it can be useful to change the bit range of the display window to view specific pixel ranges that contain relevant image data. To do so, right-click on the display window and select Display Setting…... -
Page 23: Features And Configuration Options
Horizontal Image Flip • • Median Filter Defective Pixel Correction • Adaptive Contrast Enhancement • Internal Test Pattern Generator • Temperature Sensors • Error Log File • Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 23... -
Page 24: Heat Sinks
Basic heat management is achieved by mounting the camera onto a metal structure via its mounting screw holes. Teledyne DALSA recommends that the Calibir camera be mounted using heat sinks to optimize shutterless operation. Refer to the Mechanical Specifications section for information on the exact size and position of the camera mounting holes. -
Page 25: Calibir 640 Gige Led States
LED Indicators The Calibir 640 GigE has one multicolor LED to provide a simple visible indication of camera state conditions. Calibir 640 GigE LED States After the Calibir connects to a network and an IP address is assigned, the Status LED will turn to steady blue. -
Page 26: Sensor Gain
Sensor Gain = 1x Sensor Gain = 3x Figure 5: Sensor Gain Related GigE Vision Features The sensorGain feature controls this setting and is part of the Sensor Control Category. 26 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 27: Fixed Pattern Noise Correction
(normal or high). The FPN correction also supports a dynamic adaptive mode that automatically adjusts the correction progressively with respect to the camera sensor temperature to improve image quality; Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 27... -
Page 28: Performing Fpn Correction
Flat surface with uniform temperature Gap from lens Figure 8: Performing FPN Correction 2. Execute the calibration using the Calibrate FPN Compensation feature, available in the Image Processing category: 28 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... - Page 29 “Adaptive”, which automatically adjusts the FPN correction to the camera ambient temperature. 4. If the FPN results are satisfactory, coefficients can be saved to non-volatile device memory using the Save FPN Calibration feature: Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 29...
-
Page 30: Lens Correction
Figure 9: Lens Correction Related GigE Vision Features The flatfieldCorrectionMode, flatfieldCalibrationFPN, flatfieldCalibrationSave and lensCorrection features control the FPN correction and are part of the Image Processing Category. 30 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 31: Overlays
Overlay Category. Note that only the reticle and ROI overlays support color using the rgb related commands. Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 31... -
Page 32: Metadata
To enable metadate, the ChunkModeActive feature must be set to ON. The feature chunkDataType indicates how that data is transferred on the Ethernet link. These features are part of the Metadata Controls Category category. 32 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 33: Pixel Polarity
Pixel Polarity = White Hot Pixel Polarity = White Cold Figure 11: Pixel Polarity Related GigE Vision Features The pixelPolarity feature is part of the Image Processing Category. Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 33... -
Page 34: Horizontal Image Flip
Note: FPN correction needs to be recalibrated after the horizontal flip has been activated/disabled. Related GigE Vision Features The ReverseX feature controls the horizontal image flip option and is part of the Image Format Controls Category. 34 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 35: Median Filter
Line Profile of Line 1 Line Profile of Line 1 Figure 13: Median Filter Related GigE Vision Features The medianFilterMode feature is part of the Image Processing Category. Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 35... -
Page 36: Defective Pixel Correction
Image Processing Category. Alternatively, an 8-bit .bmp image representing the defective pixel map can be downloaded from or uploaded to the camera using the File Access Control Category features. 36 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 37: Figure 15: File Access Control
The File Access Control dialog in CamExpert provides file access to the User Defect Pixel Map through the Miscellaneous file type category. Figure 15: File Access Control Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 37... -
Page 38: Adaptive Contrast Enhancement
All greater values mapped to 0 (black) in 8-bit output 255 (white) in 8-bit output Range Compression Constrast Limit Value (higher values widen this limit) Figure 16: Range Compression Contrast 38 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 39: Table 6: Image Display Using Different 8-Bit Ranges
Table 6: Image Display Using Different 8-Bit Ranges Original 14-bit image histogram Image Display Using Different 8-Bit Ranges Bit Range = 0-7 Bit Range = 1-8 Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 39... - Page 40 Bit Range = 3-10 Bit Range = 2-9 Bit Range = 4-11 Bit Range = 5-12 Bit Range = 6-13 40 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual...
-
Page 41: Table 7: Image Range Compression Contrast Examples
Average value = 127.08; Standard Deviation = 36.50 Contrast = 50; Limit = 1 Average value = 126.92; Standard Deviation = 47.61 Contrast = 100; Limit = 1 Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 41... - Page 42 Average value = 130.79; Standard Deviation = 92.74 Contrast = 200; Limit = 1 Average value = 129.65; Standard Deviation = 127.24 Contrast = 255; Limit = 1 42 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual...
-
Page 43: Table 8: Image Range Compression Contrast Limit Examples
Contrast = 60; Limit = 60 (Most information contained within a range of ~25 pixels) Contrast = 255; Limit = 1 Contrast = 255; Limit = 25 Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 43... - Page 44 Contrast = 255; Limit = 50 Contrast = 255; Limit = 100 Contrast = 255; Limit = 150 44 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual...
-
Page 45: Related Gige Vision Features
Contrast = 255; Limit = 255 Related GigE Vision Features The rangeCompressionContrast, rangeCompressionContrastLimitMode and rangeCompressionContrastLimit features control the range compression and are part of the Image Processing Category. Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 45... -
Page 46: Internal Test Pattern Generator
Vertical Stripes: Pixels alternate along the x-axis between the darkest possible value to the • brightest. Figure 20: Vertical Stripes 46 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 47: Related Gige Vision Features
Figure 21: Alignment Pattern Related GigE Vision Features For the Calibir 640 GigE, the TestImageSelector feature select the test pattern to output; for complete feature descriptions refer to the Image Format Controls Feature Description. Calibir 640 GigE IR Camera User's Manual... -
Page 48: Temperature Sensors
• future designs) Related GigE Vision Features The DeviceTemperatureSelector,DeviceTemperature and temperatureUnits features are used to read the temperature sensors and are part of the Camera Information Category. 48 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 49: Error Log File
“Miscellaneous” file type and “Error Log” as the file. Figure 22: File Access Control Dialog Writing 1 to the crashLogReset feature clears; for complete feature descriptions refer to the Camera Information Category. Calibir 640 GigE IR Camera User's Manual Features and Configuration Options • 49... -
Page 50: False Color Mapping
Overlays section). Figure 24: Color Map Range Overlay Related GigE Vision Features The PixelFormat feature enables a color map when set to YUYV. 50 • Features and Configuration Options Calibir 640 GigE IR Camera User's Manual... -
Page 51: Operational Reference
Operational Reference Using a Calibir 640 GigE Camera with Sapera API A Calibir camera installation with the Teledyne DALSA Sapera API generally follows the sequence described below. Network and Computer Overview Calibir GigE needs to connect to a computer with a GigE network adapter, either built in on the computer motherboard or installed as a third party PCI adapter. -
Page 52: Installing Sapera Lt
Refer to Sapera LT User’s Manual concerning application development with Sapera. Note: The Teledyne DALSA Sapera CamExpert tool (used throughout this manual to describe Calibir GigE features) is installed with either the Sapera LT runtime or the Sapera LT development package. -
Page 53: Gige Server Verification
IP address and device MAC address. The screen shot below shows a connected Calibir GigE with no networking problems. Calibir 640 GigE IR Camera User's Manual Operational Reference • 53... -
Page 54: Optimizing The Network Adapter Used With Calibir Gige
Format Controls – Test Image Selector). All but two are static images to use with the Snap or Grab function of CamExpert. The pattern named “Constant, incrementing, fast” is useful for testing network/computer bandwidth issues. Refer to the Teledyne DALSA Network Imaging package manual if error messages are shown in • the Output Messages pane while grabbing. -
Page 55: About The Device User Id
When using CamExpert, multiple Calibir GigE cameras on the network are seen as different "Calibir GigE-xxxxx" devices as an example. Non Teledyne DALSA cameras are labeled as “GigEVision Device”. Click on a device user name to select it for control by CamExpert. -
Page 56: Table 10: Camexpert Display Pane Control Buttons
100%. This does not affect the acquisition. Histogram / Profile tool: Select to view a histogram or line/column profile during live acquisition. Output pane: Displays messages from CamExpert or the GigE Vision driver. • 56 • Operational Reference Calibir 640 GigE IR Camera User's Manual... -
Page 57: Figure 29: Sapera Camexpert Gui Layout
Figure 29: Sapera CamExpert GUI Layout Calibir 640 GigE IR Camera User's Manual Operational Reference • 57... - Page 58 Parameters in gray are read only, either always or due to other feature settings. Parameters in black are user set in CamExpert or programmable via an imaging application. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications.
-
Page 59: Amera Nformation Ategory
GigE Vision applications retrieve this information to identify the camera along with its characteristics. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications. - Page 60 Calibir 640 AS with Samtec 10-pin connector. Connector) Analog (BNC Connector) AnalogBNC Calibir 640 AB with BNC connector. GigE Vision GigE Calibir 640 GigE with RJ-45 ethernet connector. Unknown Unknown Unknown camera backend. Native Sensor Frame Rate calibrationFrameRate Displays the calibrated frame rate, in frames per Beginner second (fps).
- Page 61 User Set Selector feature. The user sets are located on the camera in non-volatile memory. (W) Device Reset DeviceReset Resets the device to its power up state. (W) Beginner Calibir 640 GigE IR Camera User's Manual Operational Reference • 61...
-
Page 62: Power-Up Configuration Dialog
Power-up Configuration Dialog CamExpert provides a dialog box which combines the features to select the camera power-up state and for the user to save or load a Calibir GigE camera state. 62 • Operational Reference Calibir 640 GigE IR Camera User's Manual... -
Page 63: Figure 31: Power-Up Configuration Dialog
(see feature UserSetSelector). To reset the camera to the factory configuration, select Factory Setting and click Load. To save a current camera configuration, select User Settings and click Save. Select User Settings and click Load to restore a saved configuration. Calibir 640 GigE IR Camera User's Manual Operational Reference • 63... -
Page 64: Sensor Control Category
Table 12 describes these features along with their view attribute. Additionally the View column will indicate which feature is a member of the DALSA Features Naming Convention (indicated by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). -
Page 65: I/O Controls Category
Table 12 describes these features along with their view attribute. Additionally the View column will indicate which feature is a member of the DALSA Features Naming Convention (indicated by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). -
Page 66: External Trigger Input Timing
External Trigger Input Timing Calibir 640 GigE camera sensors support an external trigger input for frame acquistion. The trigger is asserted on the rising edge of the voltage transition. External signals are isolated by an opto- coupler input with a time programmable debounce circuit. The Input Line Debouncing feature specifies the minimum length of time the trigger must be held high to be considered a valid trigger (triggers shorter than the minimum input debounce time are ignored). -
Page 67: Figure 34: External In Controls Category
External rising edge active Trigger External Trigger debounced debounce debounce debounce debounce debounce Frame Timestamp Frame acquisition trig-to-acq Figure 34: External In Controls Category Calibir 640 GigE IR Camera User's Manual Operational Reference • 67... -
Page 68: Image Format Controls Category
Table 14 describes these features along with their view attribute. Additionally the view column will indicate which feature is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). - Page 69 When the TestImageSelector feature is set to Constant, this Beginner feature sets the pixel value to fill the image with. DFNC Image Flip Horizontal ReverseX Enables/disables the horizontal image flip operation. Beginner Calibir 640 GigE IR Camera User's Manual Operational Reference • 69...
-
Page 70: Metadata Controls Category
Metadata Controls Category The Calibir 640 GigE Metadata Controls, as shown by CamExpert, groups features to enable and select inclusion of chunk data with the image payload (as specified by the specification GigE Vision 1.2). Figure 36: CamExpert Metadata Controls Metadata Controls Feature Descriptions Table 14 describes these features along with their view attribute. -
Page 71: Image Processing Category
Table 16 describes these features along with their view attribute. Additionally the view column will indicate which feature is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). - Page 72 (51 x 51 neighborhood). Defective pixels defectivePixelAutoDetectionThreshold Sets the threshold, as the number of standard Guru threshold deviations from the neighborhood average, for a DFNC pixel to be considered defective. 72 • Operational Reference Calibir 640 GigE IR Camera User's Manual...
-
Page 73: Overlay Category
Overlay Feature Descriptions Table 17: Overlay Feature Descriptions describes these parameters along with their view attribute. Additionally the View column indicates which parameter is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). -
Page 74: Features That Cannot Be Changed During A Transfer
Features Locked During a Sapera Transfer CAMERA INFORMATION UserSetLoad SENSOR CONTROL IMAGE FORMAT CONTROL PixelFormat GIGE VISION TRANSPORT LAYER CONTROL GevSCPSPacketSize GIGE VISION HOST CONTROL InterPacketTimeout InterPacketTimeoutRaw ImageTimeout FILE ACCESS CONTROL 74 • Operational Reference Calibir 640 GigE IR Camera User's Manual... -
Page 75: Figure 39: Camexpert Gige Vision Category
Table 18 describes these parameters along with their view attribute. Additionally the View column indicates which parameter is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). - Page 76 Gev Major Version GevVersionMajor Major version of the specification. Expert Gev Minor Version GevVersionMinor Minor version of the specification. Expert Device Mode Is Big Endian GevDeviceModeIsBigEndian Endianess of the device registers. 76 • Operational Reference Calibir 640 GigE IR Camera User's Manual...
-
Page 77: File Access Control Category
The File Access control in CamExpert allows the user to quickly upload various data files to the connected Calibir GigE. The supported data files are for firmware updates, etc. Features listed in the description table but tagged as Invisible are usually for Teledyne DALSA or third party software usage—not typically needed by end user applications. -
Page 78: Table 19: File Access Control Feature Descriptions
Table 19 describes these parameters along with their view attribute. Additionally the View column indicates which parameter is a member of the DALSA Features Naming Convention (denoted by DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag is not shown). -
Page 79: Figure 41: Camexpert File Access Control Category
Select the specific file from the system drive or from a network location. Firmware files have a • .CBF extension. Click the Upload button to execute the file transfer to the Calibir GigE. • Reset the Calibir GigE when prompted. • Calibir 640 GigE IR Camera User's Manual Operational Reference • 79... -
Page 80: Technical Specifications
Technical Specifications Mechanical Specifications Calibir 640 GigE with M25 Lens Mount Figure 42: Calibir 640 GigE with M25 Lens Mount 80 • Technical Specifications Calibir 640 GigE IR Camera User's Manual... -
Page 81: Calibir 640 Gige With M34 Lens Mount
Calibir 640 GigE with M34 Lens Mount Figure 43: Calibir 640 GigE with M34 Lens Mount Calibir 640 GigE IR Camera User's Manual Technical Specifications • 81... -
Page 82: Onnectors
Teledyne DALSA provides an open-ended breakout cable. If other mating cables are required, ensure that cables are compatible with this connector: Samtec Part Number TFM-110-02-L-D-LC. Teledyne DALSA makes available optional I/O cables as described in I/O Mating Connector Sources. Contact Sales for availability and pricing. -
Page 83: Input Signal Electrical Specifications
Absolute Maximum DC Power Supply Range before Possible Device Failure Input Voltage –58 Volt DC +58 Volts DC Input Signal Electrical Specifications External InputsBlock Diagram Current Input 0 (pin 4) Protection Limiter Common Ground (pin 7) Calibir 640 GigE IR Camera User's Manual Technical Specifications • 83... - Page 84 External Input maximum current is limited by the Calibir circuits to a maximum of 8mA. • Camera IO Interface LVTTL / TTL Push-Pull Buffer User IO (Common Ground) Power Imax = 8mA ( Input 0 ) External Signal 0 84 • Technical Specifications Calibir 640 GigE IR Camera User's Manual...
- Page 85 External Input maximum current is limited by the Calibir circuits to a maximum of 8mA. • Camera IO Interface User IO ( Common Ground ) Power (3V-35V) Imax = External Signal ( Input 0 ) User IO Ground Calibir 640 GigE IR Camera User's Manual Technical Specifications • 85...
- Page 86 External Input: Using a Balanced Driver Camera IO Interface RS-422 Compatible ( Common Ground ) Transmitter ( Input 1 ) External Signal 0 86 • Technical Specifications Calibir 640 GigE IR Camera User's Manual...
-
Page 87: Power Over Ethernet (Poe) Support
Power over Ethernet (PoE) Support The Calibir 640 GigE requires a PoE Class 0 or Class 1 (or greater) power source for the • network if not using a separate external power source connected to pins 1 & 2 of the camera’s I/O Connector. -
Page 88: Ec & Fcc Declarations Of Conformity
EC & FCC Declarations of Conformity 88 • Technical Specifications Calibir 640 GigE IR Camera User's Manual... - Page 89 Calibir 640 GigE IR Camera User's Manual Technical Specifications • 89...
-
Page 90: Dditional Eference Nformation
Additional Reference Information I/O Mating Connector Sources Teledyne DALSA provides optional I/O cable assemblies for Calibir. Users wishing to build their I/O cabling by starting from available cable packages should consider these popular assemblies described below. Contact Sales for pricing and delivery. -
Page 91: Cable Assembly G3-Aioc-Blunt2M
Cable Assembly G3-AIOC-BLUNT2M Open-ended cable assembly to connect to Samtec 10-pin connector, with thumbscrews. Figure 45: Cable Assembly G3-AIOC-BLUNT2M Figure 46: Cable Assembly G3-AIOC-BLUNT2M Mechanical Drawing Calibir 640 GigE IR Camera User's Manual Technical Specifications • 91... -
Page 92: Cable Assembly G3-Aioc-Brkout2M
Cable Assembly G3-AIOC-BRKOUT2M Cable with terminal block breakout to connect to the Samtec 10-pin connector, with thumbscrews. Figure 47: Cable Assembly G3-AIOC-BRKOUT2M Figure 48: Cable Assembly G3-AIOC-BRKOUT2M Mechanical Drawing 92 • Technical Specifications Calibir 640 GigE IR Camera User's Manual... -
Page 93: Ruggedized Rj45 Ethernet Cables
All cables made in (tested for near end / far end crosstalk and return loss). U.S.A. – all cables IGE-3M (3meters) RoHS compliant. IGE-10M (10meters) IGE-25M (25meters) IGE-50M (50meters) IGE-100M (100meters) Calibir 640 GigE IR Camera User's Manual Technical Specifications • 93... -
Page 94: Sensor
Condensation, even when left to dry naturally, will deposit more particles on the sensor. When compressed air cannot clean the sensor, Teledyne DALSA recommends using lint-free • ESD-safe cloth wipers that do not contain particles that can scratch the window. The Anticon Gold 9”x 9”... -
Page 95: Troubleshooting
Network Configuration Tool (distributed with Sapera LT as part of the Sapera Network Imaging Package) to configure the Network Interface Card (NIC). The Network Configuration Tool displays the available NICs: Calibir 640 GigE IR Camera User's Manual Troubleshooting • 95... - Page 96 GigE Vision Device Status in the system tray, the number of available devices should be shown: Double-click the camera icon to show the GigE Vision Device Status window. The Calibir camera should be listed: 96 • Troubleshooting Calibir 640 GigE IR Camera User's Manual...
-
Page 97: Error Log File
Test Pattern Generator section for information on using CamExpert to select internal patterns from Calibir. Calibir 640 GigE Troubleshooting The following sections contain troubleshooting information specific to the Calibir 640 GigE camera related to its network interface. GigE Server Status The GigE Server status provides visual information on possible Calibir GigE problems. -
Page 98: Problem Type Summary
In multiple NIC systems where the NIC for the Calibir is using LLA mode, ensure that no • other NIC is in or switches to LLA mode. It is preferable that the Teledyne DALSA DHCP server is enabled on the NIC used with the Calibir instead of using LLA mode, which prevents errors associated with multiple NIC ports. - Page 99 • When using multiple cameras connected to an VLAN Ethernet switch, confirm that all cameras are on the same subnet setup on that switch. See the Teledyne DALSA Network Imaging package manual for more information. . If a Calibir camera installed with other GigE Vision cameras cannot connect properly with •...
-
Page 100: Acquisition Error Without Timeout Messages
Verify Ethernet link speed. If the LAN connection is limited to 100 Mbps, the Calibir frame • rate maximum will be limited once the internal buffers are filled. See the Teledyne DALSA Network Imaging manual for information on network optimizations. -
Page 101: Cabling And Communication Problems
CamExpert generating an interrupt for each acquired frame. The Sapera Grab Demo may be better suited for testing at higher frame rates. Verify that network parameters are optimal as described in the Teledyne DALSA Network • Imaging Module manual. Ensure the host computer is not executing other network intensive tasks. -
Page 102: Verifying Network Parameters
Carefully review the issues described in this Troubleshooting section. To aid Teledyne DALSA personnel when support is required, the following should be included with the request for support. From the Start menu, go to Programs • Dalsa • Sapera LT • Tools and run the Log Viewer •... -
Page 103: Appendix: Range Performance
However, these measurements are theoretical and are not guaranteed performance metrics. Theoretical ranges for a 1.7 x 0.5m Human Target Figure 51: Theoretical Ranges for a 1.7 x 0.5m Human Target Calibir 640 GigE IR Camera User's Manual Appendix: Range Performance • 103... -
Page 104: Theoretical Ranges For A 2.3 X 2.3M Nato Target
Theoretical Ranges for a 2.3 x 2.3m NATO Target Figure 52: Theoretical Ranges for a 2.3 x 2.3m NATO Target 104 • Appendix: Range Performance Calibir 640 GigE IR Camera User's Manual... -
Page 105: Contact Information
Submit any support question or request via our web site: Technical support form via our web page: Support requests for imaging product installations, Support requests for imaging applications http://www.teledynedalsa.com/imaging/support/ Camera support information Product literature and driver updates Calibir 640 GigE IR Camera User's Manual Contact Information • 105...
