Ascom d41 DECT Handset
2.

Descriptions

1
2
3
4
5

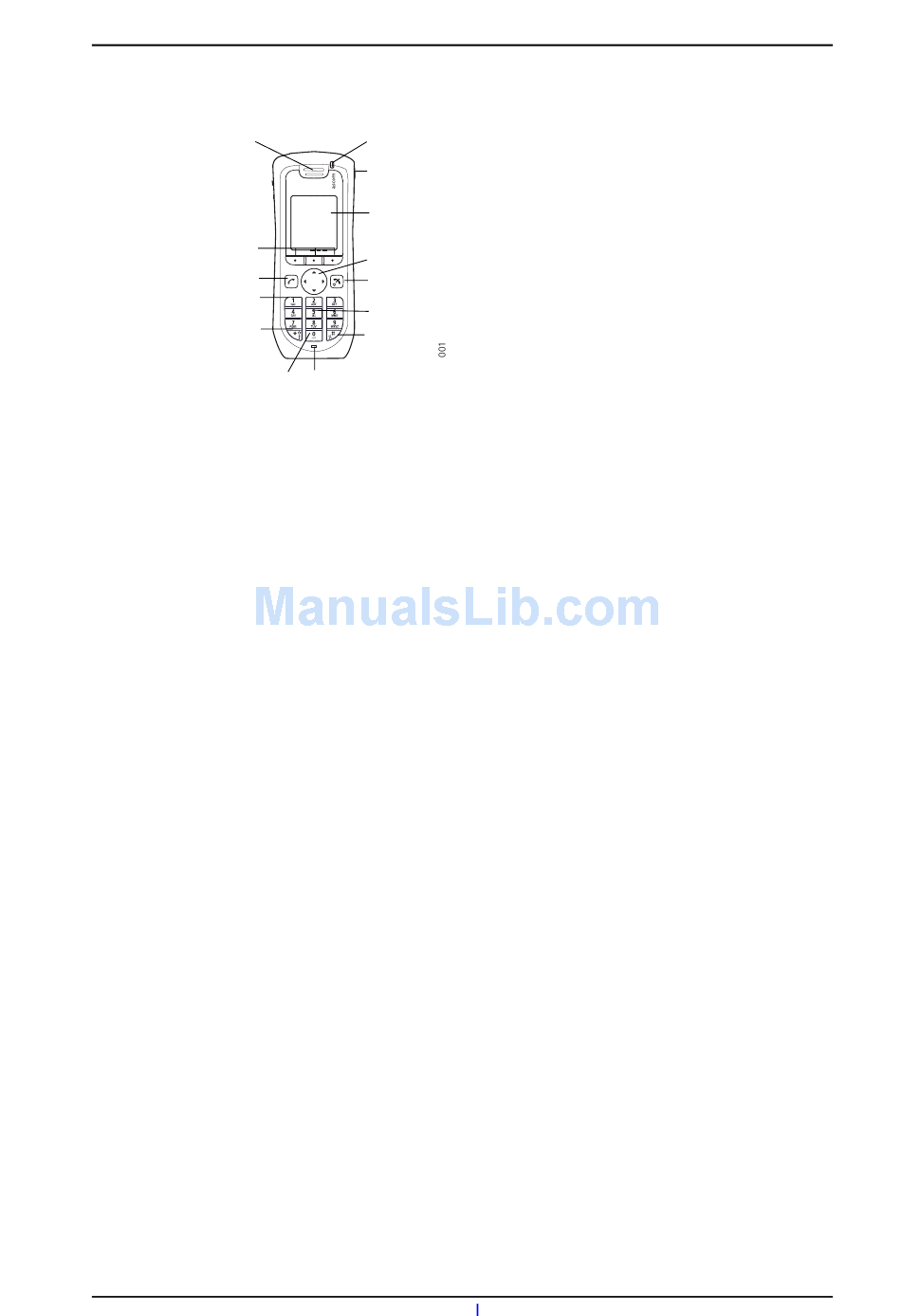

Figure 1. Description of the Handset d41
1 Earpiece speaker
2 Soft keys
The 3 Soft keys is used with GUI, that is, the functions of each Soft key is indicated
by text in the display just above the keys.
3 Off-hook key
To answer a call, to pre-dial a number, and as a short cut to the Call list.
4 Voice mail access*
A quick access to the handset's Voice mail.
5 Key lock and Upper/Lower case
Combined key lock and Upper/Lower Case.
6 Space
To add space between text.
7 Microphone
8 Sound off key
To turn on/off audible signals in idle mode, silencing the ring signal at incoming
call, and to turn the microphone on/off during a call.
9 Tactile indicators
There are two tactile indicators to indicate the centre of the key pad.
10 On-hook and On/Off key
Combined button; to end a call, to return to standby mode, and to switch the
handset on/off by long press.
11 Four-way navigation key
Navigation key with Left, Right, Up, and Down.
During a call, the keys Up and Down are used to increase and decrease the
speaker volume, respectively.
12 Display
The B/W display is 28 mm wide and 35 mm high with backlighting.
13 Headset connector
The headset connector is for connecting a headset. The connector is protected
against dust by using the headset connector cover.
14 LED
Indicates incoming call, messaging, low battery, and charging.
*System dependent feature
30 April 2013 / Ver. I
14
13
12
11
10
9
8
6
7
TD 92582EN
3
