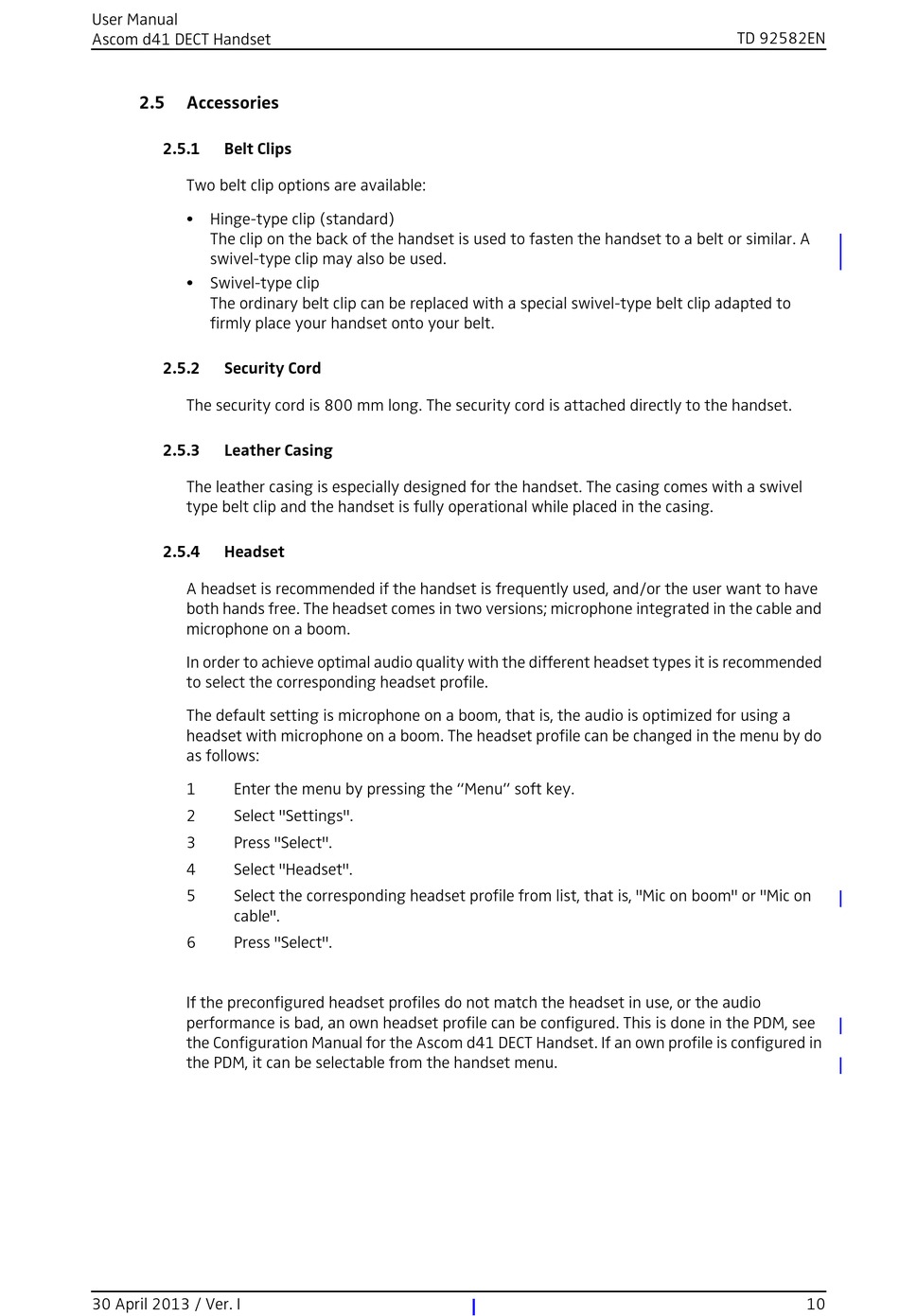

Accessories; Belt Clips; Security Cord; Leather Casing - ASCOM d41 User Manual

User Manual
Ascom d41 DECT Handset
2.5

Accessories

2.5.1

Belt Clips

Two belt clip options are available:
• Hinge-type clip (standard)
The clip on the back of the handset is used to fasten the handset to a belt or similar. A
swivel-type clip may also be used.
• Swivel-type clip
The ordinary belt clip can be replaced with a special swivel-type belt clip adapted to
firmly place your handset onto your belt.
2.5.2

Security Cord

The security cord is 800 mm long. The security cord is attached directly to the handset.
2.5.3

Leather Casing

The leather casing is especially designed for the handset. The casing comes with a swivel
type belt clip and the handset is fully operational while placed in the casing.
2.5.4

Headset

A headset is recommended if the handset is frequently used, and/or the user want to have
both hands free. The headset comes in two versions; microphone integrated in the cable and
microphone on a boom.
In order to achieve optimal audio quality with the different headset types it is recommended
to select the corresponding headset profile.
The default setting is microphone on a boom, that is, the audio is optimized for using a
headset with microphone on a boom. The headset profile can be changed in the menu by do
as follows:
1 Enter the menu by pressing the "Menu" soft key.
2 Select "Settings".
3 Press "Select".
4 Select "Headset".
5 Select the corresponding headset profile from list, that is, "Mic on boom" or "Mic on
cable".
6 Press "Select".
If the preconfigured headset profiles do not match the headset in use, or the audio
performance is bad, an own headset profile can be configured. This is done in the PDM, see
the Configuration Manual for the Ascom d41 DECT Handset. If an own profile is configured in
the PDM, it can be selectable from the handset menu.
30 April 2013 / Ver. I
TD 92582EN
10
