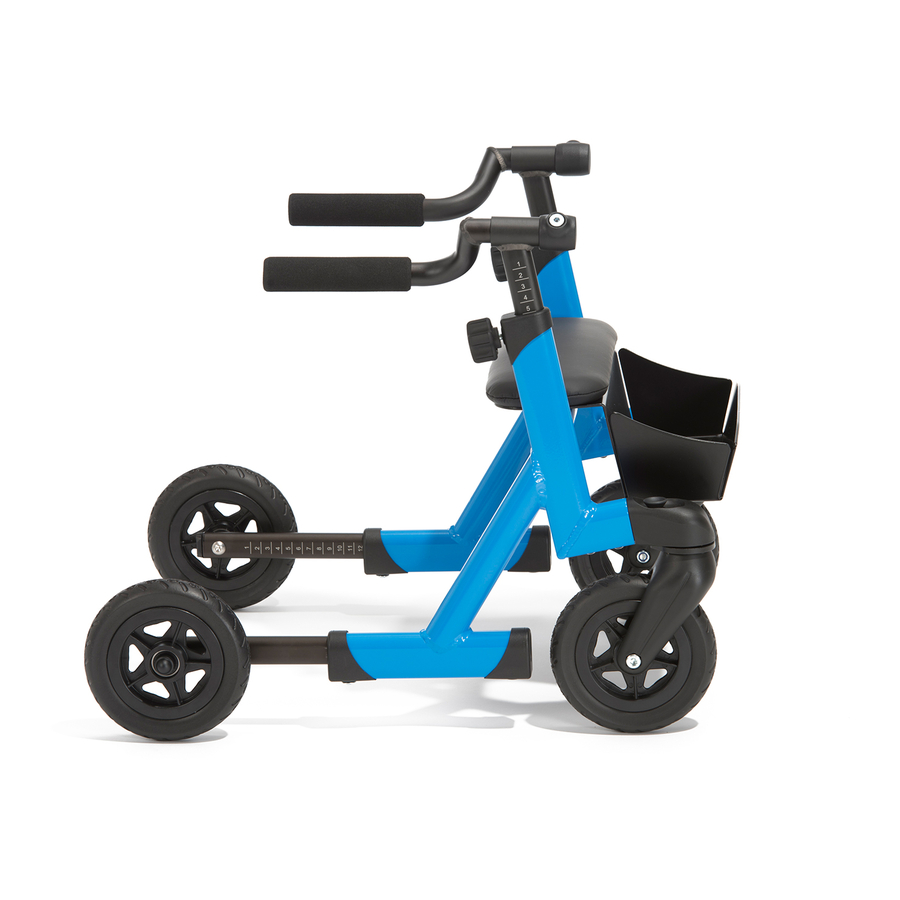

- Page 1 Instructions for use. marcy. The anterior walking aid for more independence and mobility.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................... 05 1.1 Delivery ..........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal .......................05 1.3.1 Packaging ......................05 1.3.2 Product ........................05 1.4 Where to store the Instructions for use ............05 2. Product description............... 06 2.1 Material information ....................06 2.2 Handling / transport ....................06 2.3 Application areas, use according to the intended purpose .....06 2.3.1 Indications ......................06... - Page 4 Contents. 6. Technical data................18 7. Guarantee..................18 8. Identification................19 8.1 EU Declaration of Conformity ................19 8.2 Serial number / date of manufacture ............20 8.3 Product version ......................20 8.4 Issue of the document ..................20 8.5 Name and address of the manufacturer, specialist dealer sup- plying the product ....................20...
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Inst- ructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version atwww. schuchmann.de... -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose The marcy. anterior walking aid is a medical product of risk class 1 and was designed for users to compensate for the reduced resistance or capability of the lower extremities using strength / support by the upper extremities (if applicable also the torso). -
Page 7: Contraindications
• Hanging on heavy bags or other items can negatively influence the stability. • Use only accessories and spare parts made by Schuchmann, otherwise you will compromise the safety of the user. • Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Friction brake • Lower armrests with handles • Shelf basket • Lower armrests with grip balls • Direction locks • Seat • Telescopic wheelbase • Parking handbrake • Backwards stop 2.7 Product overview The Fig. -
Page 9: Application Instructions
(for size 2+3). Set the parking brake and/or friction brake so that the walking aid cannot roll away. Adapt marcy. to the dimensions of the user by adjusting the height and width of the handles so that the user's elbows are slightly bent. -
Page 10: Settings
4. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 11: Direction Locks (Optional)
4. Settings. 4.2 Direction locks (optional) It is possible to drive straight ahead by locking the guide wheels. To re- lease the guide wheels lock, pull the direction lock (A) gently upwards and turn it a quarter turn to the left or right. The guide wheels can now move freely and allow independent steering. -
Page 12: Bench (Optional)
4. Settings. 4.5 Bench (optional) The bench is padded and covered. It is permanently mounted to the frame and includes a back strap. 4.6 Storage basket (optional) The storage basket is permanently mounted to the frame and offers space for toys, drinks or similar items. The maximum load of the basket for size 0 + 1 of 8 kg must not be exceeded! The maximum load of the basket for size... -
Page 13: Forearm Rests (Optional)
4. Settings. 4. Settings. 4.7 Forearm rests (optional) The forearm rests can be equipped with a handle or grip ball. They can be adjusted in depth, height, angle and inclination. Depth adjustment Loosen the cylinder head screw with inner hexagon (A) beneath the lower armrest. -
Page 14: Folding / Unfolding The Frame
Turn the locking bolt (C) by half a turn forwards until it is held in place by the catch. 4.11 Telescopic wheelbase (optional) marcy. offers the opportunity to adjust the wheelbase and therefore increase the sup- port area to the back. This is how the patient's body centre of gravity shifts within the support area of the anterior-walker. -
Page 15: Cleaning And Servicing
Please also pay attention to top cloth/dessus: our general cleaning and hygiene advice. This can be 100% Polyester found at www.schuchmann.de/mediathek. 5.1.2 Disinfection Various products can be used for surface disinfection of wood, metal and plastic parts. -
Page 16: Maintenance Specifications
5. Cleaning and maintaining. 5.3.1 Maintenance specifications • Basic cleaning according to manufacturer instructions (see Point 5.1.1) • If necessary, disinfection according to manufacturer instructions (see Point 5.1.2) • Damages to the frame, mounting parts and accessories (cracks, breaks, corrosion, bent or missing parts) •... -
Page 17: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty ex- pires. Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the thera- py chair (see Point 8.5). -
Page 18: Technical Data
6. Technical data. Dimensions Size 0 Size 1 Size 2 Size 3 Handle height 30 - 47 cm 38 - 59 cm 53 - 75 cm 63 - 88 cm Height of forearm supports 41 - 58 cm 49 - 70 cm 63 - 85 cm 73 - 98 cm Handle spacing... -
Page 19: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 20: Serial Number / Date Of Manufacture
Product labelling in accordance with MDR 8.3 Product version The marcy. anterior walking aid is available in four sizes and can be supple- mented through a diverse range of accessories (see Point 2.5). Each size is also available as telescopic version.
