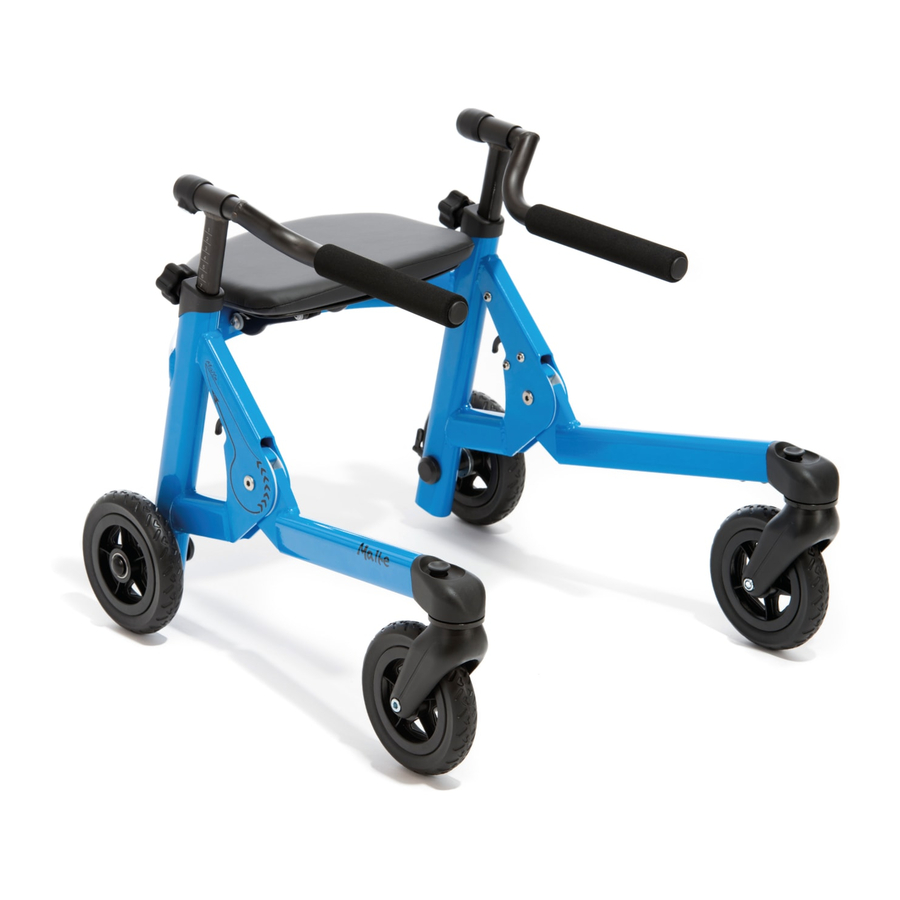

Schuchmann Malte User Manual
Compact and versatile posterior walking aids
Hide thumbs
Also See for Malte:
- Instructions for use manual (28 pages) ,
- Instructions for use manual (20 pages) ,
- Instructions for use manual (18 pages)
Related Manuals for Schuchmann Malte
Summary of Contents for Schuchmann Malte
- Page 1 & malte outdoor. Instructions for use. malte. & malte outdoor. The compact and versatile posterior walking aids.
- Page 2 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation..................05 1.1 Delivery ........................05 1.2 Safety measures prior to use ................05 1.3 Safe disposal ......................05 1.3.1 Verpackung.................... 05 1.3.2 Product ....................05 1.4 Where to store the Instructions for use ............. 05 2. Product description................06 2.1 Material information .................... - Page 4 Contents. 7.2 Serial number / date of manufacture ............23 7.3 Product version .......................23 7.4 Issue of the document ..................23 7.5 Name and address of the manufacturer, specialist dealer supplying the product ............23...
-
Page 5: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. -
Page 6: Product Description
2.3 Application areas, use according to the intended purpose Indications malte. malte outdoor. The posterior walker have been designed for children and teenagers to compensate for reduced strength or ability of the lower extremities using force/support from the upper extremities (possibly also the torso). -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Guidelines
• The product may not be used without supervision. malte. • may only be used indoors on solid, even ground. Please use the malte outdoor. for outdoor areas. • The max. height adjustment is specified by a marking - no settings may be made beyond this range. • Please observe point 5 „Technical data“ in these Instructions for use for the maximum permitted patient weight. -
Page 8: Product Overview
2. Product description. 2.7 Product overview The figures below are intended to show you the designation of the most important components as well as the terms which you will find in these Instructions for use. Lower armrests with handles Combined pelvis and buttocks pelotte pads Bench Lightweight, folding... -
Page 9: Settings
Klick! dible click. Klick! The frame of the malte. size 0 mini cannot be folded down! It is essential that hinges lock back in when unfolding! For malte. size 4 another safety pin... -
Page 10: Handles
3. Einstellungen. 3.2 Handles The handles can be individually adjusted in height and width for adjustment to individual body size. 3.2.1 Handle height adjustment To adjust the height, please loosen the star handles (A), bring the handles into the required position and then re-tigh- ten the star handles. -
Page 11: Direction Locks
3.4 Combined pelvis and buttocks pelotte pads malte. malte outdoor. (optional for The combined pelvis and buttocks pelotte pad is padded with PU and helps the user straighten up when walking. It can be adjusted in height, depth, width and angle and can also be swung away to the back. -
Page 12: Storage Basket
After each adjustment, please re-tighten all screw connections! 3.5 Storage basket malte. malte.outdoor. (optional for The storage basket can be used to transport small objects and improves the look of the posterior walker. The storage basket has a fixed shape and cannot be adjusted. -
Page 13: Tip Protector
Simply lift the bench gently and fold it backwards. Simply fold it back down to the use the bench again. You cannot affix a bench to the malte. mini size 0! Please note the maximum load (see point 5)! -
Page 14: Lower Armrests
3. Einstellungen. 3.8 Lower armrests malte. (optional for The lower armrests can be equipped with a handle or grip ball. They can be adjusted in depth, height, angle and inclination. Depth adjustment Loosen the cylinder head screw with inner hexagon (A) beneath the lower armrest. -
Page 15: Handle / Grip Ball For Lower Armrests
After each adjustment, please re-tighten the lock nut! 3.11 Parking brake malte. (optional for malte outdoor. the parking handbrake is included in the basic model. Against uninten- tionally rolling away and for a secure footing the posterior walker can be equipped with a parking handbrake. -
Page 16: Bar
Swinging the bar away Pull the locking bolts (F) out and swing the bar away to the side. A bar cannot be used for malte sizes 0 + 4 and in combination with lower armrests (see point 3.8)! After each adjustment, please re-tighten all screw connections! -
Page 17: Deflector
The deflec- tor is premounted and cannot be ad- justed. 3.14 Backwards stop malte outdoor. (optional for Due to the fact that children sometimes instinctively want to let themselves fall malte. backwards, is equipped with backward locks as standard and the- refore gives optimum support. -
Page 18: Repairs And Cleaning
Please also pay atten- www. tion to our general cleaning and hygiene advice. You can find them at schuchmann.de/malte Do not use aggressive cleaning agents such as solvents, hard brushes etc. 4.2 Repairs Please carry out a daily visual inspection and check the respective posterior walker regularly for cracks, breaks, missing parts and malfunctions. -
Page 19: Technical Data
5. Technical data. Dimensions - malte. basic model Size 0* Size 1 Size 2 Size 3 Size 4 29 - 53 Handle height 34 - 58 cm 51 - 75 cm 68 - 94 cm 87 - 113 cm Height of lower arm-... - Page 20 5. Technical data. Dimensions - malte outdoor. basic model Size 1 Size 2 Size 3 Handle height 34 - 58 cm 51 - 75 cm 68 - 94 cm Height of lower arm- 46 - 70 cm 63 - 87 cm...
-
Page 21: Guarantee
6. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time pe- riod, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 22: Identification
7. Identification. 7.1 EC declaration of conformity Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classified as product class 1 malte. - Page 23 Both can be supplemented through a diverse range of acces- sories (see point 2.6). 7.4 Issue of the document malte. & malte outdoor. Instructions for use - Change status C; Issue 09.2018 7.5 Name and address of the manufacturer,...
- Page 24 schuchmann.de...
