Summary of Contents for Schuchmann madita-fun mini

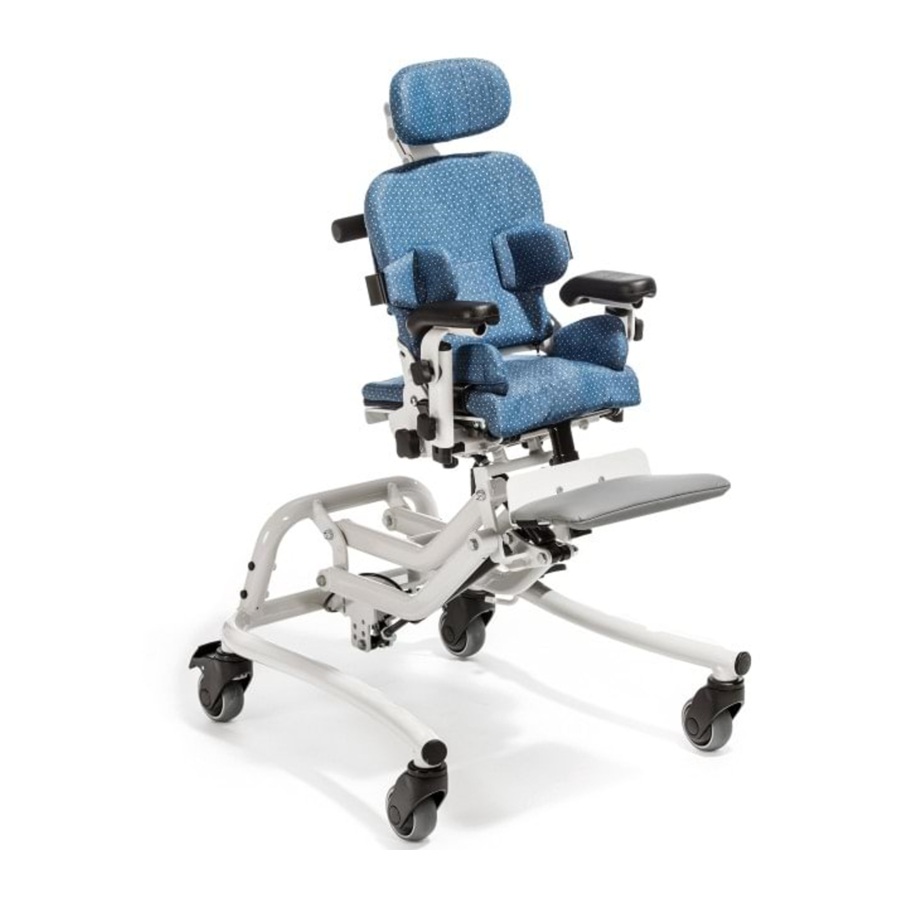

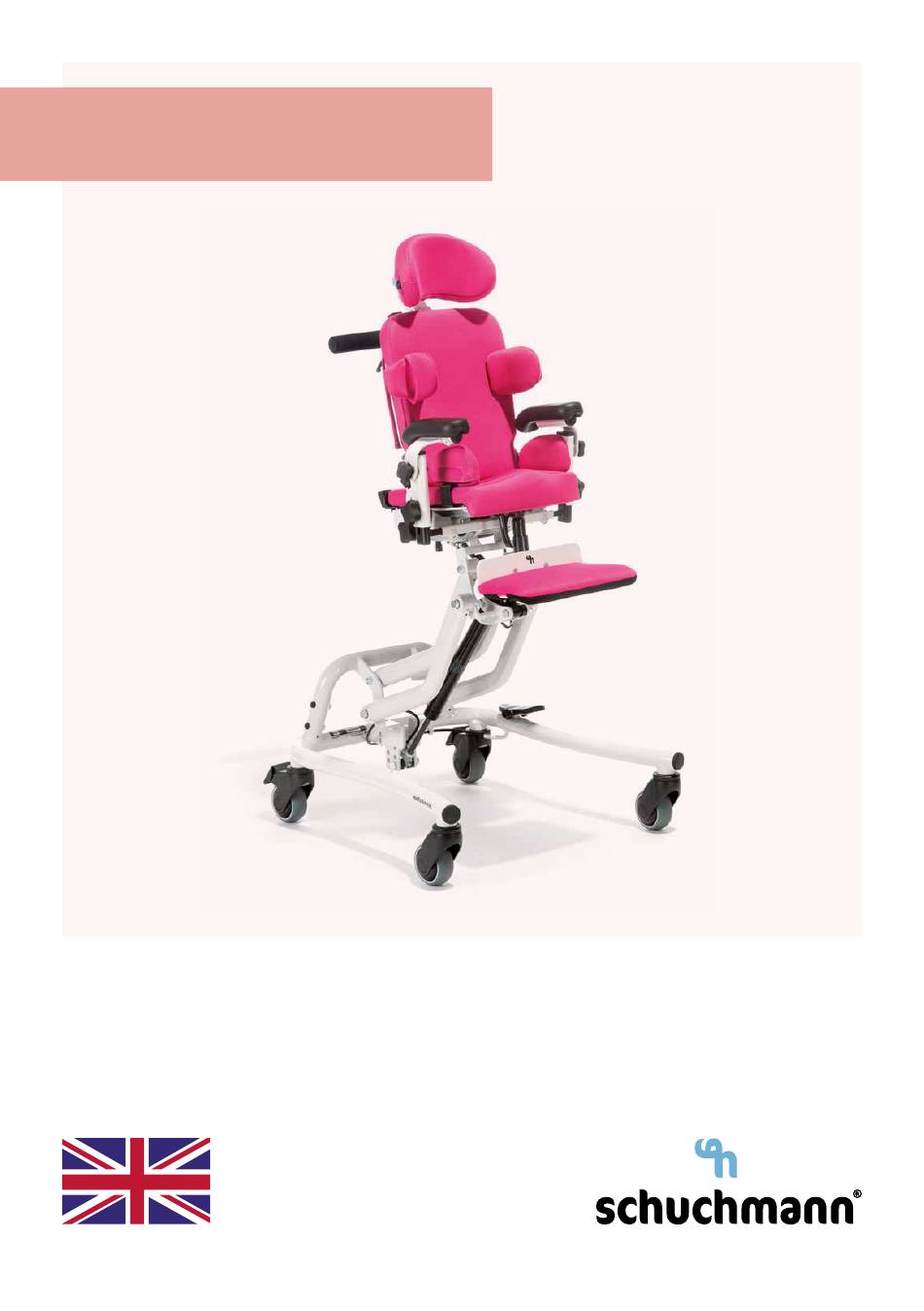

- Page 1 Instructions for use. madita-fun mini. The therapy chair for primary care.
- Page 2 Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product. Your schuchmann Team...
-
Page 3: Table Of Contents
Contents. 1. Preparation................. 05 1.1 Delivery ...............................05 1.2 Safety measures prior to use ....................05 1.3 Safe disposal ..........................05 1.3.1 Packaging ..........................05 1.3.2 Product ..........................05 1.4 Where to store the Instructions for use ................05 2. Product description..............06 2.1 Material information ........................06 2.2 Handling / transport ........................06 2.3 Application areas, use according to the intended purpose ........06 2.3.1 Indications ...........................06... - Page 4 Contents. 6. Technical data................20 7. Guarantee................... 21 8. Identification................22 8.1 EU Declaration of Conformity ....................22 8.2 Serial number / date of manufacture ................23 8.3 Product version..........................23 8.4 Issue of the document......................23 8.5 Name and address of the manufacturer, specialist dealer supplying the product.............................
-
Page 5: Preparation
1.4 Where to store the Instructions for use Please store these Instructions for use carefully and ensure that these Instructions for use remain with the product in case of re-use. Should you lose the instructions, you can always download an updated version at www.schuchmann.de . -
Page 6: Product Description
(fold up foot support, set lowest seat height etc.) 2.3 Application areas, use according to the intended purpose The madita-fun mini. therapy chair is a medical product of risk class 1 and is designed for the primary care during early childhood and for use at home. -
Page 7: Use Not In Accordance With The Intended Purpose / Warning Guidelines
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the user. • Only use the therapy chair if all components have been correctly mounted and adjusted. -
Page 8: List Of Accessories
2. Product description. 2.6 List of accessories • Standard back unit • Headrest (padded and • Back with integrated upper arm height-adjustable) guide • Headrest (padded, adjustable in • Thorax pelotte pads, long height, depth and angle) • Wooden therapy table (torso guide) •... -
Page 9: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the user's extremities are in the respective area when making adjustments of any kind to minimise the risk of injury. -
Page 10: Seat Depth
3. Settings. 3.3 Seat depth To adjust the seat depth, loosen the two wing screws (A) under the seat unit. Then the seat surface can be moved continuously forwards or backwards. After each adjustment, please retighten all screw connections! 3.4 Back inclination The back can be adjusted to the correct angle after loosening the star knob (B) on the right-hand side of the seat unit. -
Page 11: Armrests
3. Settings. 3.7 Armrests The armrests can be adjusted in angle, height and width. The angle is adjus- ted after loosening the star knob (A). The height can be adjusted through loosening the star knob (B). The width adjustment takes place af- ter loosening the two grub screws (C), which are located on the underside of the seat unit. -
Page 12: Castors
3. Settings. 3.9 Castors The therapy chair should always be prevented from rolling away inadver- tently through braking of the 2 rear castors. To do this, press the brakes (A) down with the tip of your foot. The brake serves merely to prevent inad- vertent rolling away on level surfaces! 4. -
Page 13: Thorax Pelotte Pads With Standard Back
4. Accessories. 4.2 Thorax pelotte pads with standard back The thorax pelotte pads are available in normal and long versions (with torso guide). Both versions are individually adjustable in height and width. Pull the pad cover off the rear side of the back and loosen the two cylinder head screws with a hexagonal wrench (A). -
Page 14: Thigh Guide
4. Accessories. 4.4 Thigh guide The thigh guide pads are individually adjustable in width, depth and angle. In order to adjust the width, the depth and the angle, loosen the cylinder head screws with a hexagonal wrench (A) under the seat surface and bring the thigh guide into the required position. -
Page 15: Dysplasia Seat
4. Accessories. 4.5 Dysplasia seat The dysplasia seat permits the me- dically necessary abduction of the thighs. In order to adjust the leg gui- des, loosen the cylinder head screws with a hexagonal wrench (A) on the underside of the seat plate. In this way, the clutch-plate clamp and the inside and outside leg guides can be adjusted in angle. -
Page 16: Therapy Table
For all removable fabrics please pay at- tention to the sewn-in care labels (such as A + B) on the Obermaterial/ top cloth/dessus: respective element. 100% Polyester Please also pay attention to our general cleaning and hygiene advice. This can be found at www.schuchmann.de/mediathek... -
Page 17: Disinfection
5. Cleaning and servicing. 5.1.2 Disinfection Various products can be used for surface disinfection of metal and plastic parts. Liquid disinfectants are available as ready-to-use solutions that are spray- ed on and evenly applied with a soft cloth. Alternatively, wipes pre-soaked with disinfectant can be used to wipe the products over the entire surface. -
Page 18: Maintenance Plan
5. Cleaning and servicing. • Check the harness for damage (clamping device, closures, seams) • Check the pads and covers for damage • Legibility of the type label • Final complete functional check of the aid • Check that all mounting parts and associated accessories are correctly fastened 5.3.2 Maintenance plan Maintenance specifications of the manufacturer (see Point 5.3.1) were... -
Page 19: Spare Parts
5. Cleaning and maintaining. 5.4 Spare parts Use only original accessories and original spare parts from Schuchmann, as otherwise the safety of the user is endangered and the warranty expires. To order spare parts, please contact the supplying specialist dealer (see point 8.5) stating the serial number of the product. -
Page 20: Technical Data
6. Technical data. Dimensions Dimensions Seat depth 12 - 19 cm Seat width 14 - 22 cm Back height with short back 28 - 33 cm Back height with long back 30 - 35 cm Seat height 25 - 62 cm Lower leg length 12 - 22 cm Total width... -
Page 21: Guarantee
7. Guarantee. 21 21 The two-year statutory guarantee period shall apply for all products. This begins with the delivery or handover of the goods. Should a verifiable ma- terial or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 22: Identification
EU Konformitätserklärung EU Declaration of Conformity Firma / Company Schuchmann GmbH & Co. KG Rudolf-Runge-Str. 3 · 49143 Bissendorf · Deutschland / Germany Tel. +49 (0) 5402 / 40 71 00 · Fax +49 (0) 5402 / 40 71 109 erklärt in alleiniger Verantwortung, dass das nachfolgend genannte Produkt der Risikoklasse 1... -
Page 23: Serial Number / Date Of Manufacture
• info@schuchmann.de • Fon +49 (0) 5402 / 40 71 00 Product labelling in accordance with MDR 8.3 Product version The madita-fun mini. therapy chair is available in three sizes and can be supplemented through a diverse range of accessories (see Point 2.6). 8.4 Issue of the document Instructions for use madita-fun mini. - Page 24 schuchmann.de...
