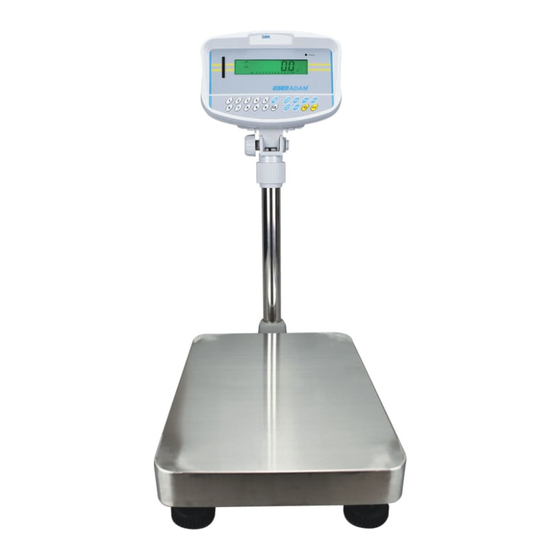

Adam GBK 16a Manual

Gbk and gfk series
Hide thumbs

Advertisement

Adam Equipment
GBK and GFK Series
P.N. 9679, Revision C, June 2010)
(
Software Rev.
V1.17 GK-H scales for Europe
V2.25 EC Approved scale
V3.32 GK scale for USA
V4.07 GK-H scale for USA
V5.32 GK scales for Europe
© Adam Equipment Company 2010

Advertisement

loading

  Related Manuals for Adam GBK 16a

  Summary of Contents for Adam GBK 16a

  • Page 1 GBK and GFK Series P.N. 9679, Revision C, June 2010) Software Rev. V1.17 GK-H scales for Europe V2.25 EC Approved scale V3.32 GK scale for USA V4.07 GK-H scale for USA V5.32 GK scales for Europe © Adam Equipment Company 2010...
  • Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2010...
  • Page 3: Table Of Contents

    PERCENT WEIGHING AND ANIMAL WEIGHING......... 48 ERROR MESSAGES ................49 SERVICE PARAMETERS..............51 15.1. ACCESS TO PARAMETERS ................. 51 15.2. USING “1000” TO ENTER THE SERVICE PARAMETERS......52 REPLACEMENT PARTS AND ACCESSORIES.........57 SERVICE INFORMATION ..............58 WARRANTY INFORMATION .............59 APPENDIX..................60 1 | page © Adam Equipment Company 2010...
  • Page 4 2 | page © Adam Equipment Company 2010...
  • Page 5: Introduction

    • OIML Approved models, GBK/GFK-M, do not allow pounds units, have calibration controlled by jumpers or passcodes and other limitations as noted in the manual. 3 | page © Adam Equipment Company 2010...
  • Page 10 © Adam Equipment Company 2010 P a g e...
  • Page 11: Installation

    Avoid air movement such as from fans or opening doors. • Do not place near open windows or air-conditioning vents. Keep the scales clean. Do not stack material on the • scales when they are not in use. © Adam Equipment Company 2010 P a g e...
  • Page 12: Setting Up The Scales

    Counter has been enabled (see section 6) the current values will be displayed. These values should match the values marked on the scale at the time of verification, if it has been verified. © Adam Equipment Company 2010 P a g e...
  • Page 13: Keypad

    This is used to select the weighing units Allows the weight, unit weight, and from a preset list of available units. count to be seen when parts counting or to change from weight to % in percent weighing © Adam Equipment Company 2010 P a g e...
  • Page 14 [1] to [0] Allow entering numerical values where and [CE] required, setting of limits, tare value, time and date for example. © Adam Equipment Company 2010 P a g e...
  • Page 15: Display

    The scale is in Parts counting mode HI, OK, LO The scale is in Check weighing mode The colons “:” are used to separate pounds from ounces and for the real time clock. © Adam Equipment Company 2010 P a g e...
  • Page 16: Calibration Counter For Approved Scales

    In this way if the record of the Calibration or Parameter counters do not agree with recorded settings the responsible person inspecting the scale can take appropriate action. © Adam Equipment Company 2010 P a g e...
  • Page 17 (see section 15.2). “F4 Int” Initial Zero Range “F5 rEZ” Re-Zero range “F6 SCS” Successive Tare Enable “F7 Cnt” Display ADC counts “F8 Zem” Zero Mode “F9 Lvd” Low voltage detection © Adam Equipment Company 2010 P a g e...
  • Page 18: Battery

    The auto power off can be set by the user to disable the feature or to a pre-set time interval. See setting of the parameter “S3 AoF “ in section 13.3. © Adam Equipment Company 2010 P a g e...
  • Page 19: Operation

    • As a product is added only the weight of the product will be shown. The scale could be tared a second time if another type of product was to be © Adam Equipment Company 2010 P a g e...
  • Page 20: Preset Tare (Not Available On Approved Scales)

    • Press [Tare] to tare the scale. The value that was entered is stored as the tare value and it is subtracted from the display, leaving a negative number on the display. © Adam Equipment Company 2010 P a g e...
  • Page 21: Weighing

    • If a container is to be used, place this container on the platform before entering parts counting and press [Tare]. • Press [Cnt] to enter the Parts Counting mode. The display will show the last sample size used. For example, “10 Pcs”. © Adam Equipment Company 2010 P a g e...
  • Page 22 10.2.2. • During parts counting the display can be changed to show the net weight, unit weight and number of parts by each time pressing the [Func] key. © Adam Equipment Company 2010 P a g e...
  • Page 23 Either use this sample size with a different part or enter a new sample size as above. • To return to weighing, press [Unit] when “XX pcs” is displayed. © Adam Equipment Company 2010 P a g e...
  • Page 24: Check-Weighing

    3. If Limit Password is enabled then enter the password which will allow you to change the limits or the operation of the beeper or bargraph. © Adam Equipment Company 2010 P a g e...
  • Page 25: Setting Up While Weighing

    • Pressing the [Tare] key to enter the value will return the scale to weighing, with the Check-weighing function enabled. © Adam Equipment Company 2010 P a g e...
  • Page 26: Setting Up While Parts Counting Or % Weighing

    (including pcs for parts counting and % for percent weighing) as well as settings for the beeper and bar graph. During Check weighing the current limits can be stored or previously stored units can be recalled. © Adam Equipment Company 2010 P a g e...
  • Page 27 X” will be displayed for 2 seconds indicating the values stored in the location “X” is being recalled. The scale will change to the recalled limits, weighing units and settings for the beeper and bar graph. © Adam Equipment Company 2010 P a g e...
  • Page 28: Percent Weighing

    • Press [Func]. The first option is “FUnC 1”, press the [Func] key 3 more times to display “FUnC 4”. • Press the [Tare] key. “F4 PCt” will be displayed. © Adam Equipment Company 2010 P a g e...
  • Page 29 100%. When “F4 PCT” is displayed, enter the weight to be used for the 100% reference, then press [Tare] to accept the reference weight. The display will show “0.00 %”. © Adam Equipment Company 2010 P a g e...
  • Page 30 The display may jump by large numbers unexpectedly if small weights are used to set as 100% reference. The scale checks if the weight is too small and will show Error 7. © Adam Equipment Company 2010 P a g e...
  • Page 31: Animal (Dynamic) Weighing

    To increment the value shown press the [Func] key then press the [Tare] key to accept it. • The display will flash “Ani “ 2 times then show the current weight, 0.00. The scale is now ready to weigh. © Adam Equipment Company 2010 P a g e...
  • Page 32: Animal Weighing Procedure

    • The scale will remain in the animal weighing mode until the [Zero] key is pressed. Then it will return to normal weighing. © Adam Equipment Company 2010 P a g e...
  • Page 33: Accumulated Total

    "ACC 1" and then the weight in memory for 2 seconds before returning to normal. The weight can be output to a printer or PC using the RS-232 interface. © Adam Equipment Company 2010 P a g e...
  • Page 34 • To print the total, press [Print] to recall and then immediately press [Print] the second time to print the results. • To erase the memory, press [Print] to view the total and then immediately press [CE] to clear the memory. © Adam Equipment Company 2010 P a g e...
  • Page 35: Automatic Accumulation

    3. More products can be added and [Print] be pressed again for up to 99 entries until the capacity of display is exceeded. © Adam Equipment Company 2010 P a g e...
  • Page 36: Rs-232 Specification

    Pin 3 Output Pin 2 Input Pin 5 Signal Ground The scale can be set to print text in English, French, German or Spanish. See the RS- 232 parameters section for details. © Adam Equipment Company 2010 P a g e...
  • Page 37 User ID 234567 <cr><lf> <cr><lf> Net Wt. (or Gross Wt.) Net Wt. 1.234 <cr><lf> for metric and lb for pounds Unit Wt. 123 g <cr><lf> g 10 pcs <cr><lf> <cr><lf> <cr><lf> © Adam Equipment Company 2010 P a g e...
  • Page 38 Data Format- Memory Recall Output: <cr><lf> Date 12/09/2006 <cr><lf> Time 14:56:27 <cr><lf> <cr><lf> Scale ID 123456 <cr><lf> User ID 234567 <cr><lf> <cr><lf> ------------------<cr><lf> TOTAL <cr><lf> 1.234 <cr><lf> 10 pcs <cr><lf> <cr><lf> ------------------<cr><lf> <cr><lf> © Adam Equipment Company 2010 P a g e...
  • Page 39 2. The continuous print will only be for the current weight and the display data. 3. In other languages the format is the same but the text will be in the language selected. © Adam Equipment Company 2010 P a g e...
  • Page 40 Fecha Print date Time Heure Zeit Hora Print time Scale ID Bal ID Waagen ID Bal ID Scale ID number User ID Util ID Nutzer ID Usuario ID User ID Number © Adam Equipment Company 2010 P a g e...
  • Page 41: Input Commands Format

    P<cr><lf> Prints the results to a PC or printer using the RS-232 interface. It also adds the value to the accumulation memory if the accumulation function is not set to automatic. © Adam Equipment Company 2010 P a g e...
  • Page 42: Calibration

    (if entered directly). Remove the calibration mass. • If an error message “FAIL H” or “FAIL L” is shown, re-check the calibration and repeat. If the error cannot be corrected contact your supplier. © Adam Equipment Company 2010 P a g e...
  • Page 43: Parameter Settings

    The display will go directly to “FUnC 1”. • Press [Tare] to enter the group. • Press [Func] to scroll through the parameters and press [Tare] to enter a parameter setting. © Adam Equipment Company 2010 P a g e...
  • Page 44 Limit Lock. time. With LLK set to Preset (PSt), the user is allowed to use one of the preset limits only. © Adam Equipment Company 2010 P a g e...
  • Page 45 The Check weighing password is separate from the scale password, see section 13.3. If the password is other than 0000, user must enter the password to gain access to “F3 LLk”, “F4 LEd”, “F5 bEP”, “F6 CPS” and “F7 nCK”. © Adam Equipment Company 2010 P a g e...
  • Page 46: Rs-232 Parameters

    Description Options Default Values or setting C1 on Enable or disable the RS- Prt on Prt on 232 interface Prt oFF C2 bd Baud Rate 9600 1200 2400 4800 9600 19200 © Adam Equipment Company 2010 P a g e...
  • Page 47 Accumulate and Print only Print when [Print] key is pressed, when [Print] key pressed Do not accumulate. Print continuously. Print continuously. Cont Accumulate when Do not accumulate. available approved scales [Print] key is pressed © Adam Equipment Company 2010 P a g e...
  • Page 48: Scale Parameters

    S2 bL EL oFF EL AU Backlight set to always on, always off or automatic on EL on whenever a weight is EL AU placed or a key is pressed © Adam Equipment Company 2010 P a g e...
  • Page 49 Must be entered twice when asked. When complete, it will display “donE”. S8 CAL Calibration Calibrate the scale. See Section 10.0 © Adam Equipment Company 2010 P a g e...
  • Page 50: Percent Weighing And Animal Weighing

    This parameter allows the Enabled None user to enter the Percent always weighing Function. Section 10.7. F4 AnL Enter the Animal Weighing Set the filter value. Enabled mode of operation, See Always section 10.8 © Adam Equipment Company 2010 P a g e...
  • Page 51: Error Messages

    Err 8 High limit input error Low limit is set first, then the high limit is set lower than the low limit and high limit not equal to zero. © Adam Equipment Company 2010 P a g e...
  • Page 52 FAIL H or Calibration error Improper calibration (should be within +10% factory FAIL L calibration). The old calibration data will be retained until the calibration process is complete. © Adam Equipment Company 2010 P a g e...
  • Page 53: Service Parameters

    Empty the platform by removing the load, if “UnLoAd ” there is any and press [Tare] Load the requested calibration weight and press “LoAd” “6” “KiLoS” [Tare] If Calibration is complete, “SPAn PASS” will be “SPAn” “PASS” © Adam Equipment Company 2010 P a g e...
  • Page 54: Using "1000" To Enter The Service Parameters

    For the non approved indicator press the [Tare] key during the display counting when turned on, Approved Indicators: For the Approved version a jumper can be installed to allow access or the Calibration and Parameter Counters must be enabled (see 15.2.10). © Adam Equipment Company 2010 P a g e...
  • Page 55 Successive Tare Enable “F7 Cnt” Display the A/D counts “F8 Zem” Zero Mode “F9 Lvd” Low voltage detection “F10 Cn” GK-M only, Calibration and Parameter counters or “F10 Az” Auto Zero Range © Adam Equipment Company 2010 P a g e...
  • Page 56 Press the [Tare] key to return to the PARAMETER menu. Press the [Zero] key to return to weighing. Typical value at zero is 30,000-90,000 (approx.) Typical value at full capacity is 500,000 (approx.) © Adam Equipment Company 2010 P a g e...
  • Page 57 1-2 of J1, See section 15.2. Press the [Func] key to change the value. Press [Tare] to accept the displayed value. Press [Zero] to return to weighing. © Adam Equipment Company 2010 P a g e...
  • Page 58 The display will show the current setting, 0.5d, 1d, 2d, or 5d. Press the [Func] key to change the value. Press [Tare] to accept the displayed value. Press [Zero] to return to weighing. © Adam Equipment Company 2010 P a g e...
  • Page 59: Replacement Parts And Accessories

    REPLACEMENT PARTS AND ACCESSORIES If you need to order any spare parts and accessories, contact your supplier or Adam Equipment. A partial list of such items is as follows- • Main Power cord or adaptor for • Stainless Steel Pan USA versions.
  • Page 60: Service Information

    Include any recent history of the unit. For example: -Has it been working since it’s delivered -Has it been in contact with water -Damaged from a fire -Electrical Storms in the area -Dropped on the floor, etc. © Adam Equipment Company 2010 P a g e...
  • Page 61: Warranty Information

    The warranty will cease to operate if the equipment is not returned in the original packaging and with correct documentation for a claim to be processed. All claims are at the sole discretion of Adam Equipment. This warranty does not cover equipment where defects or poor performance is due to misuse,...
  • Page 64 © Adam Equipment Company 2010 P a g e...
  • Page 65 Adam Equipment ADAM EQUIPMENT, BOND AVENUE, DENBIGH EAST INDUSTRIAL ESTATE, MILTON KEYNES, MK1 1SW, U.K. Tel: (01908) 274545 Fax: (01908) 641339 Intl Tel: -44 1908 -274545 Intl Fax: -44 1908 641339 E-Mail Address: info@Adamequipment.co.uk Declaration of Conformity Verklaring van overeenstemming Konformitätserklärung...
  • Page 66 © Adam Equipment Company 2010 P a g e...
  • Page 67 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEEE COMPLIANCE...
  • Page 68 For a complete listing of all Adam products visit our website at www.adamequipment.com © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.
