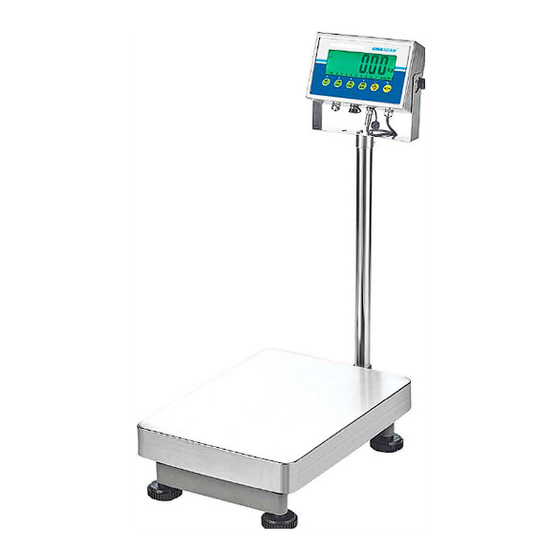

- Page 1 Adam Equipment AGF Floor Scale Software rev: V 1.00 & above Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place:...
-
Page 3: Table Of Contents
10.0 CALIBRATION ............................. 24 11.0 ERROR CODES ..........................25 12.0 REPLACEMENT PARTS AND ACCESSORIES ................. 26 13.0 SERVICE INFORMATION ........................26 WARRANTY STATEMENT ..........................27 ©Adam Equipment Co. 2019... -
Page 4: Introduction
Italian or Portuguese language text and data required for GLP reports. The indicator can be used with 1- to 4 load cell platforms. Internal rechargeable battery and IP-68 rated enclosure allow for a fully portable and rigged weighing system. ©Adam Equipment Co. 2019... -
Page 5: Specifications
0.05lb / 20g 0.1lb / 40g AGF US Models (Trade Approved) AGF 120aM AGF 300aM AGF 600aM Maximum capacity 120lb 300lb 600lb Readability 0.02lb 0.05lb 0.1lb Resolution 0.02lb 0.05lb 0.1lb Repeatability 0.02lb 0.05lb 0.1lb Linearity 0.04lb 0.1lb 0.2lb ©Adam Equipment Co. 2019... - Page 6 Weighing, Check weighing, Parts counting, Memory Functions Accumulation, Animal weighing, Percent weighing, Peak hold Weighing units Grams, Kilogram, pound, ounce, pound/ounce; Newton; Calibration Automatic External Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com ©Adam Equipment Co. 2019...
-
Page 7: Installation
Keep the scale clean. Do not stack material on the indicator when not in use. LIST OF ACCESSORIES Your packet contains- AC adapter Indicator Wall mount bracket and mounting hardware Instruction manual ©Adam Equipment Co. 2019... -
Page 8: Key Descriptions
A secondary function (ESC) is to return to normal operation when the scale is in a Parameter setting mode. To switch on and switch off the scale. / ST/ CE] ST: Secondary function allows the user to store/ recall checkweighing limits. ©Adam Equipment Co. 2019... -
Page 9: Displays
[0/Esc] key to re-zero the indicator if small amounts of weight are shown when the platform is empty. TARING Zero the scale by pressing the [0/Esc] key if necessary. The “ZERO” indicator will be ON. 0 ©Adam Equipment Co. 2019... -
Page 10: Weighing A Sample
To determine the weight of a sample, first tare the empty container if it is to be used and then place the sample in the container. The display will show the net weight of the sample and the units of weight currently in use. ©Adam Equipment Co. 2019... -
Page 11: Changing The Weighing Units
Adding or removing weight will cause the number of pieces to change in relation to the weight per piece. Press the [Func/Set] key to change the mode. ©Adam Equipment Co. 2019... -
Page 12: Check-Weighing
CHK bP = In / out / off green when weight The beeper will sound when the between the limits weight is between the limits, i.e. OK F3 bEP = bP OtL Beeper will sound if weight is outside the limits. ©Adam Equipment Co. 2019... - Page 13 The Check-weighing function can be set up during Weighing or Parts Counting by entering values as Low or/and High Limits keyed in by the user. The limits are displayed in kg (or Lb) or pcs respectively. Checkweighing during Parts Counting ©Adam Equipment Co. 2019...
-
Page 14: Accumulated Total
Using the directional buttons ⭡ or ⭣, scroll through to the parts counting mode, “Percent” will be shown on the display. Press [Tare/↵] to confirm. Once in percent weighing mode the “%” indicator will appear on the right- hand side of the display. ©Adam Equipment Co. 2019... -
Page 15: Animal (Dynamic) Weighing
Press [Tare/↵] to enter animal weighing. The display will show “LOAD” and the Animal/Dynamic weighing symbol The scale is now ready to weigh an unstable animal or sample on a weighing scale platform. ©Adam Equipment Co. 2019... -
Page 16: Animal Weighing Procedure
The function it will repeat this process until there are no items left, or the user stops the function. ©Adam Equipment Co. 2019... -
Page 17: Animal 2 Weighing Procedure
2 seconds. The display will show the “Hold” symbol while the display is locked. After the 2 seconds delay, the scale will automatically print out the result. If all the animals or items have been removed, the scale will restart the function and it will ©Adam Equipment Co. 2019... -
Page 18: Hold/ Peak Function
The parameters are split into 2 groups: Scale parameters (pressing [Func/Set] will access this automatically). RS-232 parameters (can be accessed by selecting the ‘rs 1’ and ‘rs 2’ menu options in the scale parameters menu). ©Adam Equipment Co. 2019... -
Page 19: Scale Parameters
Grams all units, at least one has to be enabled. Parts counting can be enabled/disabled lb:oz N (Newtons) Auto-Z Auto zero settings Filter Filter setting to slow, normal or Slower Faster fast Slowest Faster ©Adam Equipment Co. 2019... -
Page 20: Rs-232 Parameters
9600 2400 4800 9600 19200 38400 57600 115200 [Language] Select Language EnGLis (English) EnGLis FrEnCH (French) GErmAn (German) SPAn (Spanish) Portug (Portuguese) Itail (Italian) [Accumulation] Enable or disable the Accumulation [Printing Printing Mode- Manual or mAn, ©Adam Equipment Co. 2019... -
Page 21: Pc Settings
7.2.2 PC settings Parameter Description Options Default Values or setting [baud rate] Baud Rate 1200 9600 2400 4800 9600 19200 38400 57600 115200 [Model] Select scale/model Adam Adam ©Adam Equipment Co. 2019... -
Page 22: Command Settings
If the LED is green the battery has a full charge. If it is Red the battery is nearly discharged and yellow indicates the battery is being charged. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com ©Adam Equipment Co. 2019... - Page 23 If ID is zero, it is left blank Scale ID 123456 <cr><lf> User ID 234567 <cr><lf> <cr><lf> Net Wt. (or Gross Wt.) Net Wt 1.234 Kg <cr><lf> Tare Wt. 0.000kg Gross Wt. 1.234 Kg <cr><lf> <cr><lf> <cr><lf> <cr><lf> ©Adam Equipment Co. 2019...
- Page 24 <cr><lf> <cr><lf> <cr><lf> DATA FORMAT – PEAK HOLD <cr><lf> <cr><lf> Date 12/09/2006 <cr><lf> Time 14:56:27 <cr><lf> <cr><lf> Scale ID 123456 <cr><lf> User ID 234567 <cr><lf> <cr><lf> Peak Holt Wt. 1.500 Kg <cr><lf> <cr><lf> <cr><lf> <cr><lf> <cr><lf> ©Adam Equipment Co. 2019...
- Page 25 DATA FORMAT – SIMPLE <cr><lf> <cr><lf> Net Wt. 1.500 Kg <cr><lf> <cr><lf> Hold Wt. 1000kg Peak holt wt. 1000kg Animal wt. 1000kg Ref. wt. 1000kg Percent 150.00% <cr><lf> Unit wt. 1.0234g Pieces 1000 <cr><lf> <cr><lf> <cr><lf> ©Adam Equipment Co. 2019...
- Page 26 Pso Animal Pso Animale Pso Animal Animal Weight Hold Weight Hold Wt. Pds Tenu Halt-Gew Pso Guardado Retenido Contenudo Peak Hold Pds de Höchstwert- Peak Hold Weight Pso Mas Alto Pso di Punta Pso Mais Alto Crete ©Adam Equipment Co. 2019...
-
Page 27: Input Commands Format
[Tare] ↵ key to confirm. Pressing [Tare] ↵ will reconfigure the scale and bring the user back to the regular weighing mode. ©Adam Equipment Co. 2019... -
Page 28: Error Codes
DESCRIPTION SUGGESTIONS CODES - -oL - - Over-range Remove weight from the scale. If the problem persists contact your dealer or Adam Equipment for assistance. Err 1 Time Setting Error Enter time using correct format and reasonable values. Format: hh:mm:ss... -
Page 29: Replacement Parts And Accessories
12.0 REPLACEMENT PARTS AND ACCESSORIES If you need to order any spare parts and accessories, contact your supplier or Adam Equipment. A partial list of such items is as follows- Power Supply Module Printer, etc. Replacement Battery 13.0 SERVICE INFORMATION... -
Page 30: Warranty Statement
This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or workmanship during the initial period of use of the product in which the battery is installed. - Page 31 CALIFORNIA PROPOSITION 65 - MANDATORY STATEMENT WARNING: This product includes a sealed lead‐acid battery which contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency. As we often update adaptor products to ...
- Page 32 ADAM EQUIPMENT is an ISO 9001:2008 certified global company with more than 40 years’ experience in the production and sale of electronic weighing equipment. Adam products are predominantly designed for the Laboratory, Educational, Health and Fitness, Retail and Industrial Segments. The product range can be described as follows:...
