Summary of Contents for Adam Swift SWZ Series

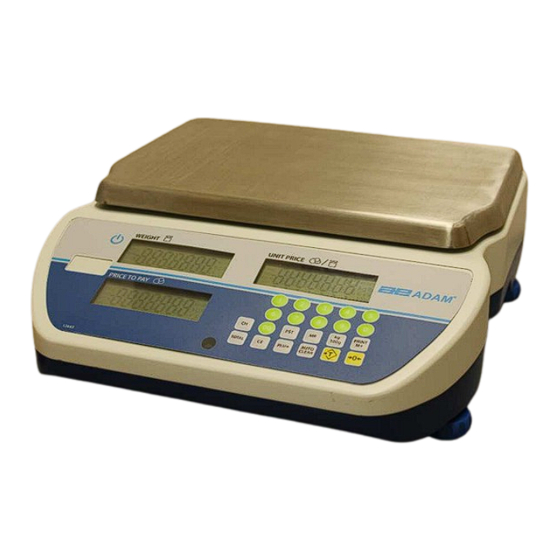

- Page 1 Adam Equipment Swift SWZ SERIES (with EC type Approval) Software rev: V 1.09 & above © Adam Equipment Co Ltd 2018...
- Page 2 Easy Reference: Model name of the balance: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase and Address: Name and address of the supplier: © Adam Equipment Co Ltd 2018...
-
Page 3: Table Of Contents
4.12 CHANGE FUNCTION ................... 10 4.13 RS-232 INTERFACE ..................... 10 4.13.1 Input commands format ................10 4.13.2 RS-232 Setup ....................11 4.14 REAL TIME CLOCK SETUP ................. 12 Setting up the clock ......................12 © Adam Equipment Co Ltd 2018... - Page 4 Please read carefully following instructions for installation and use before starting your work with a new balance. Failure to use the balance in accordance with the advice in the user manual could mean that the product gives incorrect readings © Adam Equipment Co Ltd 2018...
-
Page 5: Introduction
• Real Time Clock (RTC) and date • RS-232 bi-directional interface • Battery operated for portability • 90 hours battery life when fully charged • Up to 161 Prices (PLU) stored for easy access © Adam Equipment Co Ltd 2018... -
Page 6: Specifications
Housing ABS Plastic with Stainless Steel Pan Overall Dimensions 315 x 355 x 120 mm 315 x 400 x 530 mm Net Weight 4.2 kg 4.5 kg *NOTE: SWZ-P models have the Pillar Display. © Adam Equipment Co Ltd 2018... - Page 7 315 x 400 x 530 mm / Dimensions 124 x 140 x 47 inch 124 x 158 x 209 inch Net Weight 4.2 kg 4.5 kg *NOTE: SWZ-P models have the Pillar Display SWZ-a models USA only © Adam Equipment Co Ltd 2018...
-
Page 8: Installation
• Avoid air movement such as from fans or opening doors. Do not place near open windows or air- conditioning vents. • Keep the scales clean. Do not stack material on the scales when they are not in use. © Adam Equipment Co Ltd 2018... -
Page 9: Setting Up The Scales
(if a tare value has been entered). It also indicates when the scale is stable. The window for the Unit Price has arrows to show when the Auto Clear function is active and if the unit price is per 100g or per kilogram © Adam Equipment Co Ltd 2018... -
Page 10: Battery Charging
‘’Recharge’’, then press [Tare] ↵ key to select it and the battery voltage will be shown in the Unit price window. If the scale is connected to mains the Price to Pay window will show the current in mA. KEY DESCRIPTIONS © Adam Equipment Co Ltd 2018... - Page 11 It selects the unit price per kilogram or per 100g. Note: This key is not available for South Africa and Far East models [Print M+] It sends the results of the current displays to the RS-232 interface. © Adam Equipment Co Ltd 2018...
-
Page 12: Operation
As product is added only the weight of the product will be shown. 4) When the product and container are removed the weight window will show a negative value. To use a different container, remove this negative tare value by pressing [Tare] ↵ once more. © Adam Equipment Co Ltd 2018... -
Page 13: Determining Value Of A Product By Weight
If a different unit price is required either press [CE] to reset the unit price to 0.00 or simply enter a new unit price. NOTE: For South Africa and Far East, unit weight per 100g or per kg is not available. © Adam Equipment Co Ltd 2018... -
Page 14: Entering Values For The Plus
If the item is loaded on the pan, the Price to Pay window will show the total cost. If nothing is loaded, only the PLU value saved for the location will be displayed in the Unit Price window and the Price to Pay window will display “0,00 ”. © Adam Equipment Co Ltd 2018... -
Page 15: Auto Clear Key
BACKLIGHT OPERATION The backlight may be enabled or disabled by the user. If the backlight is disabled the battery life will be maximised, when in operation the battery life will depend on usage. © Adam Equipment Co Ltd 2018... -
Page 16: Key Sound Beeper
4) To enter a new quantity of the same non weight item, you can exit using the [Esc] key or pressing [TOTAL] key again and then enter the new quantity and the new price to pay will be displayed. © Adam Equipment Co Ltd 2018... -
Page 17: Change Function
Tares the scale to display the net weight. This is the same T<cr><lf> as pressing [Tare] key. Z<cr><If> Sets the zero point for all subsequent weighing. The display shows zero. P<cr><lf> Prints the results to a PC or printer using the RS-232 interface. © Adam Equipment Co Ltd 2018... -
Page 18: Rs-232 Setup
Format 1 (English with £ shown): 2018/08/31 13:01:56 UNIT PRICE TOTAL ------------------------------------- £ 1.20/100g 0.200kg £ 2.40 Format 2 (Spanish with $ shown): FECHA 2017/04/08 HORA 04:00:30 PRECIO UNIT. $ 10.99/100g NETO 0.200kg TOTAL $ 21.98 © Adam Equipment Co Ltd 2018... -
Page 19: Real Time Clock Setup
2) Press the [Tare] ↵ key to accept the date. An error code will be shown if the time (Err 1) or the date (Err 2) is not the permissible values. For example, 34 day of a month is an invalid entry. © Adam Equipment Co Ltd 2018... -
Page 20: Error Codes
Err ADC Incorrect ADC value Load cell is damaged. Electronics is damaged. ---OL--- Weight over range Weight over scale range ---Lo--- Below Gross zero by >20e Weight below scale range © Adam Equipment Co Ltd 2018... -
Page 21: Calibration
FOR SALES OF GOODS. CONTACT YOUR TRAIDING STANDARDS OFFICE FOR FURTHER ASSISTANCE. 7.0 REPLACEMENT PARTS AND ACCESSORIES If you need to order any spare parts and accessories, contact your supplier or Adam Equipment. A partial list of such items is as follows- 3.02.2.0.13911 - In use cover 3.02.2.0.13912 - Hard Carry case... -
Page 22: Warranty Statement
The warranty will cease to operate if the equipment is not returned in the original packaging and with correct documentation for a claim to be processed. All claims are at the sole discretion of Adam Equipment. - Page 23 WARNING: This product includes a sealed lead-acid battery which contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency.
- Page 24 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
