Chapter 1
Component Diagrams and Torque Specifications
Stacking
Panel
No.
18

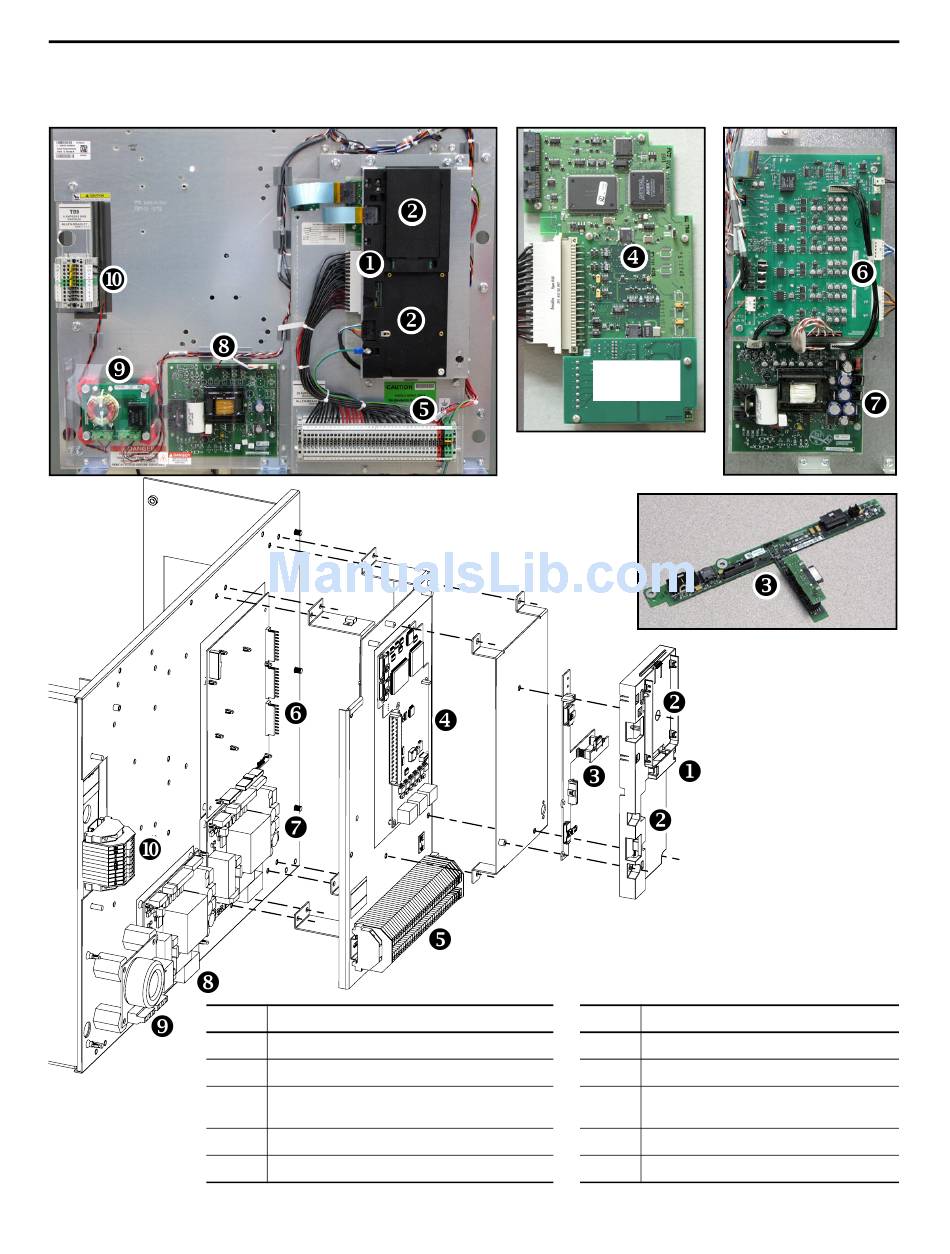

Figure 3 - Circuit Boards on Inverter Assembly
Main Control Panel
Description
1
HIM Cradle/Communication Board
2
Communication Board Slots (for optional devices)
3
T-Comm Board
4
Main Control Board
5
TB11
Rockwell Automation Publication 20B-IN026C-EN-P - October 2015
Encoder Board
(optional)
Communications
Panel
No.
Description
6
Power Interface Board
7
Switch Mode Power Supply Board
8
24V Power Supply Board for Current Transducers
(CTs)
9
DC Bus Filter Board
10
TB9
