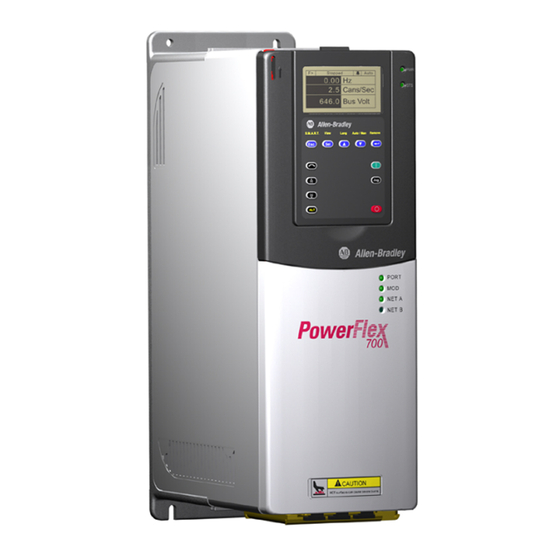

Allen-Bradley PowerFlex 700 Installation Instructions Manual

Adjustable frequency ac drive frames 7...10
Hide thumbs Also See for PowerFlex 700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Instruction and Installation Manual
Installation Instructions
PowerFlex 700 Adjustable Frequency AC Drive – Frames 7...10
Additional Resources
This document explains the 5 BASIC STEPS needed to install and perform a
Basic Start-Up of the PowerFlex 700 AC drive. A Human Interface Module
(HIM) is required to perform the Basic Start-Up routine covered in this manual.
The information provided is intended for qualified installers only.
These documents contain additional information concerning related products
from Rockwell Automation.
Resource
PowerFlex 700 Standard Control User Manual, publication
20B-UM001
PowerFlex 700 Vector Control User Manual (v4.001 & up),
publication
20B-UM002
PowerFlex 700 AC Drive Technical Data, publication
20B-TD001
PowerFlex Comm Adapter Manuals, publication
20COMM-UM...
PowerFlex 70 and PowerFlex 700 Reference Manual,
publication
PFLEX-RM001
PowerFlex 70 Enhanced Control and PowerFlex 700 Vector
Control Reference Manual, publication
Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives, publication
Safety Guidelines for the Application, Installation and
Maintenance of Solid State Control, publication
Guarding Against Electrostatic Damage, publication
8000-4.5.2
Product Certifications website,
http://ab.com
You can view or download publications at
http://www.rockwellautomation.com/literature/. To order paper copies of
technical documentation, contact your local Allen-Bradley distributor or
Rockwell Automation sales representative.
Description
Provides detailed information on:
• Parameters and programming
• Faults, alarms, and troubleshooting
This publication provides detailed drive specifications,
option specifications and input protection device ratings.
These publications provide information on configuring,
using, and troubleshooting PowerFlex communication
adapters.
These publications provide detailed application specific
information for programming and configuring the
PowerFlex 700 drive.
PFLEX-RM004
Provides basic information needed to properly wire and
DRIVES-IN001
ground PWM AC drives.
Provides general guidelines for the application,
SGI-1.1
installation, and maintenance of solid-state control.
Provides practices for guarding against Electrostatic
damage (ESD)
Provides declarations of conformity, certificates, and
other certification details.
