Remove Components - Allen-Bradley PowerFlex 700 Installation Instructions Manual

Remove Components

1. Read and follow the Safety Precautions on page
Steps on page 13.
2. Remove safety shields and enclosure covers as needed.
3. Locate the Inverter Power Module (IGBT Module) to be replaced.
4. If you are replacing the lower IGBT Module, it may be easier if you remove
the Main Control Panel and Stacking Panel. If you need to remove the
panels, remove them in this order:
a. Main Control Panel (Inverter Assembly) on page 24.
b. Stacking Panel (Inverter Assembly) on page 26.

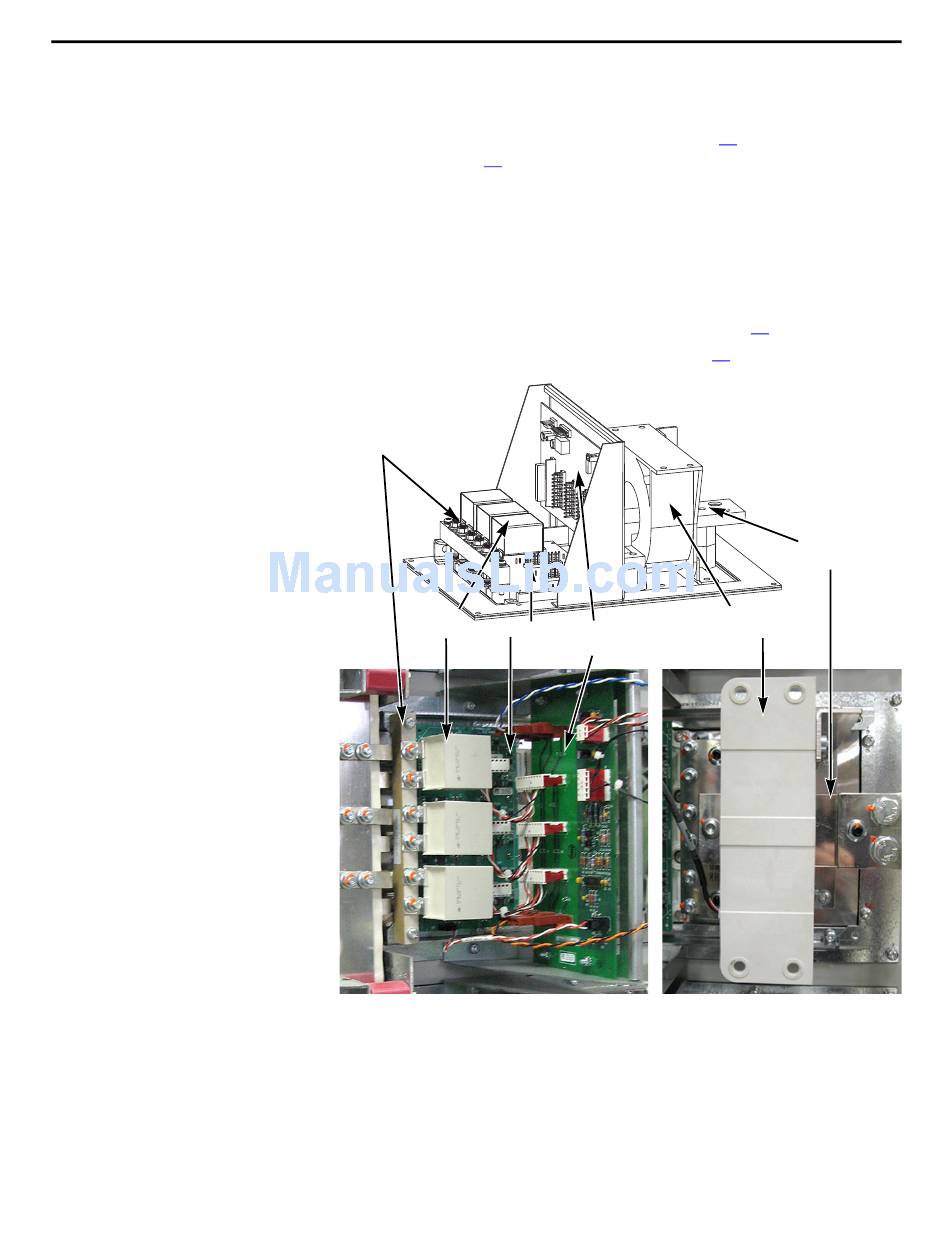

Tie Down Capacitor
Mount
Snubber
IGBT Module
Capacitors
