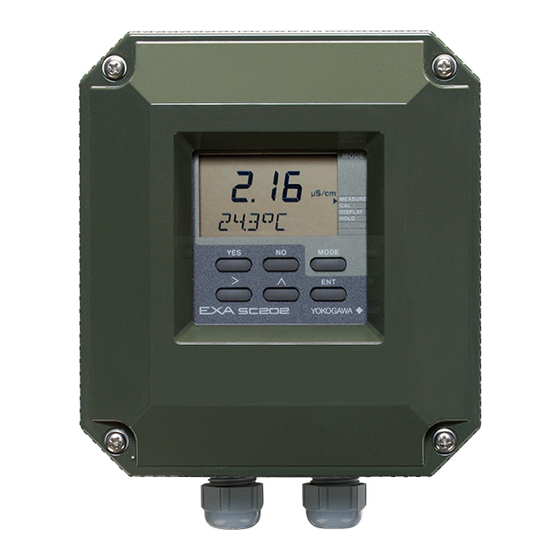

YOKOGAWA SC202G User Manual

2-wire conductivity or resistivity transmitter
Hide thumbs Also See for SC202G:
Table of Contents

Advertisement

Quick Links

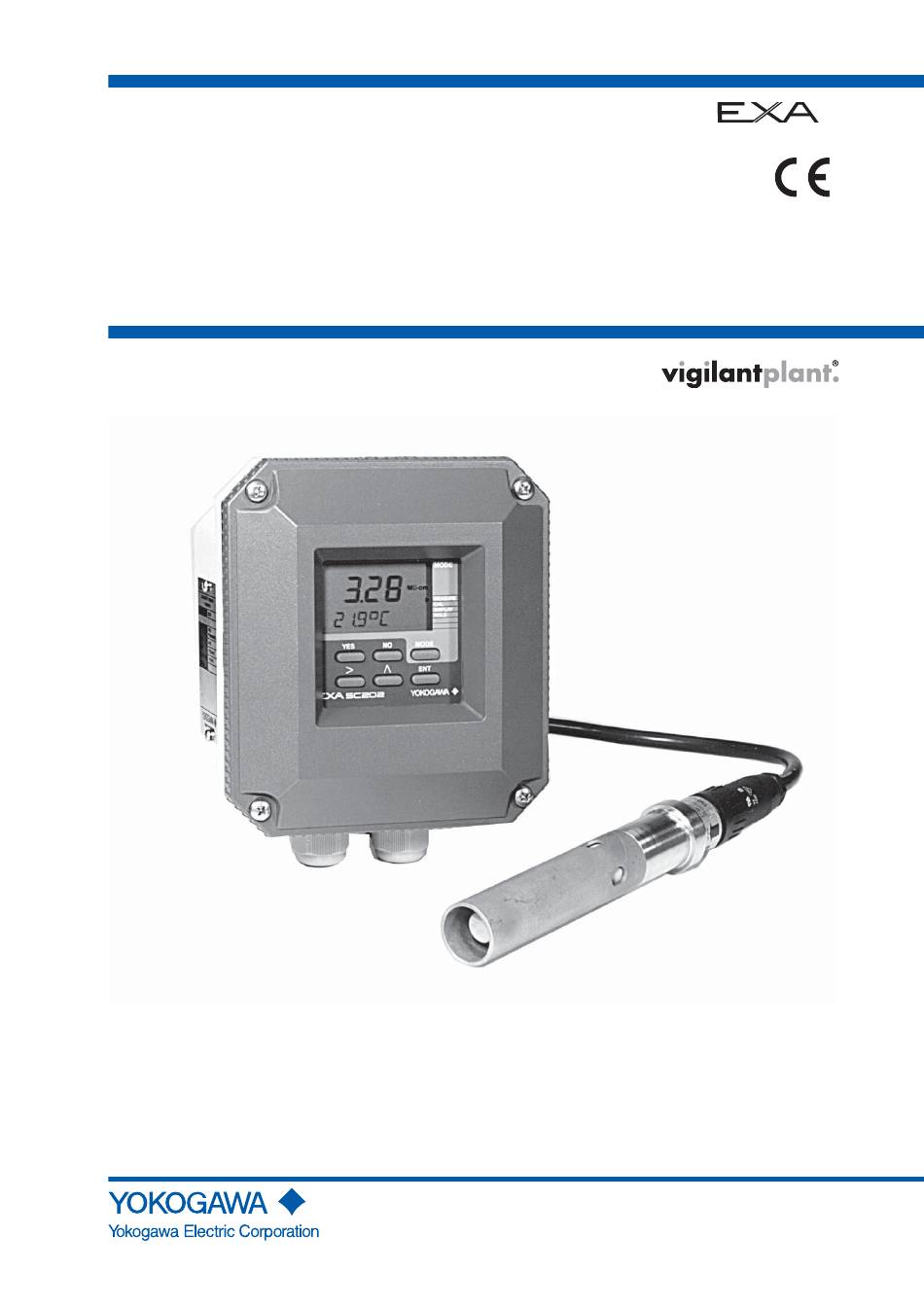

User's
Manual
Model SC202G [Style: S3], SC202S [Style: S3]
2-wire Conductivity or
Resistivity Transmitter
IM 12D08B02-01E
IM 12D08B02-01E
8th Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC202G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA SC202G

Summary of Contents for YOKOGAWA SC202G

  • Page 1 User’s Manual Model SC202G [Style: S3], SC202S [Style: S3] 2-wire Conductivity or Resistivity Transmitter IM 12D08B02-01E IM 12D08B02-01E 8th Edition...

  • Page 2: Table Of Contents

    3-5. Sensor wiring ....................3-6 3-6. Other sensor systems ..................3-7 3-6-1. Sensor cable connections using junction box (BA10) and extension cable (WF10) ..3-7 IM 12D08B02-01E 8th Edition: Oct. 2009(YK) All Rights Reserved, Copyright © 2001, Yokogawa Electric Corporation IM 12D08B02-01E...
  • Page 3 4. Operation; Display Functions And Setting ............4-1 4-1. Operator interface ................... 4-1 4-2. Explanation of operating keys ................. 4-2 4-3. Setting passcodes ..................4-3 4-3-1. Passcode protection ......................4-3 4-4. Display examples .................... 4-3 4-5. Display functions ..................... 4-4 5. Parameter setting ....................5-1 5-1.
  • Page 4 Customer Maintenance Parts List SC202G (Style : S3) ..CMPL 12D08B02-03E Customer Maintenance Parts List SC202S (Style : S3)..CMPL 12D08B02-23E Revision Record ......................i In this manual a sign appears if it concerns the SC202G -A and SC202S-A, -N, -K. IM 12D08B02-01E...

  • Page 5: Preface

    Yokogawa is not responsible for damage to the sively wet. instrument, poor performance of the instrument or losses resulting from such, if the problems are...
  • Page 6 The following safety symbols are used on the Warranty and service Yokogawa products and parts are guaranteed free product as well as in this manual. from defects in workmanship and material under DANGER normal use and service for a period of (typically) 12...
  • Page 7 Ex sono disponibili in inglese, tedesco e francese. Se si desidera ricevere i man- uali operativi di prodotti Ex in lingua locale, met- tersi in contatto con l’ufficio Yokogawa più vicino o Alle Betriebsanleitungen für ATEX Ex bezogene con un rappresentante.
  • Page 8 IM 12D08B02-01E...
  • Page 9 CONFIGURATION CHECKLIST FOR SC202 Primary choices default alternatives reference on page menu Resistivity 5.8- 5.9 SC 01 Measurement Conductivity max. 1999 mS/cm “range” Range 0-1000 μS/cm Fahrenheit 5.10- 5.11 SC 11 Temperature unit Celsius Sensor any value between 0.08 5.8-5.9, 6.1- 6.3 SC 03 Cell constant 0.1 /cm...

  • Page 10: Introduction And General Description

    This manual also includes a basic troubleshooting guide to answer typi- cal user questions. Yokogawa can not be responsible for the performance of the EXA analyzer if these instructions are not followed. 1-1. Instrument check Upon delivery, unpack the instrument carefully and inspect it to ensure that it was not damaged during shipment.
  • Page 11 1-2 Introduction FISCO field device CONDUCTIVITY TRANSMITTER CONDUCTIVITY TRANSMITTER IECEx KEM 07.0027X Zone 0 Ex ia IIC T4 MODEL SC202S-F MODEL SC202S-P IP65 SUFFIX SUFFIX SEE CONTROL DRAWING KEMA 07ATEX0050 X Ex ia IIC T4 II 1G SEE CONTROL DRAWING FISCO FISCO SUPPLY...

  • Page 12: Application

    Because the EXA is suitable for use as a monitor, a controller or an alarm instrument, program configuration possibilities are numerous. Details provided in this user’s manual are sufficient to operate the EXA with all Yokogawa sensor sys- tems and a wide range of third-party commercially available probes. For best results, read this manual in conjunction with the corresponding sensor user’s manual.
  • Page 13 1-4 Introduction IM 12D08B02-01E...

  • Page 14: General Specifications

    (3.6 mA when HART® or distributor comm. is Voltage (V) F06.EPS non-used, 3.9 mA when HART® or distributor Fig.2-1 Supply voltage/ load diagram for the SC202G comm. is used) or pulse of 21 mA to signal failure. F. Temperature compensation : Automatic, for temperature ranges mentioned under C (inputs).

  • Page 15: Operating Specifications

    Factory transmitter output. "K" means cell constant. Pmax=1.2 W, Ci=22 nF, Li=35 μH Mutual (FM) YOKOGAWA provides conductivity sensors FM Non-incendive safe Approval which cell constant are 0.1 to 10 cm Applicable standard: FM3600, FM3611, FM3810 The following tolerance is added to above...
  • Page 16 Description Code replacement by other than authorized CSA Intrinsically safe Approval Applicable standard: C22.2, No. 0-M1991, representative of Yokogawa Electric C22.2, No. 04-M2004, C22.2, No. 157-M1992, Corporation and will void NEPSI Intrinsically C22.2, No. 61010-1 Ex ia Class I, Division 1, Groups ABCD safe certification.
  • Page 17 Twisted and shielded two wire G. Configuration : Local with 6 keys cable according to recommendation H. Software : Firmware based on Yokogawa stack. based on IEC 1158-2 Cable diameter: 6 to 12 mm (0.24 to 0.47 Yokogawa HART® Modem F9197UB I.

  • Page 18: Model And Suffix Codes

    L. Hardware: from our homepage ments (AT-FBUS, PCMIA-FBUS) J. Configuration: locally with 6 keys M. Other control systems: YOKOGAWA PRM, DTM 2-3. Model and suffix codes 1. 2-wire Conductivity transmitter (General purpose) [ Style : S3 ] Model Suffix Code...

  • Page 19: Control Drawing Sc202S Ma Hart ® Specification (Iecex)

    2-6 Specifications 2-4. Control Drawing SC202S mA HART ® Specification (IECEx) Intrinsically safe design Ex ia or ib IEC Ex standard Ex ia IIC : T4 for ambient temp. < 55°C C ertified safety barrier or pow er T6 for ambient temp. < 40°C w ith R int=300 C ertificate nr.
  • Page 20 Specifications 2-7 2-5. Control Drawing SC202S mA HART ® Specifi cation (ATEX) Intrinsically safe design CEN ELEC standard EEx ia IIC : T4 for ambient temp. < 55°C EEx ia or ib C ertified safety barrier or pow er T6 for ambient temp. < 40°C w ith R int=300 C ertificate nr.

  • Page 21: Control Drawing Sc202S Ma Hart ® Specification

    2-8 Specifications 2-6. Control Drawing SC202S mA HART ® Specification (FM Intrinsically safe design). Intrinsically safe design FM Approved safety barrier or FM Class I, Div.1, Group ABCD, T4 for ambient temp. < 55°C power supply T6 for ambient temp. < 40°C with Rint = 300 SC202S transmitter (HART compatible)
  • Page 22 Specifications 2-9 2-7. Control Drawing SC202S mA HART ® Specifi cation (FM Non-incendive design) N o n in c e n d iv e d e s ig n C la s s I, D iv .2 , G ro u p A B C D , T 4 fo r a m b ie n t te m p .

  • Page 23: Control Drawing Of Sc202S Ma Hart ® Specification (Csa)

    2-10 Specifications 2-8. Control Drawing of SC202S mA HART ® Specification (CSA) Intrinsically safe d esign C S A certified C S A E x ia C lass1, D iv.1, G ro up A B C D , T 4 fo r ambient tem p. < 55°C safety barrier or pow er supp ly T 6 fo r am bient tem p.

  • Page 24: Control Drawing Of Sc202S Ff/Pb Specification (Iecex)

    Specifications 2-11 2-9. Control Drawing of SC202S FF/PB Specification (IECEx) Ex ia IIC T4 for ambient temp. 55 C Ui = 24 V Ui = 17,5 V Ii = 250 mA Ii = 380 mA Pi = 1,2 W Pi = 5,32 W SC202S-F or SC202S-P Sensor...

  • Page 25: Control Drawing Of Sc202S Ff/Pb Specification (Atex)

    2-12 Specifications 2-10. Control Drawing of SC202S FF/PB Specification (ATEX) Ex ia IIC T4 for ambient temp. 55 C Ui = 24 V Ui = 17,5 V Ii = 250 mA Ii = 380 mA Pi = 1,2 W Pi = 5,32 W SC202S-F or SC202S-P Sensor...

  • Page 26: Control Drawing Of Sc202S Ff/Pb Specification

    Specifications 2-13 2-11. Control Drawing of SC202S FF/PB Specification (FM Intrinsically safe Entity) FM Class I, DIV. 1, Group ABCD Sensor T4 for ambient temp. 55 C Connections Max. cablelength: 60 mtr. SC202S-F Cable dia. : 3…12 mm. or SC202S-P Sensor Connections FM Approved...
  • Page 27 2-14 Specifications The cable used to interconnect the devices needs to comply with the following parameters: Loop resistance R’: 15 … 150 Ω/km; Inductance per unit length L’: 0,4 … 1 mH/km Capacitance per unit length C’: 80 … 200 nF/km (C’...

  • Page 28: Control Drawing Of Sc202S Ff/Pb Specification

    Specifications 2-15 2-12. Control Drawing of SC202S FF/PB Specification (FM Intrinsically safe FISCO) FM Class I, DIV. 1, Group ABCD Sensor T4 for ambient temp. 55 C Connections SC202S-F Max. cablelength: 60 mtr. or SC202S-P Cable dia. : 3…12 mm. Sensor Connections FM Approved...
  • Page 29 2-16 Specifications In each I.S. Fieldbus segment only one active source, normally the FM Approved FISCO barrier, is allowed to provide the necessary power for the Fieldbus system. All other equipment connected to the bus cable has to be passive (not providing energy to the system), except to a leakage current of 50μA for each connected device.

  • Page 30: Control Drawing Of Sc202S Ff/Pb Specification

    Specifications 2-17 2-13. Control Drawing of SC202S FF/PB Specification (FM Non-incendive Entity) FM Class I, DIV. 2, Group ABCD T4 for ambient temp. 55 C Sensor T6 for ambient temp. 40 C Connections SC202S-B Max. cablelength: 60 mtr. or SC202S-D Cable dia.: 3…12 mm.

  • Page 31: Control Drawing Of Sc202S Ff/Pb Specification

    2-18 Specifications 2-14. Control Drawing of SC202S FF/PB Specification (FM Non-incendive FNICO) FM Class I, DIV. 2, Group ABCD T4 for ambient temp. 55 C Sensor T6 for ambient temp. 40 C Connections SC202S-B Max. cablelength: 60 mtr. or SC202S-D Cable dia.: 3…12 mm.

  • Page 32: Control Drawing Of Sc202S Ff/Pb Specification (Csa)

    Specifications 2-19 2-15. Control Drawing of SC202S FF/PB Specification (CSA) CSA Ex ia Class I, DIV. 1, Group ABCD T4 for ambient temp. 55 C Ui = 24 V Ui = 17,5 V Ii = 250 mA Ii = 380 mA Pi = 1,2 W Pi = 5,32 W SC202S-F...
  • Page 33 2-20 Specifications IM 12D08B02-01E...

  • Page 34: Installation And Wiring

    Installation and wiring 3-1 3. INSTALLATION AND WIRING 3-1. Installation and dimensions 3-1-1. Installation site The EXA transmitter is weatherproof and can be installed inside or outside. It should, however, be installed as close as possible to the sensor to avoid long cable runs between sensor and transmitter. In any case, the cable length should not exceed 60 meters (200 feet).
  • Page 35 3-2 Installation and wiring Unit: mm (inch) (0.14) SPACING PANEL CUTOUT PANEL CUTOUT Fig. 3-2b. Panel mounting using two (2) self-tapping screws Unit: mm (inch) Pipe mounting Pipe mounting (Vertical) (Horizontal) (2.20) 2-Ø6.5 (0.26) (7.87) 4-Ø10 (0.4) (4.5) (2.75) Nominal 50 A (O.D. Ø60.5 mm) (2 inch pipe) 4.eps Figure 3-3.

  • Page 36: Preparation

    Installation and wiring 3-3 3-2. Preparation Refer to figure 3-4. The power/output connections and the sensor connections should be made in accordance with the diagram on page 3-6. The terminals are of a plug in style for ease of mounting. To open the EXA 202 for wiring: 1.

  • Page 37: Wiring Of Sensors

    HOLD FAIL MODE MEASURE AUT.CAL MAN.CAL YES NO DISPLA Y TEMP HOLD MODE > YOKOGAWA OUTPUT/SUPPLY INPUT SENSORS 2,5 or 10 m DISTRIBUTOR 1 8 0 Safety Barrier SC202S only RECORDER Figure 3-6. System configuration 3-3. Wiring of sensors 3-3-1. General precautions Generally, transmission of signals from SC sensors is at a low voltage and current level.

  • Page 38: Installation In: Hazardous Area-Non-Incendive

    Installation and wiring 3-5 3-3-3. Installation in: Hazardous Area-Non-Incendive The SC202S-N may be installed in a Category 3/ Zone 2/ Div.2 area without the use of safety barriers. Maximum permissible supply voltage 31.5V. 3-4. Wiring of power supply 3-4-1. General precautions WARNING Do not activate the power supply yet.

  • Page 39: Sensor Wiring

    The EXA SC202 can be used with a wide range of commercially available sensor types if provided with shielded cables, both from Yokogawa and other manufacturers. The sensor systems from Yokogawa fall into two categories, the ones that use fixed cables and the ones with separate cables.

  • Page 40: Other Sensor Systems

    Where a convenient installation is not possible using the standard cables between sensors and transmit- ter, a junction box and extension cable may be used. The Yokogawa BA10 junction box and the WF10 extension cable should be used. These items are manufactured to a very high standard and are neces- sary to ensure that the specifications of the system are not compromised.
  • Page 41 3-8 Installation and wiring TRANSMITTER / CONVERTER 15 Core 16 Screen White Co-axial cable Thermistor (Temperature sensor) 14 Overall Screen WF10 Cable 13 Core 17 Screen Secondary Coil Brown Co-axial Cable 11 Red Primary Coil 12 Blue Ground (Shield) Overall shield White Brown...
  • Page 42 Installation and wiring 3-9 Extension cable may be purchased in bulk quantities, cut to length. Then it is necessary to terminate the cable as shown below. Termination procedure for WF10 cable. 1. Slide 3 cm of heat shrink tube (9 x 1.5) over the cable end to be terminated. 2.

  • Page 43: Operation; Display Functions And Setting

    Operation 4-1 4. OPERATION; DISPLAY FUNCTIONS AND SETTING 4-1. Operator interface This section provides an overview of the operation of the EXA operator interface. The basic procedures for obtaining access to the three levels of operation are described briefly. For a step-by-step guide to data entry, refer to the relevant section of this user’s manual.

  • Page 44: Explanation Of Operating Keys

    4-2 Operation Fail flag Output hold flag Menu pointer flags Units MODE HOLD FAIL Main display Commissioning function menu MEASURE Message display OUTPUT DISPLAY SET HOLD YES NO HOLD TEMP. SERVICE Key prompt flags Commissioning MODE mode access key Selection keys YES : Accept setting NO : Change setting Measure/Maintenance...

  • Page 45: Setting Passcodes

    Operation 4-3 4-3. Setting passcodes 4-3-1. Passcode protection In Service Code 52, EXA users can set passcode protection for each one of the three operating levels, or for any one or two of the three levels. This procedure should be completed after the initial commis- sioning (setup) of the instrument.

  • Page 46: Display Functions

    4-4 Operation 4-5. Display functions Sequence for resistivity function is similar to this conductivity example. Display Functions (Sequence for resistivity function equals this conductivity example). μ S / c m cell constant Actual YES NO μ S / c m μ...

  • Page 47: Parameter Setting

    Parameter setting 5-1 5. PARAMETER SETTING 5-1. Maintenance mode 5-1-1. Introduction Standard operation of the EXA instrument involves use of the Maintenance (or operating) mode to set up some of the parameters. Access to the maintenance mode is available via the six keys that can be pressed through the flexible window in the instrument front cover.

  • Page 48: Commissioning Mode

    5-2 Parameter setting 5-2. Commissioning mode 5-2-1. Introduction In order to obtain peak performance from the EXA SC202, you must set it up for each custom applica- tion. *OUTP : mA output is set as default to 0-1 mS/cm or 0-19.99 MΩ·cm. For enhanced resolution in more stable measuring processes, it may be desirable to select for example 5-10 μS/cm range.

  • Page 49: Range

    Parameter setting 5-3 5-2-2. Range MODE MEASURE OUTPUT DISPLAY SET HOLD HOLD TEMP. SERVICE MODE IM 12D08B02-01E...

  • Page 50: Hold

    5-4 Parameter setting 5-2-3. HOLD MODE MEASURE OUTPUT DISPLAY SET HOLD HOLD TEMP. SERVICE HOLD HOLD HOLD YES NO Set HOLD "fixed value" HOLD HOLD YES NO YES NO HOLD active last measured value. IM 12D08B02-01E...

  • Page 51: Temperature Compensation

    Parameter setting 5-5 5-2-4. Temperature compensation 1. Why temperature compensation? The conductivity of a solution is very dependent on temperature. Typically for every 1 °C change in temperature the solution conductivity will change by approximately 2 %. The effect of temperature varies from one solution to another and is determined by several factors like solution composition, concentra- tion and temperature range.

  • Page 52: Temperature Compensation Selection

    5-6 Parameter setting 5-2-5. Temperature compensation selection MODE MEASURE OUTPUT DISPLAY SET HOLD HOLD TEMP. SERVICE After briefly displaying *WAIT* it will be possible to adjust the display reading to the correct value using > ENT keys. μ S / c m YES NO YES NO Briefly...

  • Page 53: Service Code

    Parameter setting 5-7 5-2-6. Service code The figure below shows a typical button sequence to change a setting within the service menu. The specific settings are listed in numerical sequence on the following pages. On the page facing the setting tables are concise explanations of the purpose of the service codes.

  • Page 54: 5-3.Service Codes

    5-8 Parameter setting 5-3. Service Codes Don't set or input service code numbers other than the code numbers defined in this manual. Setting an undefined service code may make the transmitter malfunction. When an undefined service code is input by some accident, push the MODE key and escape from the service level.
  • Page 55 Parameter setting 5-9 Code Display Function Function detail Default values Parameter specific functions *SC.RES Select main parameter Conductivity Cond. Resistivity *4.ELEC Select 2/4-EL system 2-Electrode measurement system 2-El. 4-Electrode measurement system 0.10xC Set cell constant Press NO to step through choice of 1.000 cm multiplying factors on the second display.

  • Page 56: Temperature Measuring Functions

    5-10 Parameter setting 5-3-2. Temperature measuring functions Code 10 *T.SENS Selection of the temperature compensation sensor. The default selection is the Pt1000 Ohm sensor, which gives excellent precision with the two wire connections used. The other options give the flexibility to use a very wide range of other conductivity/resistivity sensors.
  • Page 57 Parameter setting 5-11 Code Display Function Function detail Default values Temperature measuring functions *T.SENS Temperature sensor Pt1000Ω Pt1000 Ni100Ω Pb36 (PB36NTC) Pt100Ω 8k55 (8.55kΩNTC) *T.UNIT Display in °C or °F °C °C °F *T.ADJ Calibrate temperature Adjust reading to allow for cable None resistance.

  • Page 58: Temperature Compensation Functions

    5-12 Parameter setting 5-4. Temperature compensation functions Code 20 *T.R.°C Choose a temperature to which the measured conductivity (or resistivity) value must be compensated. Normally 25°C is used, therefore this temperature is chosen as default value. Limitations for this setting are: 0 to 100 °C. If *T.UNIT in code 11 is set to °F, default value is 77°F and the limitations are 32 - 212°F.
  • Page 59 Parameter setting 5-13 Code Display Function Function detail Default values Temperature compensation functions *T.R.°C Set reference temp. Use >, ^, ENT keys to set value 25 °C *T.C.1 Set temp. coef. 1 Adjust compensation factor 2.1 % if set to TC in section 5-2-5. per °C Set value with >, ^, ENT keys *T.C.2...

  • Page 60: Ma Output Functions

    5-14 Parameter setting 5-5. mA output functions Code 31 *OUTP.F For the SC202 the output may be chosen as linear to input, or configured in a 21 point table to a particular linearization. Enable the table setup in code 31, and configure the table in code 35.
  • Page 61 Parameter setting 5-15 Code Display Function Function detail Default values mA Outputs Not used *OUTP.F mA output functions Linear Linear Table *BURN Burn function No burnout No Burn. Burnout downscale Burnout upscale Pulse burnout 33, 34 Not used *TABLE Output table for mA Linearization table for mA in 5% steps.

  • Page 62: User Interface

    5-16 Parameter setting 5-6. User interface Code 50 *RET. When Auto return is enabled, the transmitter reverts to the measuring mode from anywhere in the configuration menus, when no button is pressed during the set time interval of 10 minutes. Code 52 *PASS Passcodes can be set on any or all of the access levels, to restrict access to...
  • Page 63 Parameter setting 5-17 Code Display Function Function detail Default values User interface *RET. Auto return Auto return to measuring mode Off Auto return to measuring mode On Not used *PASS Passcode Maintenance passcode Off 0.0.0 Off Note # = 0 - 9, where Maintenance passcode On Commissioning passcode Off 1=111, 2=333, 3=777 Commissioning passcode On...

  • Page 64: Communication Setup

    5-18 Parameter setting 5-7. Communication setup Code 60 *COMM. The settings should be adjusted to suit the communicating device connected to the output. The communication can be set to HART® or to PH201*B distributor (see Appendix 2). *ADDR. Select address 00 for point to point communication with 4-20mA transmission. Addresses 01 to 15 are used in multi-drop configuration (fixed 4mA output).
  • Page 65 Parameter setting 5-19 Code Display Function Function detail Default values Communication *COMM. Communication Set HART® communication Set HART® communication Set communication PH201*B On Communication write enable Write Communication write protect enable *ADDR. Network address Set address 00 to 15 *HOUR Clock setup Adjust to current date and time using *MINUT...

  • Page 66: Calibration

    6. CALIBRATION 6-1 When is calibration necessary? Calibration of conductivity/resistivity instruments is normally not required, since Yokogawa delivers a wide range of sensors, which are factory calibrated traceable to NIST standards. The cell constant values are normally indicated on the top of the sensor or on the integral cable. These values can be entered directly in service code 03 (section 5-3-1).

  • Page 67: Calibration Procedure

    6-2 Calibration 6-2. Calibration procedure Press the MODE key. MODE The legend CALIB appears, and the YES/NO key prompt flags flash. MEASURE DISPLAY HOLD MODE MODE Put the sensor in standard solution. Press YES. After the indication is stable, set the value using the >, , ENT key.

  • Page 68: Calibration With Hold Active

    Calibration 6-3 6-3. Calibration with HOLD active Press the MODE key. MODE The legend CALIB appears, and the YES/NO key prompt flags flash. MEASURE DISPLAY HOLD MODE MODE HOLD HOLD HOLD HOLD Put the sensor in standard solution. Press YES. HOLD set the value After the indication is stable,...

  • Page 69: Maintenance

    The EXA instrument contains a lithium cell to support the clock function when the power is switched off. This cell needs to be replaced at 5 yearly intervals (or when discharged). Contact your nearest Yokogawa service centre for spare parts and instructions. 7-2. Periodic maintenance of the sensor NOTE: Maintenance advice listed here is intentionally general in nature.

  • Page 70: Troubleshooting

    Troubleshooting 8-1 8. TROUBLESHOOTING The EXA SC202 is a microprocessor-based analyzer that performs continuous self-diagnostics to verify that it is working correctly. Error messages resulting from faults in the microprocessor systems itself are few. Incorrect programming by the user can be corrected according to the limits set in the following text. In addition, the EXA SC202 also checks the sensor to establish whether it is still functioning within speci- fied limits.
  • Page 71 Too high zero due to cable capacitance Replace cable EEPROM write failure Fault in electronics Try again, if unsuccessful con- tact Yokogawa USP limit exceeded Poor water quality Check ion exchangers Cable resistance influence to temperature Cable resistance too high Check cable exceeds +/- 15°C...

  • Page 72: Usp Water Purity Monitoring

    USP 9-1 9. USP WATER PURITY MONITORING 9-1. What is USP ? USP stands for United States Pharmacopeia and it is responsible for issuing guidelines for the pharma- ceutical industry. Implementing these guidelines is highly recommended for companies wishing to mar- ket drugs in the US.

  • Page 73: 9-4.Setting Up Sc202 For Usp

    9-2 USP 9-4. Setting up SC202 for USP First enable USP in service code 57. Change the setting from 0 (default) to 1 (enabled). This activates uncompensated conductivity in the display menu. The E13 feature is also enabled. For E13 the FAIL flag is triggered when the uncompensated conductivity exceeds the relevant value in the graph.

  • Page 74: Spare Parts

    Spare Parts 10-1 10. SPARE PARTS See Customer Maintenance Parts List. IM 12D08B02-01E...

  • Page 75: User Setting For Non-Linear Output Table (Code 31And 35)

    Appendix 1-1 11. APPENDIX 1 11-1. User setting for non-linear output table (code 31and 35) Output signal value Output 4-20 00.4 04.8 05.6 06.4 07.2 00.8 08.8 09.6 10.4 11.2 0.12 12.8 13.6 14.4 15.2 0.16 16.8 17.6 18.4 19.2 20.0 11-2.

  • Page 76: Matrix Data Table (User Selectable In Code 22)

    1-2 Appendix 11-3. Matrix data table (user selectable in code 22) Matrix, Solution Temp (°C) Data 1 Data 2 Data 3 Data 4 Data 5 0 ppb 4 ppb 10 ppb 20 ppb 100 ppb HCL-p (cation) selection 1 0.0116 μS 0.0228 μS 0.0472 μS 0.0911μS...

  • Page 77: Sensor Selection

    Appendix 1-3 11-4. Sensor Selection 11-4-1. General The inputs of the EXA transmitter are freely programmable for ease of installation. Standard 2-electrode type sensors with a cell constant of 0.100/cm and a Pt1000 temperature sensor, need no special pro- gramming. The EXA indicates a fault with a signal in the display field if there is a mismatch of sensors in the connection.

  • Page 78: User Setting Table

    1-4 Appendix 11-6. User setting table FUNCTION SETTING DEFAULTS USER SETTINGS Parameter specific functions *SC.RES *4.ELEC 2-Elec. *0.10xC 0.10xC Factor 1.000 *AIR *POL.CK Temperature measuring functions *T.SENS Pt1000 *T.UNIT °C *T.ADJ None Temperature compensation functions *T.R.°C °C *T.C.1 %/°C *T.C.2 %/°C *MATRX None, see 5-2-5...
  • Page 79 Appendix 1-5 FUNCTION SETTING DEFAULTS USER SETTINGS User Interface *RET *PASS 0.0.0 all off *Err.01 hard fail *Err.05 hard fail *Err.06 hard fail *Err.07 hard fail *Err.08 hard fail *Err.13 soft fail *E5.LIM (0.004) kΩ *E6.LIM 1.000 μS (1.0) MΩ *0 % 100% 100.0...

  • Page 80: Error Codes

    Too high zero due to cable capacitance Replace cable EEPROM write failure Fault in electronics Try again, if unsuccessful con- tact Yokogawa USP limit exceeded Poor water quality Check ion exchangers Cable resistance influence to temperature Cable resistance too high Check cable exceeds +/- 15°C...

  • Page 81: Device Description (Dd) Menu Structure

    11-8. Device Description (DD) menu structure The Device Description (DD) is available from Yokogawa or the HART foundation. An example is shown below of the ON LINE menu structure. This manual makes no attempt to explain the operation of the Hand Held Terminal (HHT).
  • Page 82 3. Service 8. Dev id 9. Write protect Note: Universal rev “Fmt” means displayed decimal point. Fld dev rev Software rev Hardware rev Poll addr Num req preams (Note): HART protocol DD files can be downloaded by following URL. http://www.yokogawa.com/an/download/an-dl-fieldbus-001en.htm IM 12D08B02-01E...

  • Page 83: Preface

    12. APPENDIX 2 12-1. Preface Feasible combinations of the SC202G conductivity transmitters with different styles of the PH201G dis- tributor are listed in the table below. The distributor has the usual distributor functions (supply power to transmitter, receive current output from transmitter, and provide analog output) as well as contact output functions (maintenance, wash and fail status signals).

  • Page 84: Wiring Diagrams

    2-2 Appendix 12-2. Wiring diagrams 1. Example of Non-Explosionproof System (a) SC210G-A or SC210G-B SC210G–A, SC210G–B SC202G PH201G (Style B) Conductivity sensor Conductivity transmitter Dedicated distributor for EXA202 SDBT distributor Temper- Output Output ature – – (1 to 5V DC) (1 to 5V DC) –...
  • Page 85 Appendix 2-3 Cables, terminals and glands The SC202 is equipped with terminals suitable for the connection of finished cables in the O.D. range: 6 to 12 mm. The glands will form a tight seal on cables with an outside diameter in the range of 6 to 12 mm.

  • Page 86: Sensor Wiring

    Yokogawa and other manufacturers. The sensor systems from Yokogawa fall into two categories, the ones that use fixed cables and the ones with separate cables.

  • Page 87: Supplement Of Parameter Setting

    Appendix 2-5 12-4. Supplement of parameter setting 12-4-1. Set cell constant (service code 03) Code 3 *0.10xC First select a multiplying factor, and then set the constant in consideration of this fac- tor. The position of the decimal point can be selected after the first digit has been set (when the decimal point is flashing).

  • Page 88: Error Setting (Service Code 53)

    2-6 Appendix 12-4-4. Error setting (service code 53) Code 53 *Err01 to 13 Error message configuration: Two different types of failure mode namely, Hard fail and Soft fail can be set. Hard fail gives a steady FAIL flag in the display. When the distributor PH201G (Style B) is used and its communication is enabled in Service Code 60, the fail contact of PH201G (Style B) is closed.

  • Page 89: Appendix 3 Quality Inspection

    Appendix 3-1 13. APPENDIX 3 QUALITY INSPECTION 13-1. SC202G 2-Wire Conductivity Transmitter Quality SC202G, SC202SJ Inspection 2-Wire Conductivity Transmitter Standards Scope This inspection standard applies to the SC202/SC202SJ 2-Wire Conductivity Transmitter. Inspection Items 2.1 Insulation resistance test 2.2 Current output test 2.3 Temperature indication check...
  • Page 90 3-2 Appendix (9) After the test at 20 mA, press the [ENT] key twice. Table 1 Current output (mA) Current output (mA DC) 4 ±0.02 12.0 12 ±0.02 20.0 20 ±0.02 Temperature Indication Check (1) Check that the temperature sensor type indicated on the message display is “Pt1000.” (2) Change the value of the decade resistance box 1 (temperature) as shown in Table 2 and check the data display.
  • Page 91 Appendix 3-3 SC202G, SC202SJ SUPPLY SENSOR Note 1 Milli- ammeter Decade Decade Box 1 Box 2 DC source Ground 24V DC Note 1: Cable connected to sensor input should be conductivity detector cable of length 2.1 ±0.1 m. Connect pins 13 and 14, also 15 and 16, to Decade box 2 terminals.
  • Page 92 3-4 Appendix IM 12D08B02-01E...

  • Page 93: Sc202S 2-Wire Conductivity Transmitter

    Appendix 3-5 13-2. SC202S 2-Wire Conductivity Transmitter Quality SC202S Inspection 2-Wire Conductivity Transmitter Standards Scope □ This inspection standard applies to the SC202 2-Wire Conductivity Transmitter. Inspection Items 2.1 Insulation resistance test * 2.2 Dielectric strength test 2.3 Current output test 2.4 Temperature indication check 2.5 Resistance (conductivity) check Note: Items marked with an asterisk (*) may only be confirmed by a test certificate.
  • Page 94 3-6 Appendix (3) Press the [ENT] key. (The date in day-month-year (last 2 digits) order will appear.) (4) Press the [ENT] key. (The time in hour-minute-second order will appear.) (5) Press the [ENT] key. (6) When the message display shows “4 (mA),” the output current must be within the range shown in Table 1.
  • Page 95 Appendix 3-7 Table 3 Message display Decade box 2 resistance Data display RES.1 10.00 ±0.05 RES.2 100.0 ±0.5 RES.3 1.000 ±0.005 k RES.4 10 k 10.00 ±0.05 k RES.5 100 k 100.0 ±0.5 SC202S SUPPLY SENSOR Note 1 Milli- ammeter Decade Decade Box 1...
  • Page 96 3-8 Appendix IM 12D08B02-01E...

  • Page 97: Sc202G, Sc202S 2-Wire Conductivity Transmitter

    SC202G, SC202S Inspection 2-Wire Conductivity Transmitter (Fieldbus Communication) Standards Scope This inspection standard applies to the SC202G and SC202S 2-Wire Conductivity Transmitters (Fieldbus specification). Inspection Items 2.1 Insulation resistance test * 2.2 Dielectric strength test 2.3 Temperature indication check 2.4 Conductivity indication check * 2.5 Fieldbus communication functional check...
  • Page 98 1 ±0.005 mS/cm 100 μS/cm 100 ±0.5 μS/cm 10 μS/cm 10 ±0.05 μS/cm 10 k 1 μS/cm 100 k 1 ±0.005 μS/cm Fieldbus Communication Functional Check Check for normal function using Fieldbus equipment specified by Yokogawa. QIS 12D08B02-61E IM 12D08B02-01E...
  • Page 99 Appendix 3-11 Figure 1 Testing Circuit and Test Equipment QIS 12D08B02-61E IM 12D08B02-01E...
  • Page 100 3-12 Appendix IM 12D08B02-01E...

  • Page 101: Sc202G, Sc202S 2-Wire Conductivity Transmitter

    SC202G, SC202S Inspection 2-Wire Conductivity Transmitter (Profibus Communication) Standards Scope This inspection standard applies to the SC202G and SC202S 2-Wire Conductivity Transmitters (Profibus specification). Inspection Items 2.1 Insulation resistance test * 2.2 Dielectric strength test 2.3 Temperature indication check 2.4 Conductivity indication check * 2.5 Profibus communication functional check...
  • Page 102 3-14 Appendix In this state, change the resistance value of the decade resistance box 1 as shown in Table 1. The corresponding temperature indication must be within the range. Table 1 Temperature Indication Check Reference Resistance of Indication Range Temperature Resistance Box 1 –10 °C 960.9...
  • Page 103 Appendix 3-15 Profibus Communication Functional Check Check for normal function using Profibus equipment specified by Yokogawa. In the tests of Item 3.3 to 3.4, check the communication function using Profibus communication. SC202 SUPPLY TEMP – Decade Decade Resistance Resistance Box 1...
  • Page 104 3-16 Appendix IM 12D08B02-01E...

  • Page 105: Parts List

    Customer Model SC202G [Style: S3] Maintenance Conductivity and Resistivity Transmitter Parts List Item Part No. Description Cover Assembly K9315CA Polyurethane Coating K9315CN Epoxy-polyester Coating Internal Works Assembly with amplifier assembly K9661CD For mA + HART K9661CE For FF K9661CF For Profibus...
  • Page 106 Pipe/Wall Mounting Hardware (Option Code : /U) Panel Mounting Hardware (Option Code : /SCT) Option Code : /H Hood to sun protection (Option Code : /PM) Item Parts No. Description K9171SS Universal Mount Set (/U) K9311BT Tag Plate (/SCT) K9311KA Fitting Assembly (/PM) K9311KG Hood Assembly (/H)
  • Page 107 Customer Model SC202S [Style : S3] Maintenance Conductivity and Resistivity Transmitter Parts List Item Part No. Description Cover Assembly K9315CA Polyurethane Coating K9315CN Epoxy-polyester Coating Internal Works Assembly with amplifier assembly For mA + HART For FF For Profibus For mA + HART (Non-incendive) Housing Assembly Polyurethane Coating Epoxy-polyester Coating...
  • Page 108 Pipe/Wall Mounting Hardware (Option Code : /U) Panel Mounting Hardware (Option Code : /SCT) Option Code : /H Hood to sun protection (Option Code : /PM) Item Parts No. Description K9171SS Universal Mount Set (/U) K9311BT Tag Plate (/SCT) K9311KA Fitting Assembly (/PM) K9311KG Hood Assembly (/H)

  • Page 109: Revision Record

    Intrinsically safe type transmitter SC202SJ [Style: S1] added. Mar. 2007 All over revised. SC202SJ’s IM separated to IM 12D08B02-11E. Style of SC202G changed to S3, style of SC202S changed to S2. Oct. 2007 PREFACE-1, Some of warning description modified; P. 1-1, Some of nameplate in Figure 1-1 changed;...
  • Page 110 Edition Date Remark (s) Oct. 2009 PREFACE, "Zone 0" added to Warning label explanation; P.1-1, Name plate of SC202S-K (NEPSI) added to Figure 1-1; P.2-2, Some revision of I. Regulatory compliance (description for EMC revised); P.2-3 to 2-4, Some revision of IECEx Intrinsically safe description ("Zone 0"...
