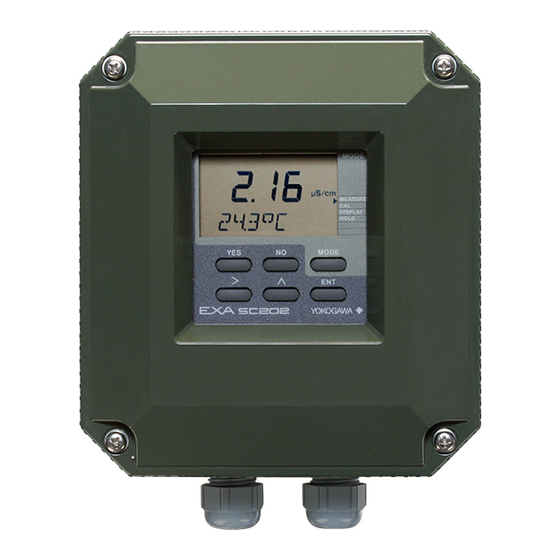

Thank you for selecting our Model SC202G [Style: S3] and/or SC202S [Style: S3] 2-Wire Conductivity or

Resistivity Transmitter.

User's Manual, IM 12D08B02-01E, 8th Edition, supplied with the product, some revisions/additions have been

made. Please replace the corresponding pages in your copy with the attached, revised pages.

Revisions:

- PREFACE, "How to dispose the batteries" added.

- Page 2-2, Description of Profibus added to EMC conformity standard.

- Last page, Added of KC mark.

Model SC202G [Style: S3], SC202S [Style: S3]

2-wire Conductivity or

Resistivity Transmitter

Subject to change without notice.

Supplement

IM 12D08B02-01E

8th Edition
