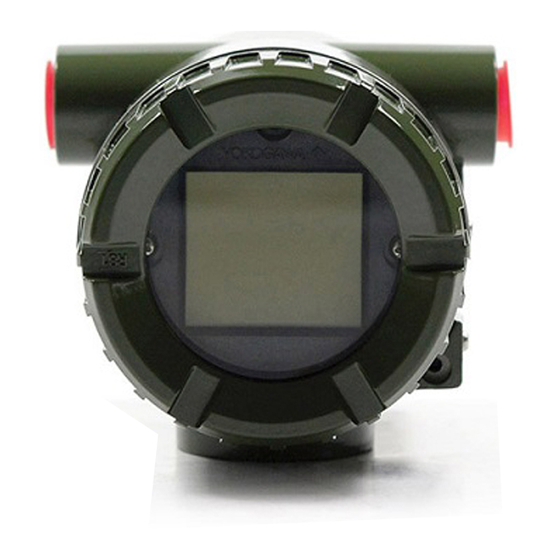

YOKOGAWA YTA110 User Manual

User's
Manual
Please use this manual change with the user's manuals listed below.
1. Applicable Users' Manual and Page
IM 01C50B01-01E (16th)
Item Page
1 1-1
1 1-1
2.7.1 b) 2-4
2.7.2 (1) 2-6, 2-7
a) b) c)
2.7.2 (6) 2-9
2.7.3 c) 2-11
2.7.5 c) 2-14
IM 01C50T02-01E (9th)
Item Page
8.1.2 (1) A) 8-2
8.1.2 (6) 8-7
8.1.4 (1) A) 8-11
9.2 9-2
YTA Series
Temperature Transmitters

Applicable part and revised contents

Preface

See 2.1 information to be added (1)

For Safe Use of Product

See 2.2 information to be added (2)
CSA Explosionproof Type
Type 4X→TYPE 4X
ATEX Intrinsically Safe "ia"
ATEX Flameproof Type and Dust Ignition Proof Type
ATEX Intrinsically Safe "ic"
See 2.3 Change applicable standards and
Type of Protection and Marking Code
Name Plate
See 2.5 Change Name Plate
FM Explosionproof Type
NEMA-250→ANSI/NEMA 250, NEMA 4X→TYPE 4X
IM 1C50B1→IM 01C50B01-01EN
IECEx Flameproof Type and Dust Ignition Proof Type
See 2.3 Change applicable standards and
Type of Protection and Marking Code
Applicable part and revised contents
ATEX Flameproof Type and Dust Ignition Proof Type
See 2.3 Change applicable standards and
Type of Protection and Marking Code
Name Plate
See 2.5 Change Name Plate
IECEx Flameproof Type and Dust Ignition Proof Type
See 2.3 Change applicable standards and
Type of Protection and Marking Code
Optional Specifications
See 2.4 KS25 pending the sale to EEA market
Manual Change No. 16-007-2
Jan. 1, 2017
