YOKOGAWA Dpharp vigilantplant EJA510A User Manual

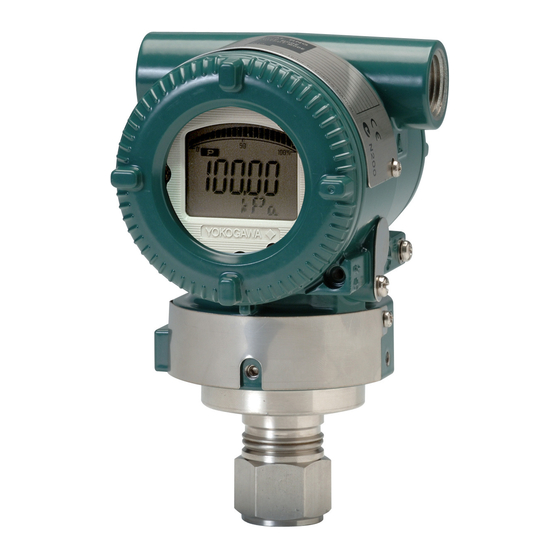

Absolute pressure and gauge pressure transmitters (style: s2)
Hide thumbs Also See for Dpharp vigilantplant EJA510A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
User's
Manual
Yokogawa Electric Corporation
Model EJA510A and EJA530A
Absolute Pressure and
Gauge Pressure Transmitters
[Style: S2]
IM 01C21F01-01E
IM 01C21F01-01E
7th Edition
