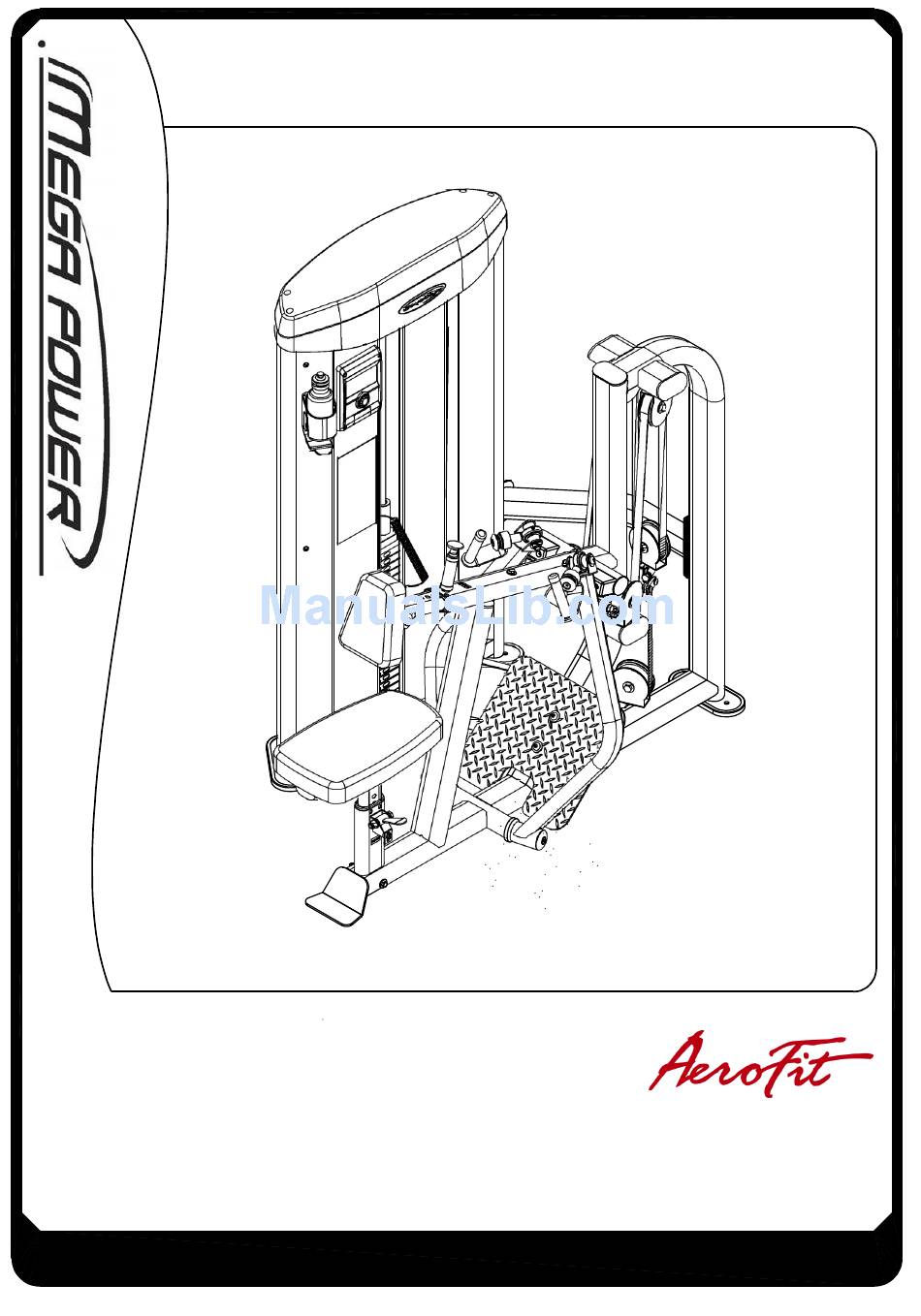

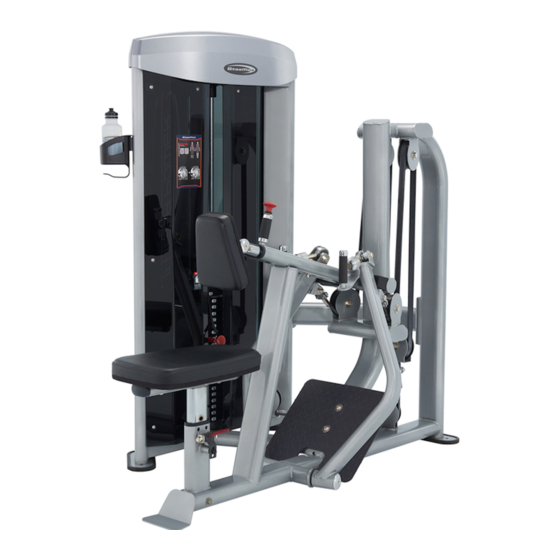

- Page 1 Официальный представитель: ООО «СпортРус» 117105, Российская Федерация, г.Москва, Варшавское шоссе, д.33 Телефон: (495) 276 27 26, 221 26 29 www.aerofit.ru MRM-1700 OWNER'S MANUAL...
- Page 2 MRM1700 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)ROUND INNER HEX SCREW 1/2"x3-3/4"L PARTIAL QTY.4 (A2)HEX BOLT 1/2"x2-3/4"L PARTIAL THREAD QTY.6 (A3)HEX BOLT 1/2"x2-1/2"L PARTIAL THREAD QTY.2 (A4)HEX BOLT 5/16"x2-1/4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 5/16""x1"L PARTIAL THREAD QTY.4 inch 1" 2" 3" 4"...
- Page 3 MRM1700 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C4)5/16"(I.D.)FLAT WASHER Ø18 QTY.4 (B1)NYLON LOCK NUT 1/2" QTY.12 (C1)1/2"(I.D.)FLAT WASHER Ø34 QTY.20 (C5)SPRING WASHER 5/16" QTY.6 (C2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (C3)5/16"(I.D.)FLAT WASHER Ø24 QTY.2 inch 1" 2" 3" 4" 5" 6" MRM1700-022010 Page...
- Page 4 MRM1700 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA1)HEX BOLT 1/2"x2-3/4"L PARTIAL QTY.3 (AA2)ROUND INNER HEX SCREW M10x40L PARTIAL THREAD QTY.1 (AA3)ROUND INNER HEAD 3/8"x2"L PARTIAL QTY.1 (AA4)ROUND INNER HEX SCREW M6x16L PARTIAL THREAD QTY.16 inch 2" 1" 3" 4" 5" 6" MRM1700-022010 Page...
- Page 5 MRM1700 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (BB1)NYLON LOCK NUT 1/2" QTY.3 (AA5)10LB PIN(8250-128) QTY.1 (AA6)ELASTIC BELT QTY.1 (BB2)NYLON LOCK NUT M10 QTY.1 inch 1" 2" 3" 4" 5" 6" MRM1700-022010 Page...
- Page 6 MRM1700 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (CC1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (CC5)SPRING WASHER 3/8" QTY.1 (CC2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (CC3)M6(I.D.)FLAT WASHER Ø19 QTY.2 (CC4)M10(I.D.)FLAT WASHER Ø19 QTY.16 inch 1" 2" 3" 4" 5" 6" MRM1700-022010 Page...
- Page 7 MRM1700 ASSEMBLY INSTRUCTIONS FARME HARDWARE ILLUSTRATION DD1.Ø3/4" SHAFT COLLAR(9211-147)------------------------------------------- [2PCS] DD2.Ø4" RUBBER COUNT(9310-017)-------------------------------------------- [2PCS] DD3.108X14.5tX263L RUBBER PAD(9310-075)-------------------------------- [2PCS] DD4.Ø115X50L PULLEY(9213-042B)---------------------------------------------- [2PCS] DD5.Ø115X50L PULLEY(9213-042A)---------------------------------------------- [1PCS] DD6.BOTTLE BRACKET(8388-025)------------------------------------------------ [1PCS] DD7.BOTTLE RACK(9260086-19)-------------------------------------------------- [1PCS] DD8.BOTTLE(9260-123)--------------------------------------------------------------- [1PCS] DD9.TOP PLATE(8400-019)------------------------------------------------------------- [1PCS] DD10.WEIGHT SELECTOR BAR(8210-042C)-------------------------------------- [1PCS] DD1. DD2.
- Page 8 MRM-1700 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1.Ø50 CAP COVER(8130-131)----------------------------------------- [2PCS] D2.Ø60 CAP COVER(8130-231)----------------------------------------- [2PCS] D3.40X80X2t END CAP(9211-113)-------------------------------------- [2PCS] D4.50X100X56 RUBBER PAD(9214-038)----------------------------- [2PCS] D5.108X15tX263L RUBBER PAD(9310-075)------------------------- [1PCS] D6.Ø115X50L PULLEY(9213-042B)------------------------------------- [6PCS] D7.3950mm (FMRM1700A)------------------------------------------------ [1PCS] D8.3750mm (FMRM1700B)------------------------------------------------ [1PCS] NO MAGNET MRM1700-022010 Page...
- Page 9 MRM1700 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A [1SET] B [1SET] C [1SET] D [1SET] E [1SET] F [1SET] G [1SET] H [1SET] I [1SET] 8370-038 6680-011 6440-012 J [1SET] K[1SET] L[3PCS] 8312-062 8220-181(Ø1"X98L) 8311-117 MRM1700-022010 Page...
- Page 10 MRM-1700 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET O [1PCS] M [2SET] N [1SET] 9420-059 8311-116 8313-144 P [1PCS] Q [1SET] 9121-079 9131-026 MRM1700-022010 Page...
- Page 11 MRM1700 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AA [1SET] AB [1SET] AC [1PCS] 6610-013 2255027 9220-016 AD [1PCS] AE [1SET] AF [1SET] 9220-015 9220-023 9211-148 AG [4SET] AH [1SET] AI [1SET] 8331-057 8313-169 6640-015 AJ [2PCS] AK[1PCS] AL[3SET] 5313-T002 8331-056 8331-058 Ø3/4"X1.6tX1433L MRM1700-022010...
- Page 12 MRM1700 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AM [2PCS] AN [2PCS] AO [1PCS] 8313-144 8311-119 8311-120 AP [1SET] 8311-117 MRM1700-022010 Page...
- Page 13 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10X25L CONE SCREW X4 MRM1700-022010 Page...
- Page 14 MRM-1700 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1"L HEX BOLT 1/2" WASHER-Ø25 1/2"X1"L HEX BOLT 1/2" WASHER-Ø34 D4X2 1/2"X1"L HEX BOLT X4 1/2" WASHER-Ø25 4 3/8"X2"L ROUND INNER HEAD X4 M10X25L CONE SCREW X4 MRM1700-022010 Page...
- Page 15 MRM-1700 ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed M10X25L CONE SCREW X2 MRM1700-022010 Page...
- Page 16 MRM-1700 ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed C4X4 C5X4 A5X4 C3X2 C5X2 A4X2 M10X25L CONE SCREW X4 M10X25L CONE SCREW X4 MRM1700-022010 Page...
- Page 17 MRM-1700 ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed B1X2 C2X2 C2X2 A3X2 M10X25L ROUND BOLT X4 The tread side M10 SPRING WASHER X4 should be outward MRM1700-022010 Page...
- Page 18 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Detect the distance 5mm CC4X8 AJX2 DD4X2 AA4X8 DETAIL VIEW 9542-145-line link AI M5X12L ROUND BOLTX4 M5 WASHER-Ø14 X4 Attention: Do not touch the sensor bracket (AI) AA4X6 CC4X6 during weight stack installation MRM1700-022010 Page...
- Page 19 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed DD10 M10X25L CONE SCREW 8130-231 8520-008 6640-011 8520-008 MRM1700-022010 Page...
- Page 20 MRM-1700 ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed M10 SPRING WASHER X2 M10X25L ROUND BOLT X2 The tread side should be outward MRM1700-022010 Page...
- Page 21 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed The tread side should be outward M10X25L ROUND BOLT X2 M10 SPRING WASHER X2 DETAIL VIEW Adjust Belt Procedure: 1. Lift the selector rod a little and then insert the pin between first weight stack and top plate (Do not insert though the first hole of the rod), and there are 10 mm gap between top plate and first...
- Page 22 MRM1700 ASSEMBLY INSTRUCTIONS 9542-145-line link AI Above shows STEP 10 assembled and completed 9542-148-line link 9545-034 STEP1. STEP2. 9545-034-line 9542-145-line M4X12L ROUND BOLT X6 M6X12L ROUND BOLT X9 M6 WASHER Ø14 X9 MRM1700-022010 Page...
- Page 23 ASSEMBLY INSTRUCTIONS MRM1700 Material detail drawing of line 9542-145-LINE JST-XHP-9 JST-XHP-9 1700 BLACK BLACK PLAM PLAM ORANGE ORANGE YELLOW YELLOW GREEN GREEN BLUE BLUE PURPLE PURPLE GREY GREY 9542-148-LINE JST-XHP-3 JST-SMP-03V-BC A:HOLE COLOR B:HOLE COLOR BLACK BLACK PALM PLAM MRM1700-022010 16.1 Page...
- Page 24 MRM1700 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9545-034-LINE JST-SMR-03V-B MRM1700-022010 16.2 Page...
- Page 25 MRM1700 ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed M10X12L ROUND INNER HEAD X4 MRM1700-022010 Page...
