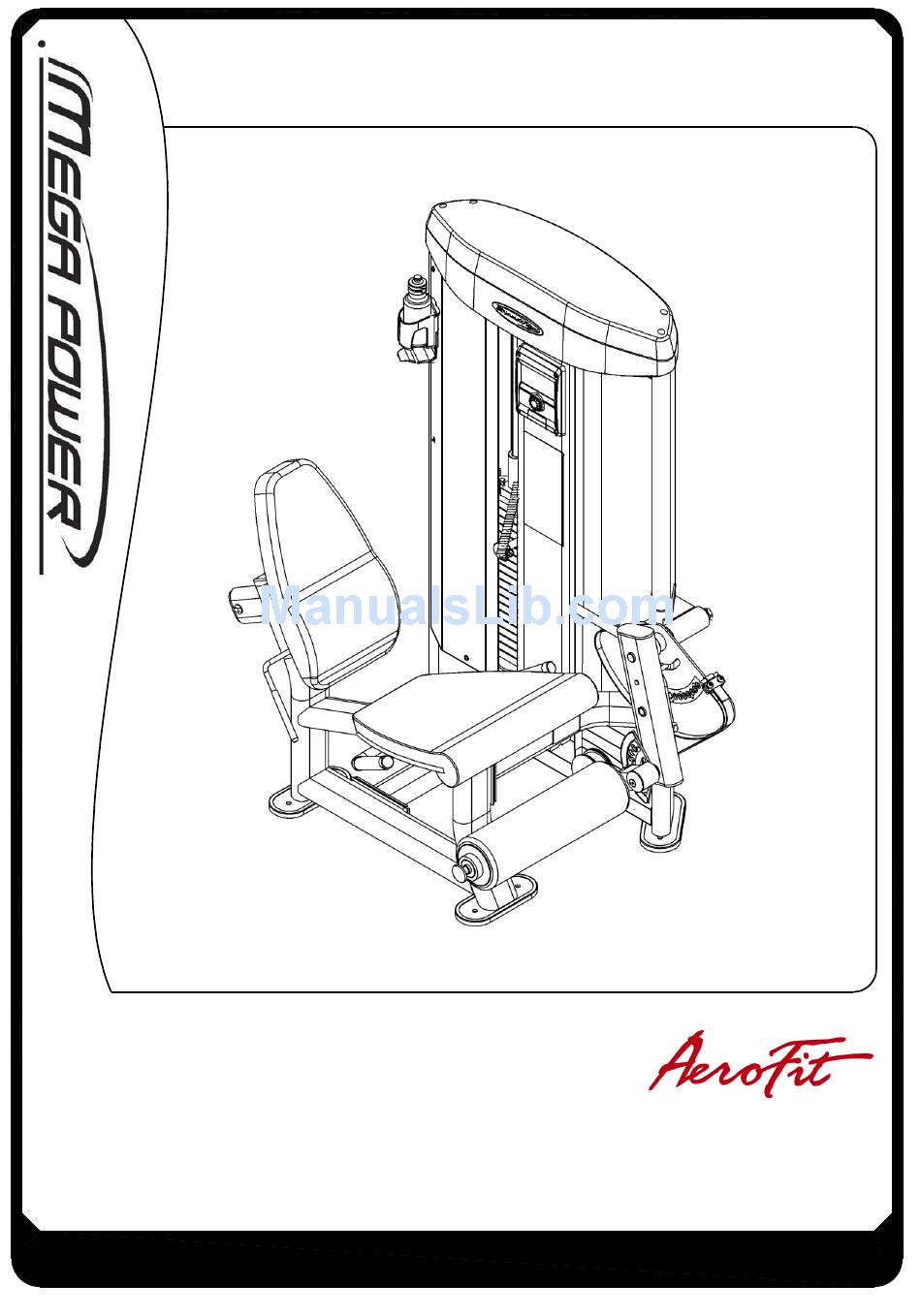

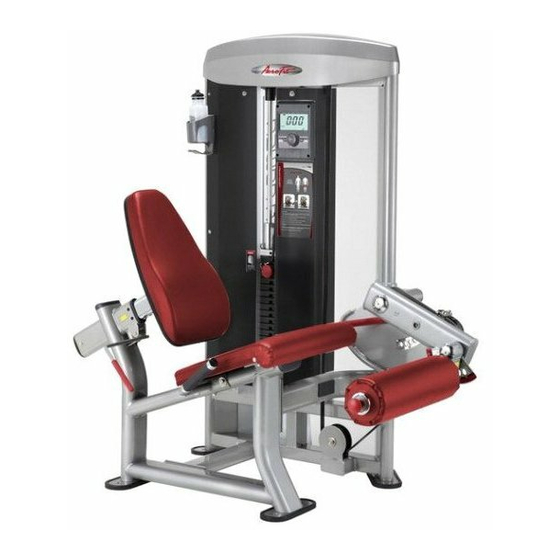

- Page 1 Официальный представитель: ООО «СпортРус» 117105, Российская Федерация, г.Москва, Варшавское шоссе, д.33 Телефон: (495) 276 27 26, 221 26 29 www.aerofit.ru MLE-200 OWNER'S MANUAL...
- Page 2 MLE200 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x5-3/4"L PARTIAL QTY.2 (A2)HEX BOLT 3/8"x1-1/2"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 5/16"x3"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 5/16"x2-1/4"L PARTIAL THREAD QTY.1 (A5)HEX BOLT 5/16""x1"L PARTIAL THREAD QTY.6 inch 1" 2" 3" 4" 5" 6"...
- Page 3 MLE200 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (B1)NYLON LOCK NUT 1/2" QTY.2 (C2)3/8"(I.D.)FLAT WASHER Ø19 QTY.2 (B2)NYLON LOCK NUT 3/8" QTY.1 (C3)5/16"(I.D.)FLAT WASHER Ø24 QTY.9 (B3)NYLON LOCK NUT 5/16" QTY.1 (C4)SPRING WASHER 5/16" QTY.7 inch 1" 2" 3" 4"...
- Page 4 MLE200 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA1)HEX BOLT 1/2"x2-3/4"L PARTIAL QTY.3 (AA2)ROUND INNER HEAD 3/8"x2"L PARTIAL QTY.1 (AA3)ROUND INNER HEX SCREW M10x40L PARTIAL THREAD QTY.1 (AA4)ROUND INNER HEX SCREW M6x16L PARTIAL THREAD QTY.16 (AA5)10LB PIN(8250-128) QTY.1 inch 1" 2" 3" 4"...
- Page 5 MLE200 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA6)ELASTIC BELT QTY.1 (BB1)NYLON LOCK NUT 1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 inch 1" 2" 3" 5" 6" 4" MLE200-042010 Page...
- Page 6 MLE200 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (CC1)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (CC5)SPRING WASHER 3/8" QTY.1 (CC2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (CC3)M10(I.D.)FLAT WASHER Ø19 QTY.2 (CC4)M6(I.D.)FLAT WASHER Ø19 QTY.16 inch 1" 2" 3" 5" 6" 4" MLE200-042010 Page...
- Page 7 MLE200 ASSEMBLY INSTRUCTIONS FARME HARDWARE ILLUSTRATION DD1.Ø3/4" SHAFT COLLAR(9211-147)------------------------------------------- [2PCS] DD2.Ø4" RUBBER DOUNT(9310-017)-------------------------------------------- [2PCS] DD3.108X14.5tX263L RUBBER PAD(9310-075)-------------------------------- [2PCS] DD4.Ø115X50L PULLEY-NO MAGNET(9213-042B)---------------------------[2PCS] DD5.Ø115X50L PULLEY-MAGNET(9213-042A)-------------------------------- [1PCS] DD6.BOTTLE BRACKET (8388-025)----------------------------------------------- [1PCS] DD7.BOTTLE RACK(9260086-19)-------------------------------------------------- [1PCS] [1PCS] DD8.BOTTLE(9260-123)------------------------------------------------------------- [1PCS] DD9.TOP PLATE(8400-019)----------------------------------------------------------- DD10.WEIGHT SELECTOR BAR(8210-042C)-------------------------------------- [1PCS] DD11.Ø1"...
-
Page 8: Hardware Illustration
MLE200 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1.Ø38XØ25.8X10L STEEL BUSHING(8120-071)------------------ [1PCS] D2.Ø70X52X20L STEEL BUSHING(8130-065)---------------------- [1PCS] D3.Ø60 CAP COVER(8130-231)----------------------------------------- [1PCS] D4.Ø10X60L SHAFT(8210-156)------------------------------------------ [1PCS] D5.THRUST BEARING(8510-008)--------------------------------------- [1PCS] D6.Ø38X26X1.5t CU WASHER(8520-008)---------------------------- [3PCS] D7.58X116X2.5tX45H END CAP(9211-112)-------------------------- [2PCS] D8.Ø120XØ51X3t NYLON WASHER(9214-039)-------------------- [2PCS] D9.50X100X1.5t END CAP(9261-060)---------------------------------- [1PCS] D10.50X5tX100 RUBBER PAD(9310-065)----------------------------- [1PCS] D11.108X15tX263L RUBBER PAD(9310-075)------------------------ [2PCS] D12.3570mm BELT (FMLE200)------------------------------------------ [1PCS] D10. - Page 9 MLE200 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A [1SET] B [1SET] C [1SET] 6650-003 6621-001 6630-002 6630-003 D [1SET] E [1SET] F [1SET] 6680-008 6670-001 6680-007 G [1SET] H [1SET] I [1SET] 6690-001 6680-009 8240-090 J [2PCS] K[1SET] L [1SET] 8313-144 6690-002 9121-071 MLE200-042010...
- Page 10 MLE200 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET M [1SET] N [1PCS] O [1PCS] 9161-061 9420-051 8311-117 P [1SET] 9111-068 MLE200-042010 Page...
- Page 11 MLE200 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AA [1SET] AB [1SET] AC [1PCS] 6610-009 2255027 9220-020 AD [1PCS] AE [1SET] AF [1SET] 9220-019 9220-023 9211-148 AG [4SET] AH [1SET] AI [1SET] 8331-057 8313-169 6640-015 AJ[2PCS] AK[1PCS] AL[3SET] 5313-R001 8331-056 8331-058 Ø3/4"X1.6tX1243L MLE200-042010 Page...
- Page 12 MLE200 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AM [2PCS] AN [1PCS] AO [1PCS] 8313-144 8311-119 8311-120 AP [1PCS] 8311-117 MLE200-042010 Page...
- Page 13 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed DD11 M10X25L CONE SCREW X4 MLE200-042010 Page...
- Page 14 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1"L HEX BOLT X4 1/2" WASHER Ø25 X4 B1X2 C1X2 1/2" WASHER Ø25 X4 1/2"X1"L HEX BOLT X4 D11X2 M10X25L CONE SCREW X8 MLE200-042010 Page...
- Page 15 MLE200 ASSEMBLY INSTRUCTIONS STEP1. Above shows STEP 3 assembled and completed STEP2. C4X4 M24-10H NUT X2 C3X4 A5X4 C3X2 C4X2 A5X2 5/16"X5/16"L ALLEN HEAD BOLT M10X25L CONE SCREW MLE200-042010 Page...
- Page 16 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed Detect the distance 5mm CC4X8 AJX2 DD1X2 AA4X8 DETAIL VIEW 9542-145-line link AI M5X12 ROUND BOLT X4 M5 WASHER Ø14 X4 Attention: AA4X6 CC4X6 Do not touch the sensor bracket (AI) during weight stack installation MLE200-042010 Page...
- Page 17 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed DD10 MLE200-042010 Page...
- Page 18 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed The tread side should be outward M10 SPRING WASHER X2 M10X25L ROUND BOLT X2 M10X25L ROUND BOLT X2 M10 SPRING WASHER X2 DD10 Adjust Belt Procedure: 1. Lift the selector rod a little and then insert the pin between first weight stack and top plate (Do not insert though the first hole of the rod), and there are...
- Page 19 MLE200 ASSEMBLY INSTRUCTIONS 9542-145-line link AI Above shows STEP 7 assembled and completed 9542-148-line link 9545-034 9545-034-line 9542-145-line M4X12L ROUND BOLT X4 M4X12L ROUND BOLT X4 M6 WASHER Ø14 X9 M6X12L ROUND BOLT X9 MLE200-042010 Page...
- Page 20 MLE200 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9542-145-LINE JST-XHP-9 JST-XHP-9 1700 BLACK BLACK PLAM PLAM ORANGE ORANGE YELLOW YELLOW GREEN GREEN BLUE BLUE PURPLE PURPLE GREY GREY 9542-148-LINE JST-XHP-3 JST-SMP-03V-BC A:HOLE COLOR B:HOLE COLOR BLACK BLACK PALM PLAM MLE200-042010 13.1 Page...
- Page 21 MLE200 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9545-034-LINE JST-SMR-03V-B MLE200-042010 13.2 Page...
- Page 22 MLE200 ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed M10X12L ROUND INNER HEAD X4 MLE200-042010 Page...
