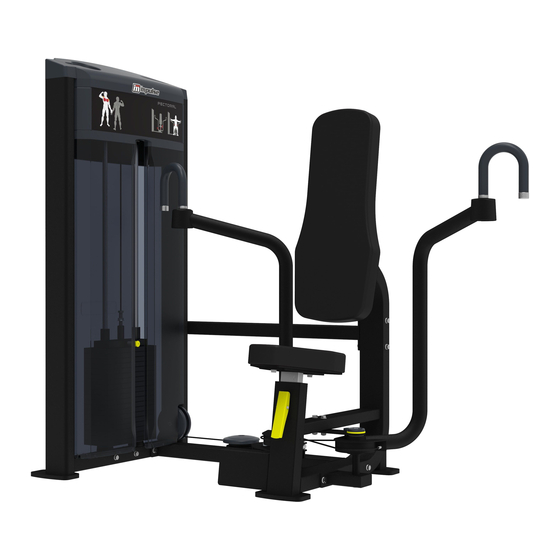

IF9304
Pectoral
Owner's Manual
19V
CAUTION! Read all precautions and instructions in this manual
before using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pectoral IF9304 and is the answer not in the manual?

Questions and answers

Related Manuals for Aerofit Pectoral IF9304

Summary of Contents for Aerofit Pectoral IF9304

  • Page 1 IF9304 Pectoral Owner's Manual CAUTION! Read all precautions and instructions in this manual before using this equipment.

  • Page 2: Table Of Contents

    Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide--------------------------------------------------------------------- 16 Assembly Instructions------------------------------------------------------------------ 17 Assembly--------------------------------------------------------------------------------- 18 Adjust Instructions and Exercise Instructions---------------------------------------- 30 Maintenance Schedule------------------------------------------------------------------ 31 General Maintenance Information----------------------------------------------------- 32 Weight Training Tips-------------------------------------------------------------------- 33...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2.
  • Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.

  • Page 5: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists.

  • Page 6: Exploded View And Parts List

    Exploded View and Parts List Overall ItemNo. Grade No. Part No. Description IF930101ASSY Weight Stack Frame ASSY IF930402ASSY Main Frame ASSY IF930403ASSY Bottom Cross Brace ASSY IF930404ASSY Back Cross Frame ASSY IF930405ASSY Right Arm Frame ASSY IF930406ASSY Left Arm Frame ASSY IF930407ASSY Right Cross Frame ASSY IF930408ASSY...
  • Page 7 Exploded View and Parts List Overall ItemNo. Grade No. Part No. Description HFOPT900-04A0602 Spring FE97122100 Pulley Spacer 1 FE97212000 Circle Ring Φ62.5*5 FE97211900 Cap Φ60.1*16.1 GB5780M10*120DS20 Hex Head Bolt M10*120 GB5780M10*75DS20 Hex Head Bolt M10*75 GB5780M10*30DS20 Hex Head Bolt M10*30 GB5780M10*70DS20 Hex Head Bolt M10*70 GB5781M10*15DS20NL...
  • Page 8 Exploded View and Parts List Overall...
  • Page 9 Exploded View and Parts List Weight Stack Frame ASSY ItemNo. Grade No. Part No. Description IF93010100 Weight Stack Frame BS81223100 Foot Plate GB17880.5M6*16.5DS17 Rivet Nut M6 AC32705800 U-nut M6...
  • Page 10 Exploded View and Parts List Main Frame ASSY ItemNo. Grade No. Part No. Description IF93040200 Main Frame IT95014500 Adjustable Support CWRVL0012200 Roll Pin AXT3S5500 Torsional Spring GB894.18FH12 Circlips For Shaft Φ8 GB5780M10*30DS20 Hex Head Bolt M10*30 GB17880.5M10*19.5DS17 Rivet Nut M6 IF93035000 Inner Wear Sleeve BS81223100...
  • Page 11 Exploded View and Parts List Bottom Cross Brace ASSY Bottom Cross Brace Sub ASSY ItemNo. Grade No. Part No. Description IF93040300ASSY Bottom Cross Brace Sub ASSY IF930127ASSY Cable Connector ASSY IF81105500V1 Fixed BoltΦ9.4*47.5*M8 GB9510DS2 Flat Washer Φ11*Φ20*2 NM8DS2 Nylon Lock Nut M8 ItemNo.
  • Page 12 Exploded View and Parts List Cable Connector ASSY Back Cross Frame ASSY Bottom Bracket ASSY ItemNo. Grade No. Part No. Description 3.2.1 IF93012700 Cable Connector 3.2.2 BNH0738 Bush Φ18*Φ12.7*Φ9.5*9.5 ItemNo. Grade No. Part No. Description IF93040400 Back Cross Frame Plug □50.8 KPSFID3000 ItemNo.
  • Page 13 Exploded View and Parts List Right Arm Frame ASSY Right Cross Frame ASSY ItemNo. Grade No. Part No. Description IF93040500 Right Arm Frame FE97151400 Buffer Set V39500 Aluminum Grip Ring V39600 Aluminum Grip Cap GB2766205-2ZC3 Deep Groove Ball Bearing Φ25*Φ52*15 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 IT95041700...
  • Page 14 Exploded View and Parts List Left Arm Frame ASSY Left Cross Frame ASSY ItemNo. Grade No. Part No. Description IF93040600 Left Arm Frame FE97151400 Buffer Set V39500 Aluminum Grip Ring V39600 Aluminum Grip Cap GB2766205-2ZC3 Deep Groove Ball Bearing Φ25*Φ52*15 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 IT95041700...
  • Page 15 Exploded View and Parts List Cam Frame Assy Seat Pad Frame ASSY ItemNo. Grade No. Part No. Description 10.1 IF93041000 Cam Frame 10.2 FE97041100 Scaleboard 10.3 GB70M8*10DS2 Socket Head Cap Screw M8*10 10.4 IN-S10111200 Nylon Sleeve Φ17*10.5 10.5 GB2766205-2ZC3 Socket Set Screw 10-32UNF*3.2 ItemNo.

  • Page 16: Measurement Guide

    Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch)

  • Page 17: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 18: Assembly

    Assembly STEP 1 Attach the Weight Stack Frame ASSY (#1), the Main Frame ASSY (#2), the Bottom Cross Brace ASSY (#3) and the Back Cross Frame ASSY (#4) using: four M10*120 HHB (#35) two M10*75 HHB (#36) two M10*30 HHB (#37) thirteen Φ11*Φ20*2 Flat Washer (#50) two Φ10 Spring Washer (#51) five M10 Nylon Lock Nut (#52)
  • Page 19 Assembly STEP 2 1. Attach the Left Arm Frame ASSY (#6) to the Left Cross Frame ASSY (#8), and attach the Cam Frame Assy (#10), the Washer (#53) and the Right Arm Frame ASSY (#5) to the Right Cross Frame ASSY (#7) in sequence. Note: When installing the Right Arm Frame ASSY (#5), the Position Adjustment Pin (#5.9) is in the middle of two Nylon Sleeves.
  • Page 20 Assembly STEP 3.1 Attach two Cable ASSYs (#14) to the Bottom of the Arm Frame ASSY (#5/#6) using: two M10*15 HHB (Nylok) (#37) two M10 Hex Nut (#46)
  • Page 21 Assembly STEP 3.2 TIPS: Firstly, attach one end of the Cable ASSY (#13) to the Bottom Cross Brace ASSY (#3). Before attach the 4.5" Pulley to the frame, you should lead the other end of the Cable ASSY (#13) across it. 1.
  • Page 22 Assembly Select STEP If you install the Front Shroud Attachment (IF93SH01) later, you should to finish the following step firstly. 1. Attach eight Plastic Nut to the Weight Stack Frame ASSY (#1). 2. Attach the Front Bracket ASSY, Right Bracket ASSY and the Left Bracket ASSY to the Weight Stack Frame ASSY (#1) using: eight ST4.2*16 Cross Disc Self Tapping Screw...
  • Page 23 Assembly STEP 4 Here is the assembly instruction for 160LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#24) two Weight Rubber Bumper (#28) fifteen Weight Plate 10LBS (#101) two weight stack space (#103) one Top Plate (#23) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#30) two Spring (#31) 2.
  • Page 24 Assembly STEP 4 Here is the assembly instruction for 200LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#24) two Weight Rubber Bumper (#28) nineteen Weight Plate 10LBS (#101) one Top Plate (#23) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#30) two Spring (#31) 2.
  • Page 25 Assembly STEP 4 Here is the assembly instruction for 235LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#24) two Weight Rubber Bumper (#28) fifteen Weight Plate 15LBS (#102) two weight stack space (#103) one Top Plate (#23) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#30) two Spring (#31) 2.
  • Page 26 Assembly STEP 4 Here is the assembly instruction for 295LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#24) two Weight Rubber Bumper (#28) nineteen Weight Plate 15LBS (#102) one Top Plate (#23) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing Sleeve Φ25*Φ19*45 (#30) two Spring (#31) 2.
  • Page 27 Assembly All weight plate sticker paste schematic diagram...
  • Page 28 Assembly STEP 5 1. Attach the Bottom Bracket ASSY (#17) to the Weight Stack Frame ASSY (#1) using: two M10*75 HHB (#36) four Φ11*Φ20*2 Flat Washer (#50) two M10 Nylon Lock Nut (#52) 2. Attach two Top Bracket (#16) to the Training Placard Cover (#21) and the Top Rear Shroud (#22) using: four M6*10 CRPHS (#48) 3.
  • Page 29 Assembly STEP 6 1. Attach the Seat Pad (#59) to the Seat Pad Support (#15) using: two M10*30 HHB (#37) two Φ11*Φ20*2 Flat Washer (#50) 2. Attach the Seat Pad Support (#15) to the Main Frame ASSY (#2). 3. Attach the Back Pad (#58) to the Main Frame ASSY (#2) using: two M10*80 HHB (#38) two Φ11*Φ20*2 Flat Washer (#50)

  • Page 30: Adjust Instructions And Exercise Instructions

    Adjust Instructions and Exercise Instructions The Seat Pad Adjustment 1. Pull the Adjustable Support and Adjust the Seat Pad to the desired position. 2. Make sure the pin get into the hole completely. The User Position Adjustment 1. Pull the Adjustable Support and Adjust the Form to the desired position. 2.

  • Page 31: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...

  • Page 32: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.

  • Page 33: Weight Training Tips

    Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
