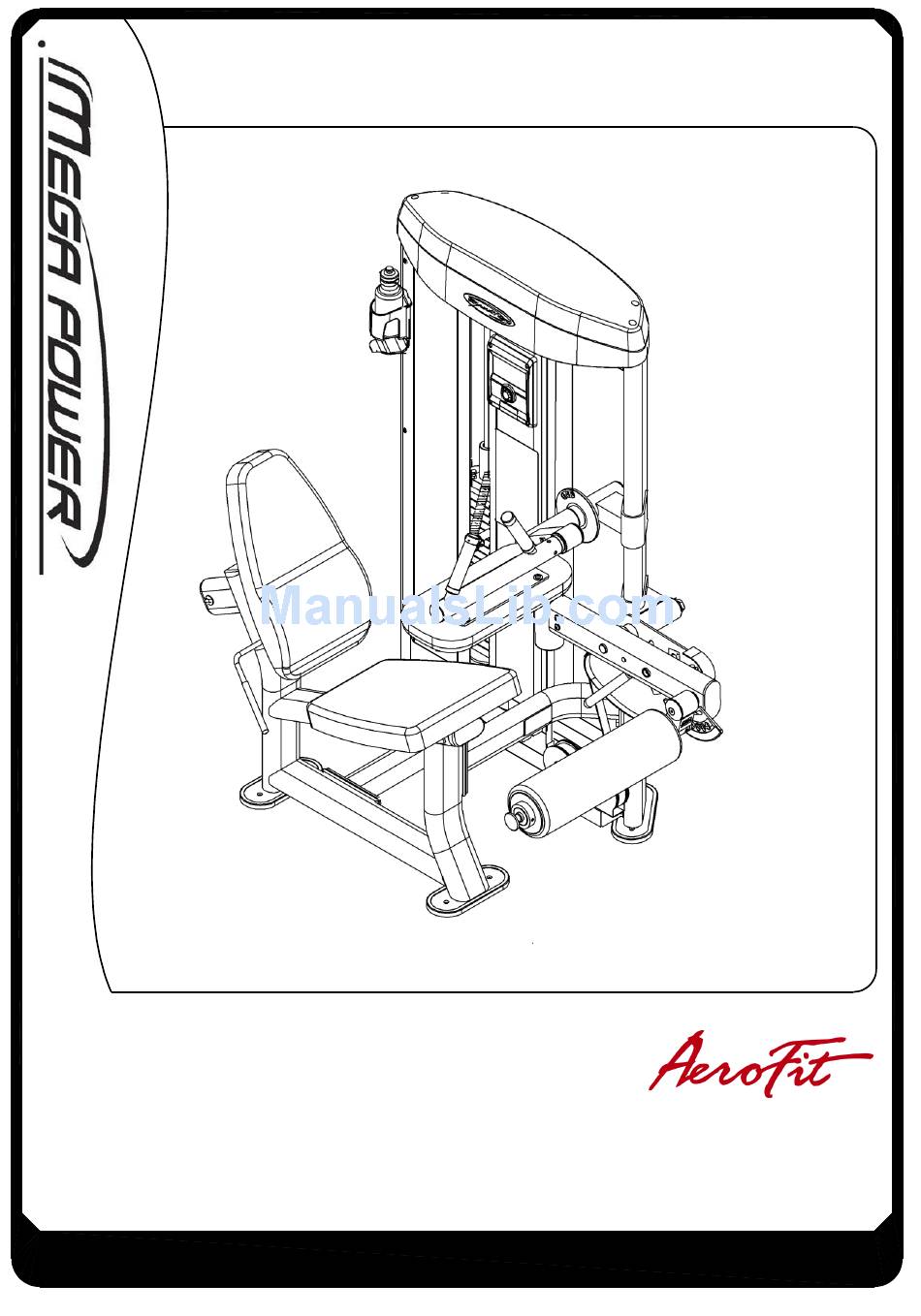

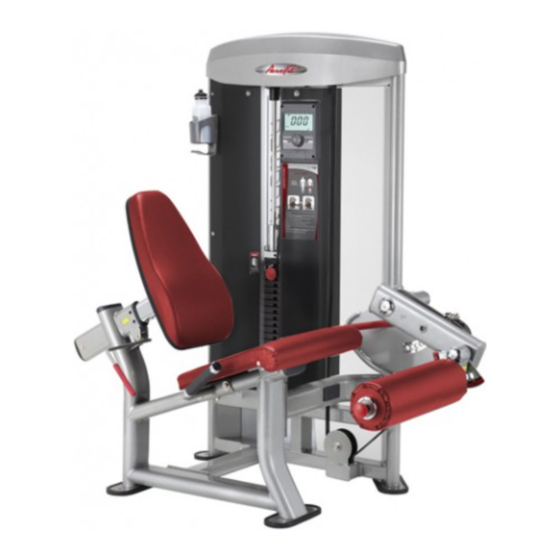

- Page 1 Официальный представитель: ООО «СпортРус» 117105, Российская Федерация, г.Москва, Варшавское шоссе, д.33 Телефон: (495) 276 27 26, 221 26 29 www.aerofit.ru MLC-400 OWNER'S MANUAL...
- Page 2 MLC400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 3/8"X1-1/2"L PARTIAL THREAD QTY.1 (A2)HEX BOLT 5/16"X3"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 5/16"X2-1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 5/16"X1"L PARTIAL THREAD QTY.6 (A5)ROUND INNER HEX SCREW 5/16"X1"L PARTIAL THREAD QTY.4 inch 1" 2" 3"...
- Page 3 MLC400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C1)3/8"(I.D.)FLAT WASHER Ø19 QTY.2 (B1)NYLON LOCK NUT 3/8" QTY.1 (C2)5/16"(I.D.)FLAT WASHER Ø24 QTY.13 (B2)NYLON LOCK NUT 5/16" QTY.1 (C3)SPRING WASHER 5/16" QTY.11 inch 1" 2" 3" 5" 6" 4" MLC400-042010 Page...
- Page 4 MLC400 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (AA1)HEX BOLT 1/2"X2-3/4"L PARTIAL QTY.4 (AA2)ROUND INNER HEX SCREW 3/8"X2"L PARTIAL QTY.1 (AA3)ROUND INNER HEX SCREW M6X16L PARTIAL THREAD QTY.16 (AA4)ROUND INNER HEX SCREW M10X40L PARTIAL THREAD QTY.1 (AA5)10LB PIN(8250-128) QTY.1 (AA6)ELASTIC BELT QTY.1 inch 2"...
- Page 5 MLC400 ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (CC1)1/2"(I.D.)FLAT WASHER Ø34 QTY.6 (BB1)NYLON LOCK NUT 1/2" QTY.4 (CC2)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (BB2)NYLON LOCK NUT M10 QTY.1 (CC3)M10(I.D.)FLAT WASHER Ø19 QTY.2 (CC4)M6(I.D.)FLAT WASHER Ø19 QTY.16 (CC5)3/8"(I.D.)FLAT WASHER Ø19 QTY.1 inch 1" 2" 3" 5"...
- Page 6 ASSEMBLY INSTRUCTIONS MLC400 FARME HARDWARE ILLUSTRATION DD1.Ø60 CAP COVER(8130-231)-------------------------------------------------- [1PCS] DD2.Ø3/4" SHAFT COLLAR(9211-147)------------------------------------------- [2PCS] DD3.Ø4" RUBBER PAD(9310-017)------------------------------------------------- [2PCS] DD4.108X14.5tX263L RUBBER PAD(9310-075)-------------------------------- [2PCS] DD5.Ø115X50L PULLEY(9213-042B)---------------------------------------------- [3PCS] DD6.Ø115X50L PULLEY(9213-042A)---------------------------------------------- [1PCS] DD7.BOTTLE BRACKET BOARD(8388-025)------------------------------------ [1PCS] DD8.BOTTLE RACK(9260086-19)-------------------------------------------------- [1PCS] DD9.BOTTLE(9260-123)--------------------------------------------------------------- [1PCS] DD10.TOP PLATE(8400-019)----------------------------------------------------------- [1PCS] DD11.WEIGHT SELECTOR BAR(8210-042C)-------------------------------------- [1PCS] DD12.Ø1"...
-
Page 7: Hardware Illustration
MLC400 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1.Ø38XØ25.8X10L STEEL BUSHING(8120-071)------------------ [1PCS] D2.Ø70X52X20L STEEL BUSHING(8130-065)---------------------- [1PCS] D3.Ø60 CAP COVER(8130-231)----------------------------------------- [3PCS] D4.Ø10X60L SHAFT(8210-156)------------------------------------------ [1PCS] D5.ROLLER BEARING(8510-008)--------------------------------------- [1PCS] D6.Ø38X26X1.5t CU WASHER(8520-008)---------------------------- [5PCS] D7.58X116X2.5tX45H END CAP(9211-112)-------------------------- [2PCS] D8.Ø120XØ51X3t NYLON WASHER(9214-039)-------------------- [2PCS] D9.50X100X1.5t END CAP(9261-060)--------------------------------- [1PCS] D10.50X5tX100 RUBBER PAD(9310-065)---------------------------- [1PCS] D11.108X15tX263L RUBBER PAD(9310-075)------------------------ [2PCS] D12.3500mm BELT (FMLC400)------------------------------------------ [1PCS] D10. - Page 8 MLC400 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET 6650-003 A [1SET] B [1SET] C [1SET] 6621-002 6630-002 6630-003 D [1SET] E [1SET] F [1SET] 6680-002 6670-001 6680-007 G [1SET] H [1SET] I [1SET] 6680-012 6680-004 8240-090 J [2PCS] K[1SET] L[1SET] 8313-144 6680-003 6680-001 MLC400-042010 Page...
- Page 9 MLC400 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET M [1SET] N [1PCS] O [1PCS] 9121-080 9420-053 8311-117 P [1SET] Q [1SET] R [1SET] 9111-068 9121-068 9161-061 S [1SET] 8220-180 MLC400-042010 Page...
- Page 10 MLC400 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AA [1SET] AB [1SET] AC [1PCS] 6610-010 2255027 9220-020 AD [1PCS] AE [1SET] AF [1SET] 9220-019 9220-023 9211-148 AG [4SET] AH [1SET] AI [1SET] 8331-057 8313-169 6640-015 AJ[2PCS] AK[1PCS] AL[3SET] 5313-R001 8331-056 8331-058 Ø3/4"X1.6tX1243L MLC400-042010 Page...
- Page 11 MLC400 ASSEMBLY INSTRUCTIONS FARME PARTS ILLUSTRATION SHEET AM [2PCS] AN [1PCS] AO [1SET] 8313-144 8311-119 8311-120 AP [1PCS] 8311-117 MLC400-042010 Page...
- Page 12 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed DD12 M10X25L CONE SCREW X2 M10X25L CONE SCREW X2 MLC400-042010 Page...
- Page 13 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1"L HEX BOLT X4 1/2" WASHER Ø25 X4 1/2" WASHER Ø25 X4 1/2"X1"L HEX BOLT X4 M10X25L CONE SCREW X8 MLC400-042010 Page...
- Page 14 MLC400 ASSEMBLY INSTRUCTIONS STEP1. Above shows STEP 3 assembled and completed STEP2. C3X4 M24-10H NUT X2 C2X4 A4X4 C2X2 C3X2 A4X2 M10X25L CONE SCREW 5/16"X5/16"L ALLEN HEAD BOLT MLC400-042010 Page...
- Page 15 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed Detect the distance5mm AJX2 CC4X8 DD2X2 AA3X8 DETAIL VIEW DD10 9542-145-line link AI M5X12 ROUND BOLT X4 M5 WASHER Ø14 X4 Attention: Do not touch the sensor bracket (AI) AA3X6 during weight stack installation CC4X6 MLC400-042010...
- Page 16 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed DD11 BB1X2 CC1X2 DD5X2 CC1X2 AA1X2 MLC400-042010 Page...
- Page 17 MLC400 ASSEMBLY INSTRUCTIONS Adjust Belt Procedure: 1. Lift the selector rod a little and then insert the pin between first weight stack and top plate (Do not insert though the first hole of the rod), and there are 10 mm gap between top plate and first weight stack.
- Page 18 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M10X25L CONE SCREW M10X25L CONE SCREW X2 A5X4 C3X4 C2X4 M8 WASHER Ø18 X4 M8X16L ROUND BOLT X4 MLC400-042010 Page...
- Page 19 MLC400 ASSEMBLY INSTRUCTIONS 9545-145-line link AI Above shows STEP 8 assembled and completed 9545-148-line link 9545034 9545-034-line 9542-145-line M4X12L ROUND BOLT X4 M4X12L ROUND BOLT X4 M6 WASHER Ø14 X9 M6X12L ROUND BOLT X9 MLC400-042010 Page...
- Page 20 MLC400 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9542-145-LINE JST-XHP-9 JST-XHP-9 1700 BLACK BLACK PLAM PLAM ORANGE ORANGE YELLOW YELLOW GREEN GREEN BLUE BLUE PURPLE PURPLE GREY GREY 9542-148-LINE JST-XHP-3 JST-SMP-03V-BC A:HOLE COLOR B:HOLE COLOR BLACK BLACK PALM PLAM MLC400-042010 14.1 Page...
- Page 21 MLC400 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9545-034-LINE JST-SMR-03V-B MLC400-042010 14.2 Page...
- Page 22 MLC400 ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed M10X12L ROUND INNER HEAD X4 MLC400-042010 Page...
