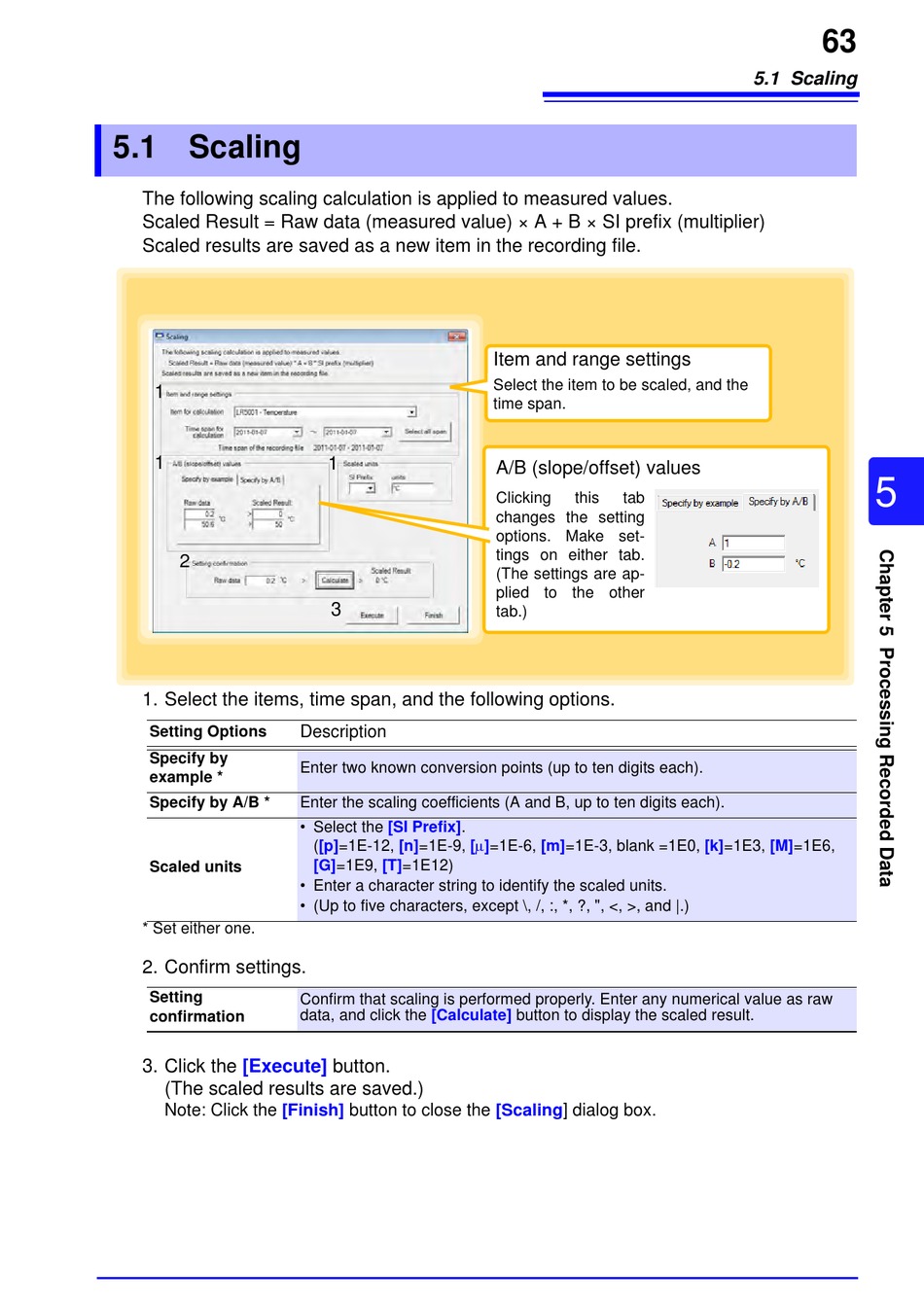

5.1 Scaling

The following scaling calculation is applied to measured values.
Scaled Result = Raw data (measured value) × A + B × SI prefix (multiplier)
Scaled results are saved as a new item in the recording file.
1
1
2
1. Select the items, time span, and the following options.
Setting Options
Specify by 
example *
Specify by A/B *
Scaled units
* Set either one.
2. Confirm settings.
Setting 
confirmation
3. Click the [Execute]
(The scaled results are saved.)
Note: Click the [Finish]
1
3
Description
Enter two known conversion points (up to ten digits each).
Enter the scaling coefficients (A and B, up to ten digits each).
• Select the [SI Prefix].
([p]=1E-12, [n]=1E-9, []=1E-6, [m]=1E-3, blank =1E0, [k]=1E3, [M]=1E6,
[G]=1E9, [T]=1E12)
• Enter a character string to identify the scaled units.
• (Up to five characters, except \, /, :, *, ?, ", <, >, and |.)
Confirm that scaling is performed properly. Enter any numerical value as raw
data, and click the [Calculate]
button.
button to close the [Scaling] dialog box.
Item and range settings
Select the item to be scaled, and the
time span.
A/B (slope/offset) values
Clicking this tab
changes the setting
options. Make set-
tings on either tab.
(The settings are ap-
plied to the other
tab.)
button to display the scaled result.
