Measurement 
and Analysis

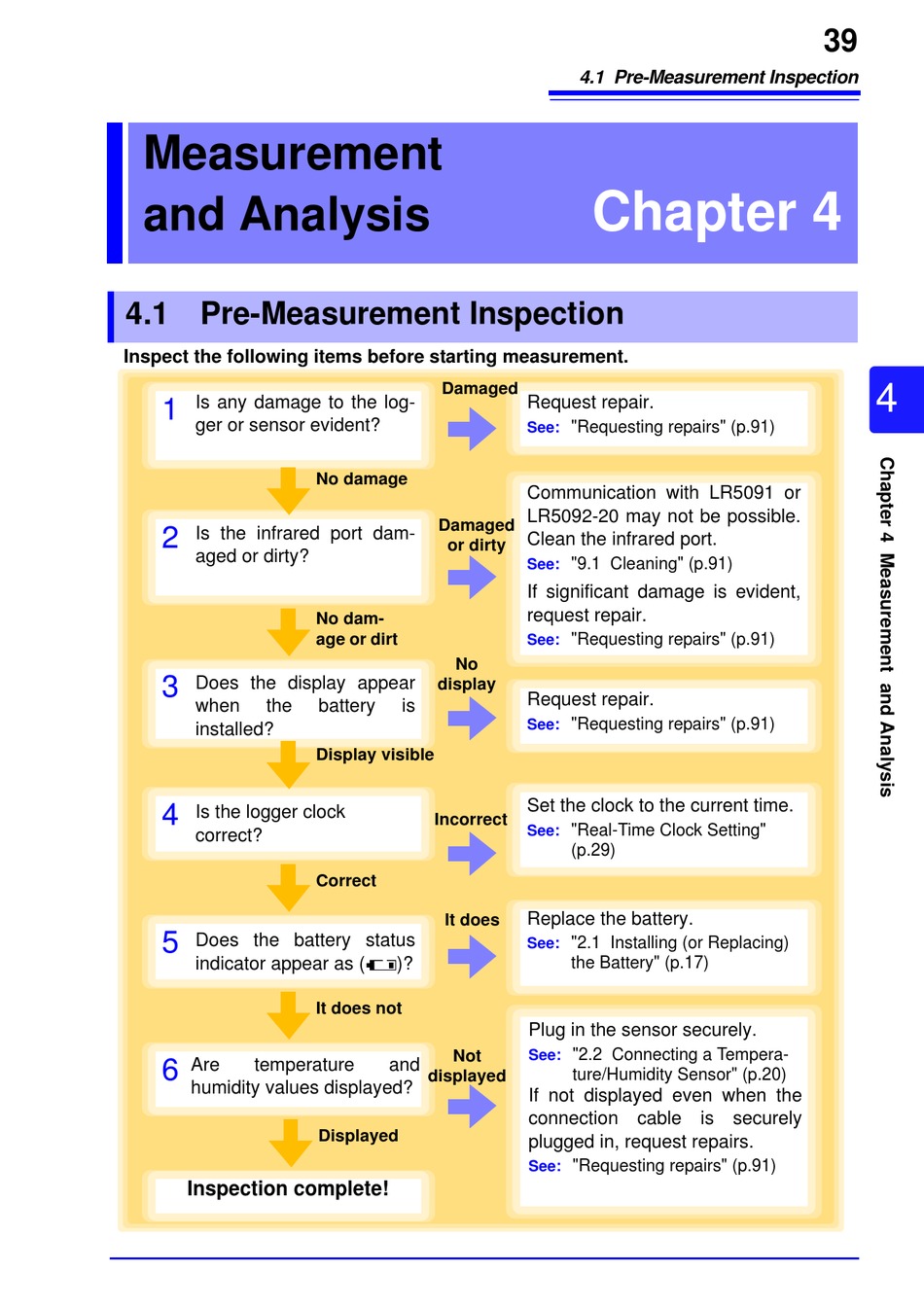

4.1 Pre-Measurement Inspection

Inspect the following items before starting measurement.
1
Is any damage to the log-
ger or sensor evident?
2
Is the infrared port dam-
aged or dirty?
3
Does the display appear
when the
installed?
4
Is the logger clock 
correct?
5
Does the battery status
indicator appear as (
6
Are temperature
humidity values displayed?
Inspection complete!
Damaged
No damage
Damaged
or dirty
No dam-
age or dirt
No
display
battery is
Display visible
Incorrect
Correct
It does
)?
It does not
Not
and
displayed
Displayed
4.1 Pre-Measurement Inspection
Chapter 4
Request repair.
"Requesting repairs" (p.91)
See:
Communication with LR5091 or
LR5092-20 may not be possible.
Clean the infrared port.
"9.1 Cleaning" (p.91)
See:
If significant damage is evident,
request repair.
"Requesting repairs" (p.91)
See:
Request repair.
"Requesting repairs" (p.91)
See:
Set the clock to the current time.
"Real-Time Clock Setting"
See:
(p.29)
Replace the battery.
"2.1 Installing (or Replacing)
See:
the Battery" (p.17)
Plug in the sensor securely.
"2.2 Connecting a Tempera-
See:
ture/Humidity Sensor" (p.20)
If not displayed even when the
connection cable is securely
plugged in, request repairs.
"Requesting repairs" (p.91)
See:
39
