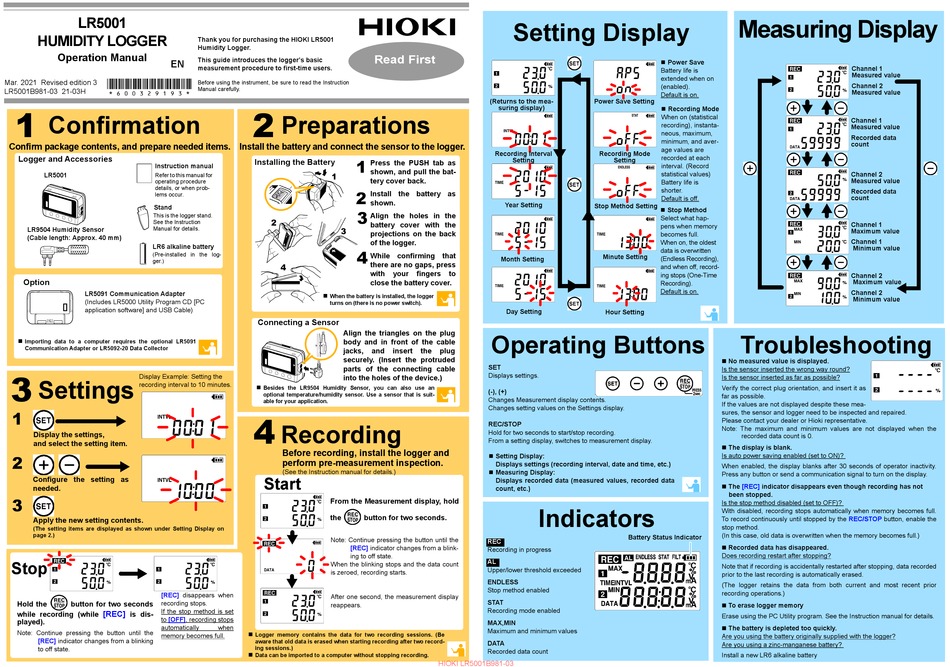

Hioki LR5001 Operation Manual

LR5001

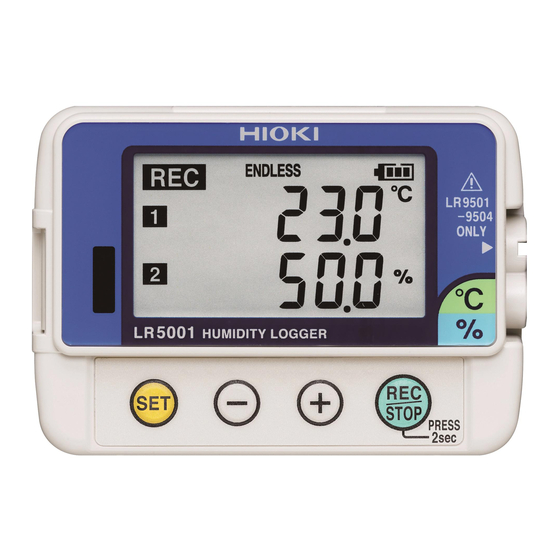

HUMIDITY LOGGER
Operation Manual
EN
Mar. 2021 Revised edition 3
LR5001B981-03 21-03H
1
Confirmation
Confirm package contents, and prepare needed items.
Logger and Accessories
Instruction manual
LR5001 Refer to this manual for
operating procedure
details, or when prob-
lems occur.
Stand
This is the logger stand.
See the Instruction
LR9504 Humidity Sensor Manual for details.
(Cable length: Approx. 40 mm)
LR6 alkaline battery
(Pre-installed in the log-
ger.)
Option
LR5091 Communication Adapter
(Includes LR5000 Utility Program CD [PC
application software] and USB Cable)

Importing data to a computer requires the optional LR5091
Communication Adapter or LR5092-20 Data Collector
3
Display Example: Setting the
Settings
recording interval to 10 minutes.
1
Display the settings,
and select the setting item.
2
Configure the setting as
needed.
3
Apply the new setting contents.
(The setting items are displayed as shown under Setting Display on
page 2.)
Stop
[REC] disappears when
Hold the button for two seconds recording stops.
If the stop method is set
[REC]
while recording (while is dis-
to [OFF], recording stops
played).
automatically
Note: Continue pressing the button until the
memory becomes full.
[REC] indicator changes from a blinking
to off state.
Thank you for purchasing the HIOKI LR5001
Humidity Logger.
Read First
This guide introduces the logger's basic
measurement procedure to first-time users.
Before using the instrument, be sure to read the Instruction
Manual carefully.
2
Preparations
Install the battery and connect the sensor to the logger.
1
Installing the Battery
Press the PUSH tab as
shown, and pull the bat-
1
tery cover back.
2
Install the battery as
shown.
3
Align the holes in the
2
battery cover with the
3
projections on the back
of the logger.
4
While confirming that
there are no gaps, press
4
with
close the battery cover.
 When the battery is installed, the logger
turns on (there is no power switch).
Connecting a Sensor
Align the triangles on the plug
body and in front of the cable
jacks, and
securely. (Insert the protruded
parts of the connecting cable
into the holes of the device.)

Besides the LR9504 Humidity Sensor, you can also use an
optional temperature/humidity sensor. Use a sensor that is suit-
able for your application.
4
Recording
Before recording, install the logger and
perform pre-measurement inspection.
(See the Instruction manual for details.)
Start
From the Measurement display, hold
the button for two seconds.
Note: Continue pressing the button until the
[REC] indicator changes from a blink-
ing to off state.
When the blinking stops and the data count
is zeroed, recording starts.
After one second, the measurement display
reappears.
when

Logger memory contains the data for two recording sessions. (Be
aware that old data is erased when starting recording after two record-
ing sessions.)

Data can be imported to a computer without stopping recording.
Setting Display
(Returns to the mea-
suring display)
Recording Interval
Setting
Year Setting
Month Setting
your fingers to
Day Setting
Operating Buttons
insert the plug
SET
Displays settings.
(-), (+)
Changes Measurement display contents.
Changes setting values on the Settings display.
REC/STOP
Hold for two seconds to start/stop recording.
From a setting display, switches to measurement display.
 Setting Display:
Displays settings (recording interval, date and time, etc.)
 Measuring Display:
Displays recorded data (measured values, recorded data
count, etc.)
Indicators
REC
Recording in progress
AL
Upper/lower threshold exceeded
ENDLESS
Stop method enabled
STAT
Recording mode enabled
MAX,MIN
Maximum and minimum values
DATA
Recorded data count
HIOKI LR5001B981-03
Measuring Display
 Power Save
Battery life is
extended when on
(enabled).
Default is on.
Power Save Setting
 Recording Mode
When on (statistical
recording), instanta-
neous, maximum,
minimum, and aver-
age values are
Recording Mode
recorded at each
Setting
interval. (Record
statistical values)
Battery life is
shorter.
Default is off.
Stop Method Setting
 Stop Method
Select what hap-
pens when memory
becomes full.
When on, the oldest
data is overwritten
Minute Setting
(Endless Recording),
and when off, record-
ing stops (One-Time
Recording).
Default is on.
Hour Setting
Troubleshooting
 No measured value is displayed.
Is the sensor inserted the wrong way round?
Is the sensor inserted as far as possible?
Verify the correct plug orientation, and insert it as
far as possible.
If the values are not displayed despite these mea-
sures, the sensor and logger need to be inspected and repaired.
Please contact your dealer or Hioki representative.
Note: The maximum and minimum values are not displayed when the
recorded data count is 0.
 The display is blank.
Is auto power saving enabled (set to ON)?
When enabled, the display blanks after 30 seconds of operator inactivity.
Press any button or send a communication signal to turn on the display.
 The [REC] indicator disappears even though recording has not
been stopped.
Is the stop method disabled (set to OFF)?
With disabled, recording stops automatically when memory becomes full.
To record continuously until stopped by the
stop method.
(In this case, old data is overwritten when the memory becomes full.)
Battery Status Indicator
 Recorded data has disappeared.
Does recording restart after stopping?
Note that if recording is accidentally restarted after stopping, data recorded
prior to the last recording is automatically erased.
(The logger retains the data from both current and most recent prior
recording operations.)
 To erase logger memory
Erase using the PC Utility program. See the Instruction manual for details.
 The battery is depleted too quickly.
Are you using the battery originally supplied with the logger?
Are you using a zinc-manganese battery?
Install a new LR6 alkaline battery
Channel 1
Measured value
Channel 2
Measured value
Channel 1
Measured value
Recorded data
count
Channel 2
Measured value
Recorded data
count
Channel 1
Maximum value
Channel 1
Minimum value
Channel 2
Maximum value
Channel 2
Minimum value
REC/STOP button, enable the
