Hioki LR5041 Instruction Manual

Voltage logger
Hide thumbs Also See for LR5041:
Table of Contents

Advertisement

Quick Links

Download this manual
LR5041
LR5042
LR5043

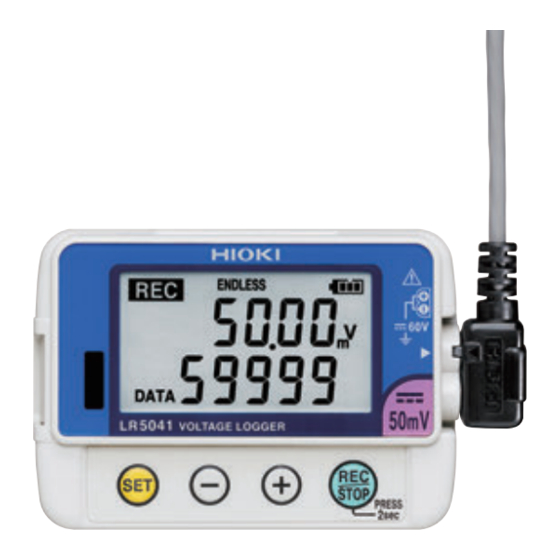

VOLTAGE LOGGER
Be sure to read this manual before using the instrument.
When using the instrument for the
first time
Mar. 2021 Revised edition 5
LR5041B980-05 21-03H
Troubleshooting
 p.12
 p.29
HIOKI LR5041B980-05
Instruction Manual
 p.5
 p.92
 p.94
EN
