Binks Mag II Quick Start Manual

The following instructions provide the necessary
information for the proper operation and
preventive maintenance of the Binks MAG II
Automatic Manifold Mounted Air-Assisted
Airless HVLP Spray Gun. Please read and
understand all information in this document in
order to get the maximum performance from
your new MAG II spray gun.

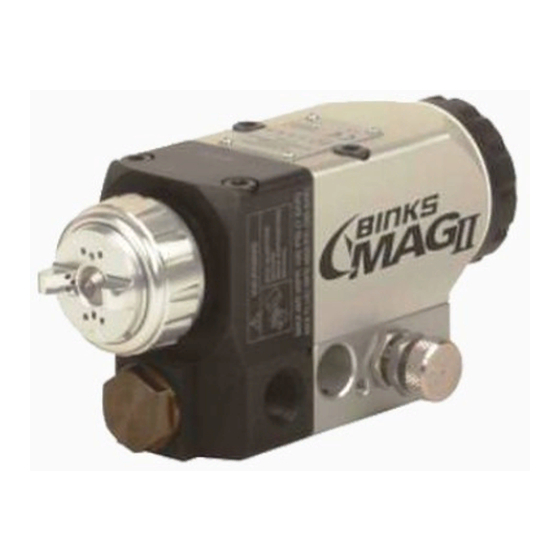

In the MAG II Automatic HVLP spray gun, the
paint or other material to be sprayed is atomized;
forced through the carbide tip by the typical
1,500-3,800 psi fluid pressure (with capabilities
up to 4,000 psi/275 bar). This atomizing, plus
the final shaping air supplied by the air cap,
produces an exceptionally fine and even spray
pattern. The result of this spray pattern is an
even finish that lends itself to products that need
an exceptionally fine finish with reduced
overspray and VOC emissions.
SPecificationS:
Max. Air Pressure: 100 psi/6.8 bar
For Flat Tip and 15 psi inlet pressure delivers
Twist Tip HVLP 10 psi air cap pressure at
compliance: 8 cfm air volume
Max. Fluid Pressure: 4000 psi/275 bar
Min./Max. Cylinder 50 psi/3.4 bar (min.),
Actuating Pressure: 100 psi/6.8 bar (max.)
Gun Body: Stainless Steel, Aluminum
Fluid Path: Nituff Coated Aluminum
Fluid Shut Off Type: Tungsten Carbide Seat
Fluid Inlet and 1/4" NPT(F) thread
Outlet Size:
Air Inlet Size: atomizing air: 1/4" NPT(F)
manifold body
fan air: 1/4" NPT(F)
manifold body
cylinder air: 1/8" NPT(F)
manifold body
Gun Weight: 1.8 lbs. (.816 kg)
Gun Mounting
1/2" diameter
Hole:

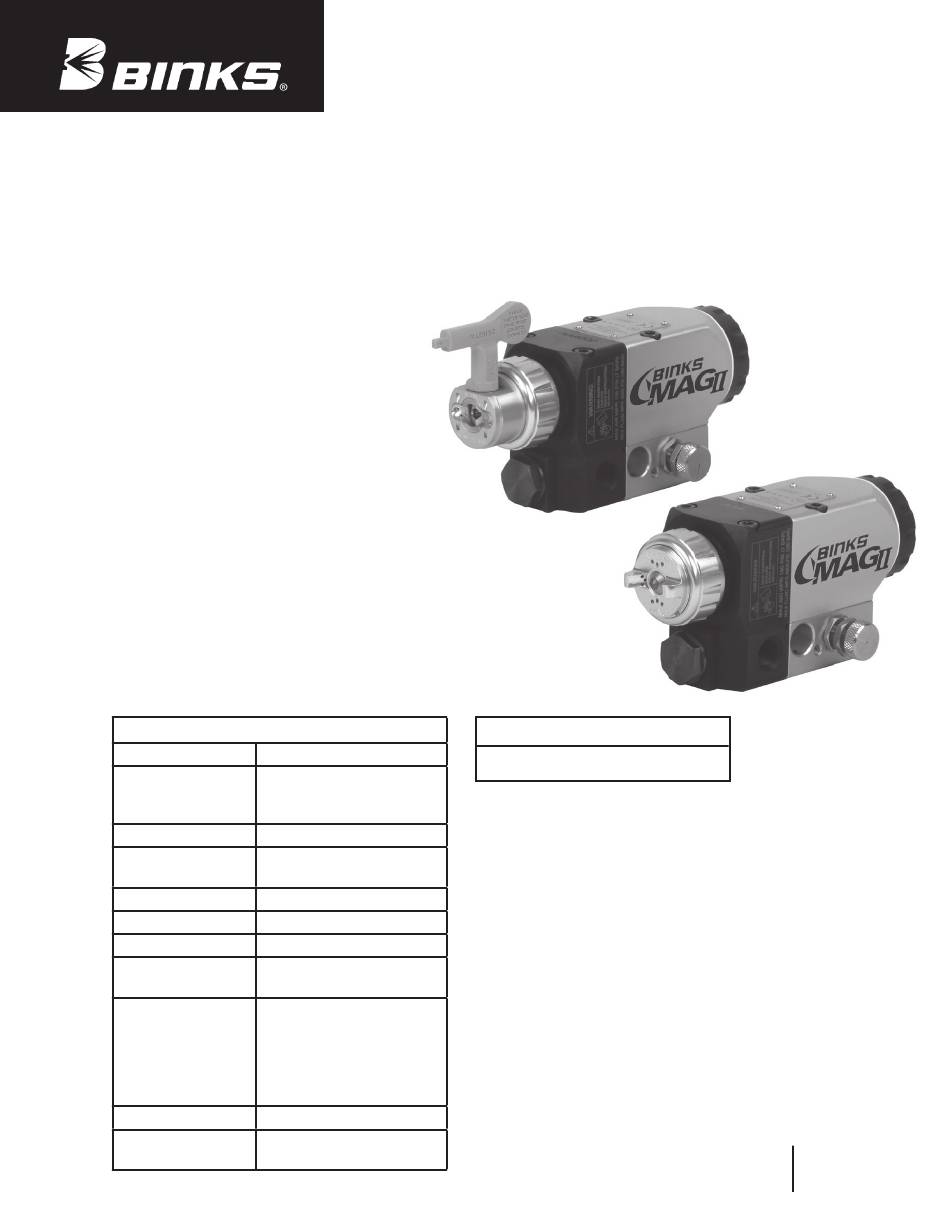

Mag II autoMatIc
aIR-assIsted
aIRLess HVLP sPRay gun
(u.V. and conVentIonaL coatIngs)
0511-0HF0, 0511-0Ht0, 0511-MHF0, 0511-MHt0
The MAG II Automatic HVLP spray
gun uses high pressure to spray paints
and solvents. Since liquids sprayed at
high pressure can cause injuries, and
some paints and solvents can be toxic or
cause explosions and fires under certain
conditions, your safety and the safety of
others depend on your reading the
information on this Part Sheet.
If you have any questions or do not
understand the information presented,
call your nearest service representative.
note
Please be sure to read the
warnings on page 2.
Replaces Part
Part Sheet Sheet
77-2949 77-2949R
