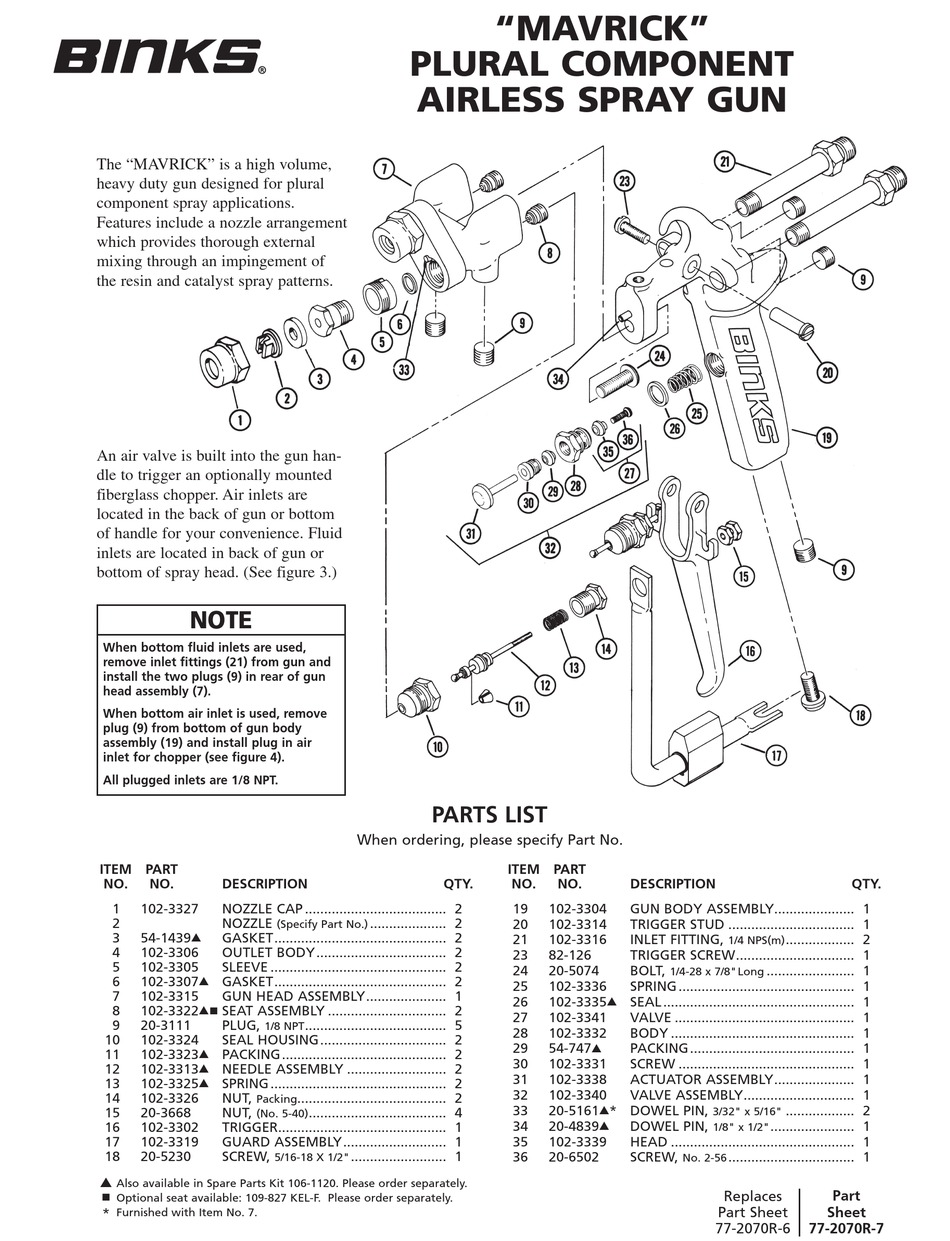

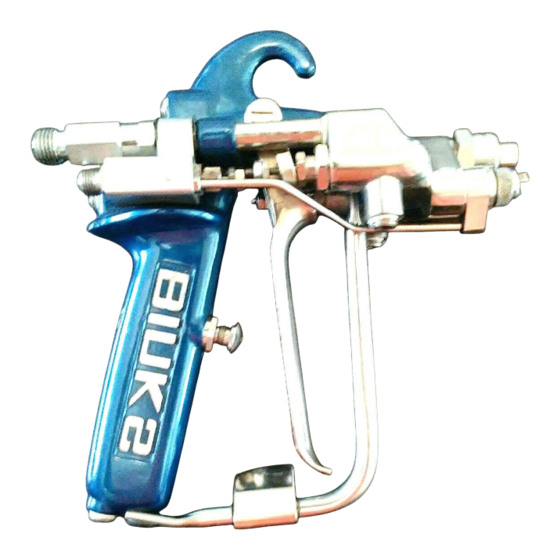

Binks MAVRICK Quick Start Manual

The "MAVRICK" is a high volume,
heavy duty gun designed for plural
component spray applications.
Features include a nozzle arrangement
which provides thorough external
mixing through an impingement of
the resin and catalyst spray patterns.
An air valve is built into the gun han-
dle to trigger an optionally mounted
fiberglass chopper. Air inlets are
located in the back of gun or bottom
of handle for your convenience. Fluid
inlets are located in back of gun or
bottom of spray head. (See figure 3.)
NOTE
When bottom fluid inlets are used,
remove inlet fittings (21) from gun and
install the two plugs (9) in rear of gun
head assembly (7).
When bottom air inlet is used, remove
plug (9) from bottom of gun body
assembly (19) and install plug in air
inlet for chopper (see figure 4).
All plugged inlets are 1/8 NPT.
ITEM PART
NO. NO. DESCRIPTION
1 102-3327 NOZZLE CAP ..................................... 2
2 NOZZLE
3 54-1439 GASKET ............................................. 2
▲
4 102-3306 OUTLET BODY .................................. 2
5 102-3305 SLEEVE .............................................. 2
6 102-3307 GASKET ............................................. 2
▲
7 102-3315 GUN HEAD ASSEMBLY ..................... 1
8 102-3322  SEAT ASSEMBLY ............................... 2
▲
9 20-3111 PLUG,
1/8 NPT
10 102-3324 SEAL HOUSING ................................. 2
11 102-3323 PACKING ........................................... 2
▲
12 102-3313 NEEDLE ASSEMBLY .......................... 2
▲
13 102-3325 SPRING .............................................. 2
▲
14 102-3326 NUT,
Packing
15 20-3668 NUT,
(No. 5-40)
16 102-3302 TRIGGER ............................................ 1
17 102-3319 GUARD ASSEMBLY ........................... 1
18 20-5230 SCREW,
5/16-18 X 1/2"
▲
Also available in Spare Parts Kit 106-1120. Please order separately.
 Optional seat available: 109-827 KEL-F. Please order separately.
* Furnished with Item No. 7.
PLURAL COMPONENT
AIRLESS SPRAY GUN
PARTS LIST
When ordering, please specify Part No.
QTY.
.................... 2
(Specify Part No.)
..................................... 5
....................................... 2
.................................... 4
......................... 1
"MAVRICK"
ITEM PART
NO. NO. DESCRIPTION
19 102-3304 GUN BODY ASSEMBLY..................... 1
20 102-3314 TRIGGER STUD ................................. 1
21 102-3316 INLET FITTING,
23 82-126 TRIGGER SCREW ............................... 1
24 20-5074 BOLT,
1/4-28 x 7/8" Long
25 102-3336 SPRING .............................................. 1
26 102-3335 SEAL .................................................. 1
▲
27 102-3341 VALVE ............................................... 1
28 102-3332 BODY ................................................ 1
29 54-747 PACKING ........................................... 1
▲
30 102-3331 SCREW .............................................. 1
31 102-3338 ACTUATOR ASSEMBLY ..................... 1
32 102-3340 VALVE ASSEMBLY ............................. 1
33 20-5161 * DOWEL PIN,
▲
34 20-4839 DOWEL PIN,
▲
35 102-3339 HEAD ................................................ 1
36 20-6502 SCREW,
QTY.
.................. 2
1/4 NPS(m)
....................... 1
.................. 2
3/32" x 5/16"
...................... 1
1/8" x 1/2"
................................. 1
No. 2-56
Replaces Part
Part Sheet Sheet
77-2070R-6 77-2070R-7
