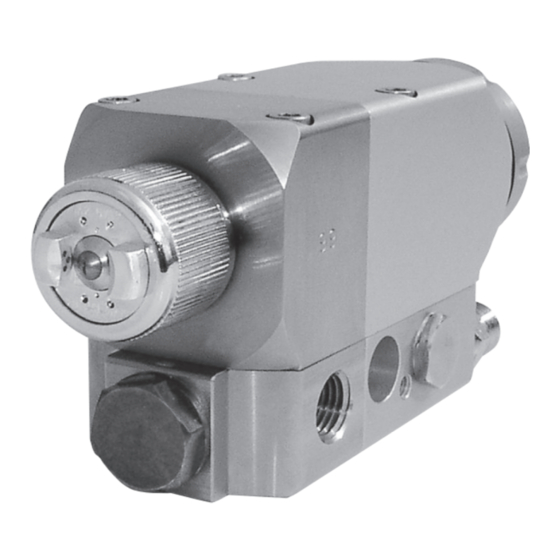

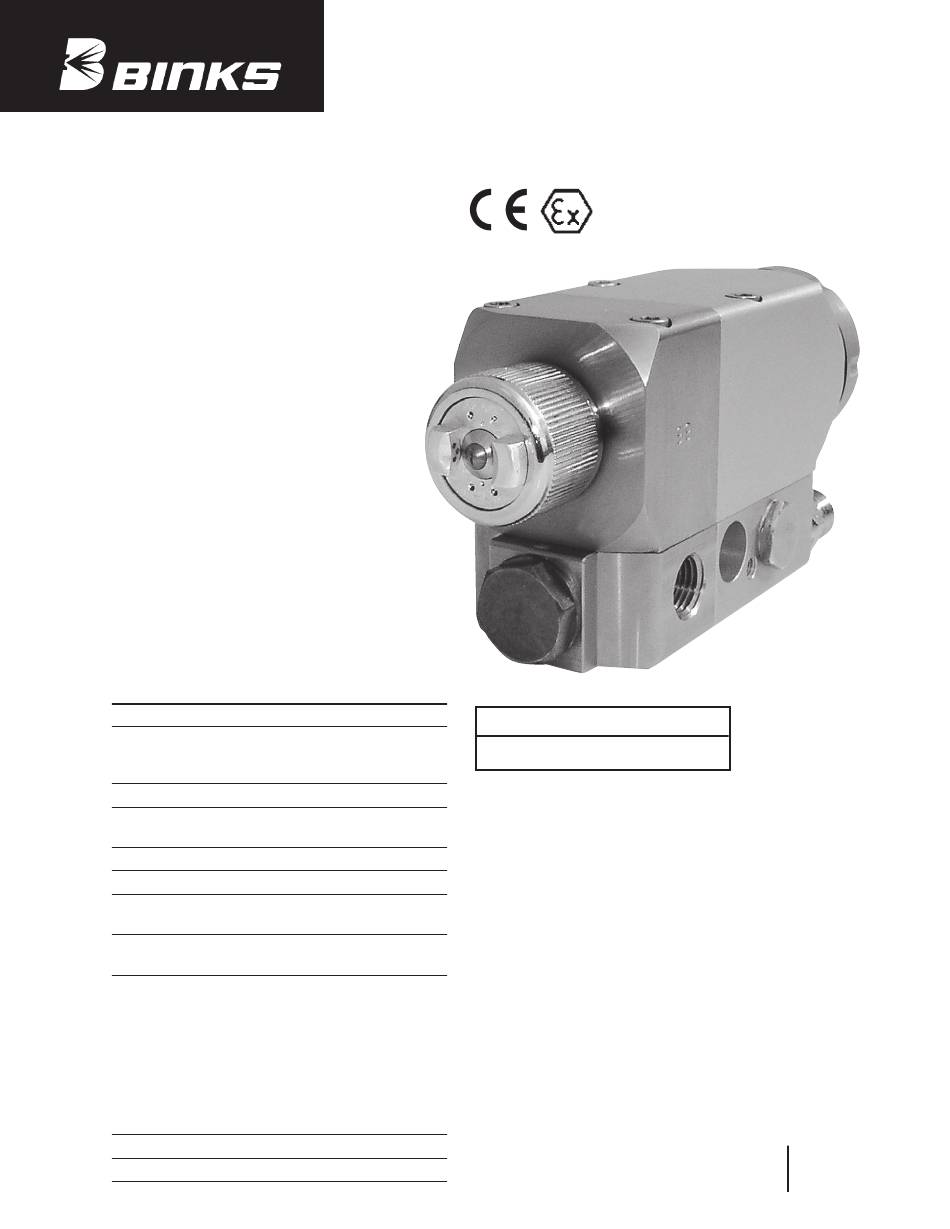

Binks MAG AA Manual

The following instructions provide the
necessary information for the proper operation
and preventive maintenance of the Binks
MAG AA Automatic Manifold Mounted Air-
Assisted Airless Spray Gun. Please read and
understand all information in this document in
order to get the maximum performance from
your new MAG AA Automatic spray gun.
In the MAG AA Automatic spray gun, the paint
or other material to be sprayed is preatomized
and forced through the carbide tip by the typical
1,500-3,800 psi fluid pressure (with capabilities
up to 4,000 psi/275 bar). As a result of the
preatomizing, the final shaping air supplied by
the air cap produces an exceptionally fine and
even spray pattern. The result of this spray
pattern is an even finish that lends itself to
products that need an exceptionally fine finish
with reduced overspray and VOC emissions.
SPecificationS:
Max. Air Pressure: 100 psi/6.8 bar
For HVLP compliance: 20 psi inlet pressure delivers
10 psi air cap pressure at
8 cfm air volume
Max. Fluid Pressure: 4000 psi/275 bar
Min./Max. Cylinder 50 psi/3.4 bar (min.),
Actuating Pressure: 100 psi/6.8 bar (max.)
Gun Body: Stainless Steel, Aluminum
Fluid Path: Stainless Steel
Fluid Shut Off Type: UHMW Seat (std.),
Tungsten Carbide Seat (opt.)
Fluid Inlet and
Outlet Size: 1/4" NPT(F) thread
Air Inlet Size: atomizing air: 1/4" NPT(F)
manifold body, 1/4" NPT x
1/4" NPS(M) fitting
fan air: 1/4" NPT(F)
manifold body, 1/4" soc head
plug (M) fitting
cylinder air: 1/8" NPT(F)
manifold body, 1/8" NPT x
1/4" O.D. tube fitting
Gun Weight: 2.5 lbs. (1.1 kg)
Gun Mounting Hole: 1/2" diameter
Mag aa autoMatic
aiR-assisted
aiRLess spRay gun
note
Please be sure to read the
warnings on page 2.
The MAG AA Automatic spray gun
uses high pressure to spray paints and
solvents. Since liquids sprayed at high
pressure can cause injuries, and some
paints and solvents can be toxic or cause
explosions and fires under certain
conditions, your safety and the safety of
others depend on your reading the
information on this Part Sheet.
The MAG AA is approved to ATEX
level II 2 G X and is suitable for use in
zones 1 and 2.
If you have any questions or do not
understand the information presented,
call your nearest service representative.
ii 2 G X
Replaces
Part Sheet
77-2797R-5
Part
Sheet
77-2797R-6
