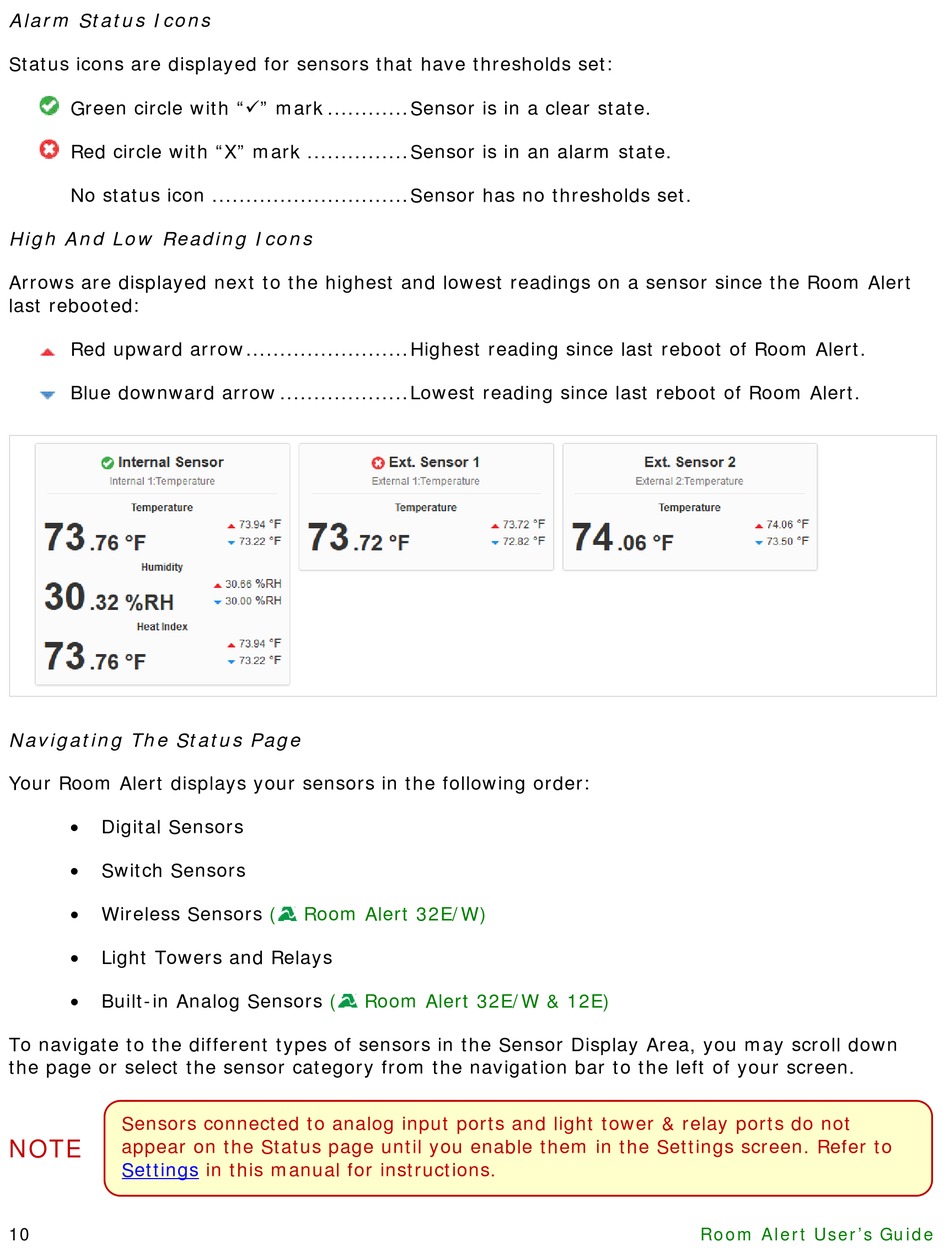

Avtech Room Alert 32E User Manual page 12

Alarm Status Icons
Status icons are displayed for sensors that have thresholds set:
Green circle with "" mark ............ Sensor is in a clear state.
Red circle with "X" mark ............... Sensor is in an alarm state.
No status icon ............................. Sensor has no thresholds set.
High And Low Reading Icons
Arrows are displayed next to the highest and lowest readings on a sensor since the Room Alert
last rebooted:
Red upward arrow ........................ Highest reading since last reboot of Room Alert.
Blue downward arrow ................... Lowest reading since last reboot of Room Alert.
Navigating The Status Page
Your Room Alert displays your sensors in the following order:
Digital Sensors
•
• Switch Sensors
Wireless Sensors
•
Light Towers and Relays
•
Built-in Analog Sensors
•
To navigate to the different types of sensors in the Sensor Display Area, you may scroll down
the page or select the sensor category from the navigation bar to the left of your screen.
Sensors connected to analog input ports and light tower & relay ports do not
NOTE
appear on the Status page until you enable them in the Settings screen. Refer to
Settings
10
( Room Alert 32E/W)
( Room Alert 32E/W & 12E)
in this manual for instructions.
