PS Engineering PDA360EX Pilot's Manual And Operation Manual page 9

Music Muting
The SoftMute™ circuit will
mute the music whenever there
is conversation on the radio, the
intercom, or both, depending on
the "Mute" mode selected.
When that conversation stops,
the music returns to the previ-
ous level over a second or so.
Music 1 mute can be controlled
on the main menu, as well
as on the Music Mute
Mode menu.

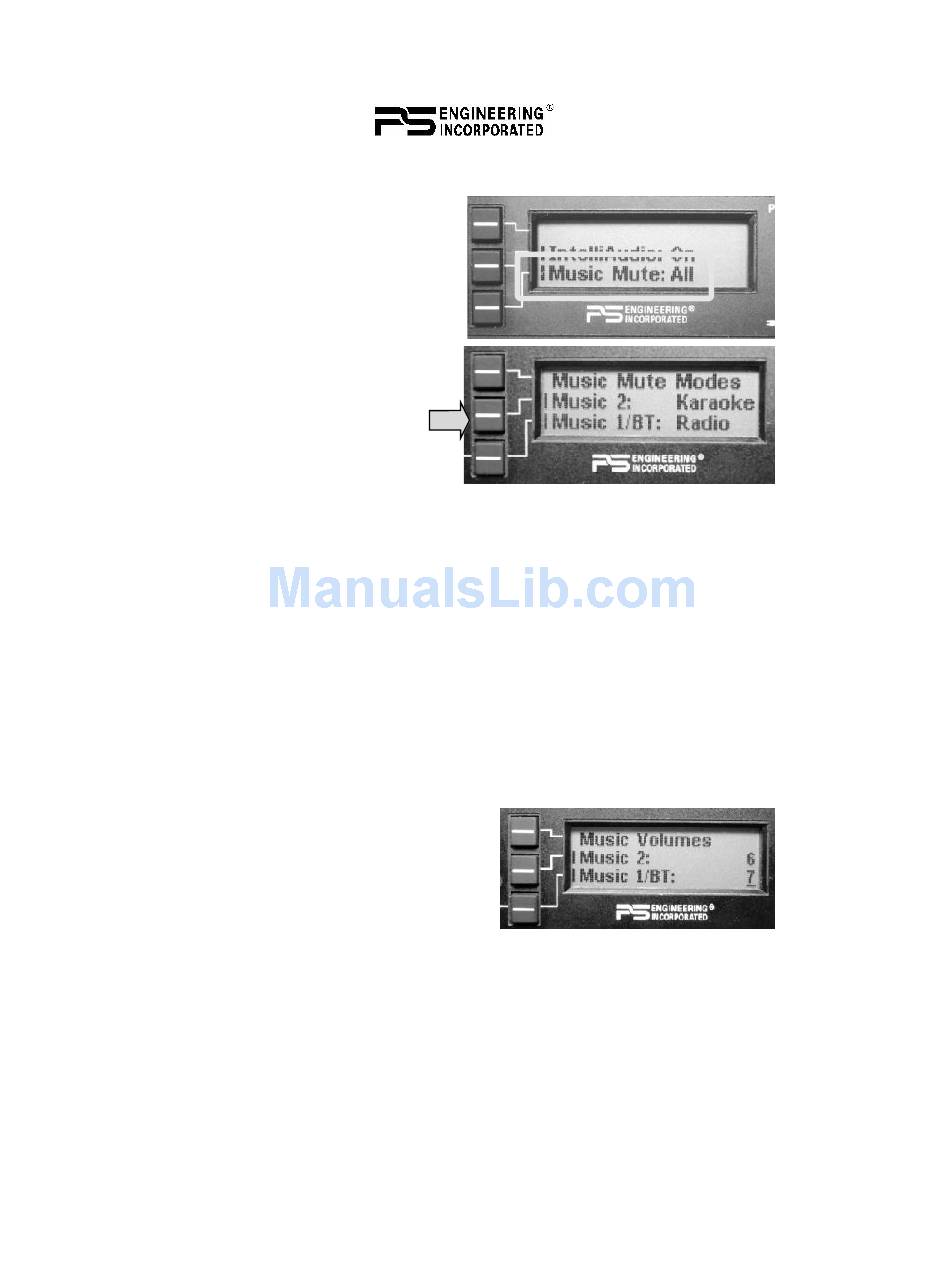

All mute mode functions are
accessed through Music Mute
Menu which has three modes for music inputs, ALL, Karaoke &
Radio mute.

ALL – music will mute with either intercom or radio

Karaoke – music will not mute except during outgoing radio
transmissions.

Radio – Radio will mute music, but intercom will not mute mu-
sic.
The PDA360EX always defaults to Mute ALL when turned on.
In addition to the panel mute menu, a remote switch may be installed
to allow the passengers local access to their Karaoke mode. When
this switch is grounded, the menu choice is overridden.
Music Volume
The volume of the music inputs can
also be adjusted from the menu of
the PDA360EX:
Press Music Mute→ Music Vol-
ume → set desired music input.
The LED Volume bar and the numeric volume will show the volume
level.
Music in Pilot ISO mode
When the isolate (ISO) mode is activated, the music for the pilot is
automatically disabled. If desired, the pilot can elect to hear Music #1
or #2, in the ISO mode by selecting through the menu screen.
Oct. 2015 PDA360EX Pilot Guide 202-360-0000 Page 9
