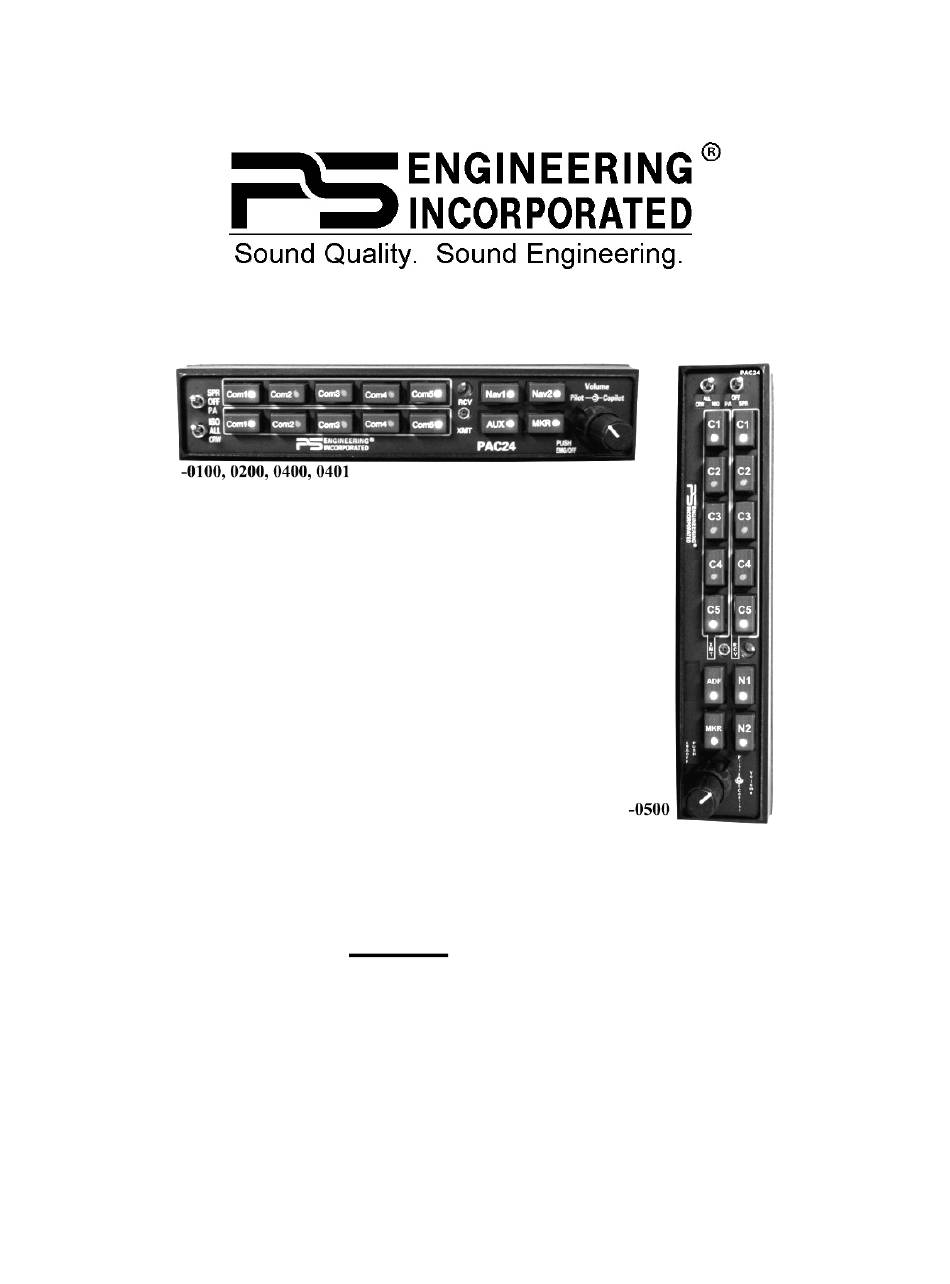

0503
Operation Manual
FAA Approved TSO C50c
JAA-Approved JTSO C50c
Revision 4
Patent No 5,903,227 and 6,160,496
Audio Selector Panel
with Intercom System
Flying Never Sounded So Good!®
Copyrighted information in this manual is subject to change without notice. PS Engineering
reserves the right to improve or change the products or contents of this manual, without
notification of any person or agency. The contents of this pilot's guide may be downloaded,
stored and reprinted for personal use provided that this copyright information is included.
Commercial use is strictly prohibited. For further information contact the Publications Man-
ager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-
9800
PAC24-Series Pilot Guide
9800 Martel Road
Lenoir City, TN 37772
Pilot's Guide
and
202-240-0002
April 2009
PS Engineering, Inc. 2009 ©
Copyright Notice
Revision 4, April 2009
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PS Engineering PAC24-Series
Summary of Contents for PS Engineering PAC24-Series
- Page 1 Commercial use is strictly prohibited. For further information contact the Publications Man- ager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988- 9800...
-
Page 2: Pac24 Controls

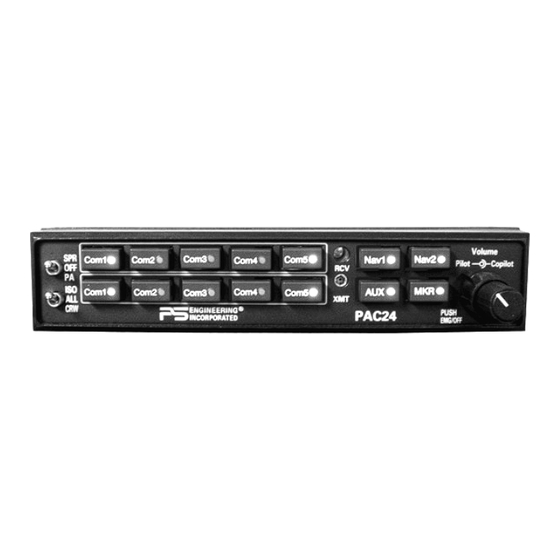

This Pilot Guide provides detailed operating instructions for the PS Engineering PAC24-series, High Performance Audio Selector Panel/Intercom Systems. Please read it carefully be- fore using the equipment so that you can take full advantage of its capabilities. This document is divided into three sections covering the basic operating areas of the PAC24 systems. -
Page 3: Dual Panel Fail Safe Operation
This is true of all transmitter selections. When the duplex, or TELEPHONE mode is implemented, Com 5 be- comes the “TEL” position. In a single installation, the intercom mode PAC24-Series Pilot Guide Revision 4, April 2009 Page 3... -
Page 4: Stuck Microphone Protection
(in that order). If the observer selects a different radio, and then attempts to re-select a radio in use by the crew, the observer will Page 4 PAC24-Series Pilot Guide... -
Page 5: Speaker Amplifier
COM 1 and COM 2 buttons in for at least 5 seconds. Any person hearing the radios will also hear the key click. PAC24-Series Pilot Guide Revision 4, April 2009 Page 5... -
Page 6: Split Mode, Dual Panel
Split mode, particularly on adjacent frequencies. PS Engineering makes no warranty about the suitability of Split Mode in all aircraft conditions. Split Mode, Single panel The split mode can be activated at any time by pressing the desired combination of XMT buttons. -
Page 7: Volume Control
This is normal. For optimum microphone performance, PS Engineering recommends installation of a Microphone Muff Kit from Oregon Aero (1-800-888- 6910). - Page 8 : Pilot and copilot are connected on one intercom channel and have exclusive access to the locally selected aircraft radios. They may also listen to Entertainment. Passengers can continue to communicate with themselves without interrupting the Crew and also may listen to Entertainment. Page 8 PAC24-Series Pilot Guide...
-
Page 9: Entertainment Input
In CREW mode, the pilot and copilot are may use the telephone, with their respective hook switch (the pilot selects Com 5 on the Xmt selec- tor). Any passenger who places their switch into the off-hook position PAC24-Series Pilot Guide Revision 4, April 2009 Page 9... -
Page 10: Internal Recorder System (Optional)
Concurrent Messages When a recorded message is playing there is no recording of incom- ing messages. Both the playback and the received radio traffic will be presented to the pilot headset.. Page 10 PAC24-Series Pilot Guide... -
Page 11: Warranty And Service
In order for the factory warranty to be valid, the installations in a certified aircraft must be accomplished by an FAA-certified avionics shop and au- thorized PS Engineering dealer. If the unit is being installed by a non- certified individual in an experimental aircraft, a factory-made harness must be used for the warranty to be valid. - Page 12 The unit is covered by a wo -year limited warranty. See warranty information. Call PS Engineering, Inc. at (865) 988-9800 before you return the unit. This will allow the service technician to provide any other suggestions for identify- ing the problem and recommend possible solutions.
