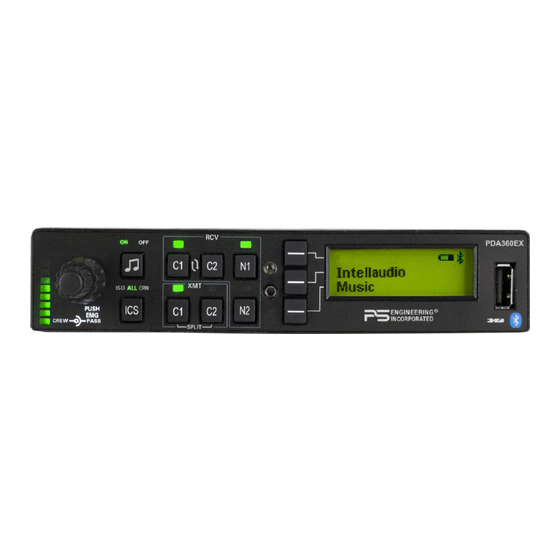

PS Engineering PDA360EX Pilot's Manual And Operation Manual

Audio selector panel stereo intercom system usb charging system with bluetooth connectivity
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

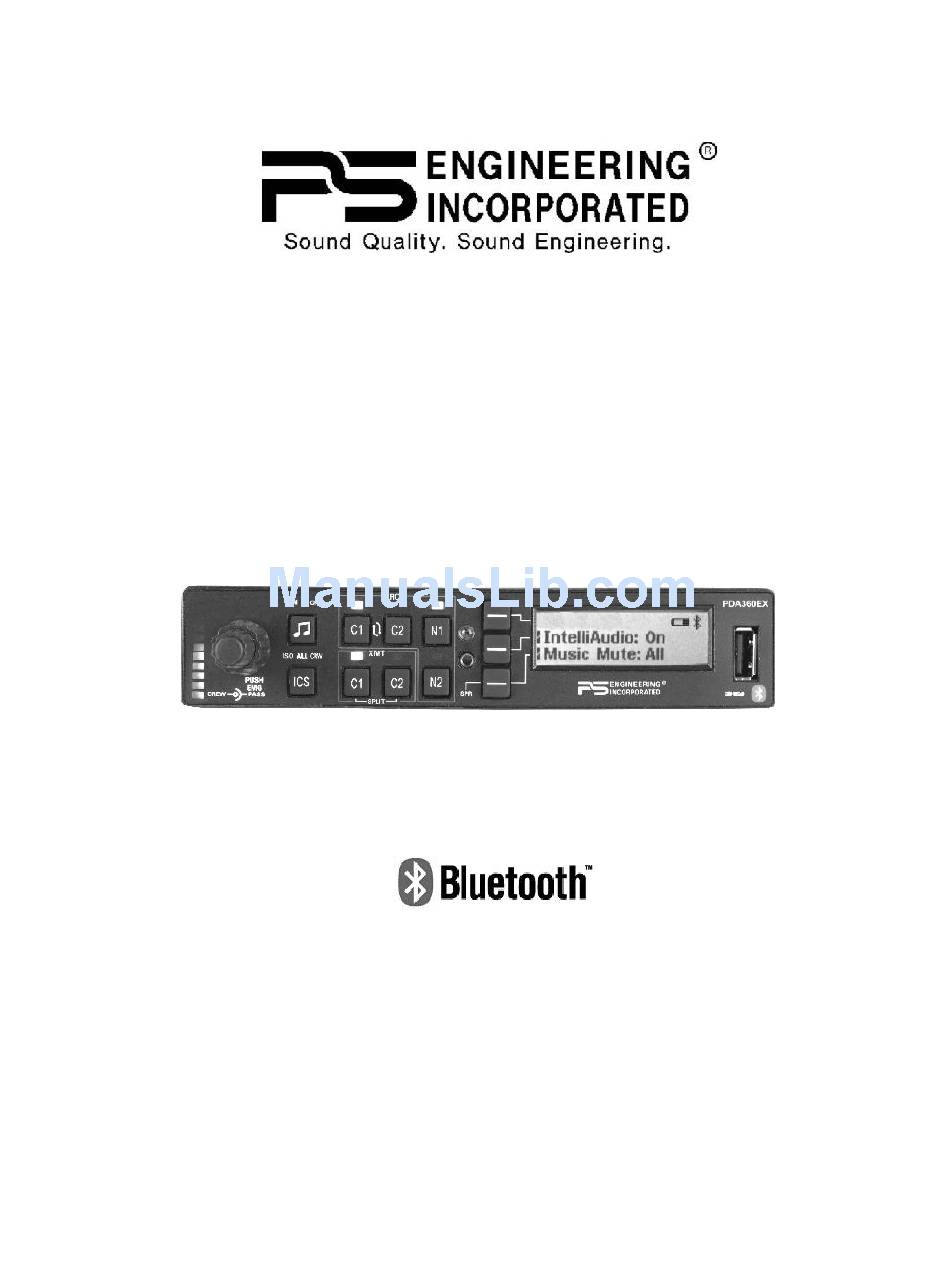

PDA360EX
PDA360EX
Audio Selector Panel
Stereo Intercom System
USB Charging System
with Bluetooth® Connectivity
Operation Manual
Operation Manual
202-360-0000
Covered under one or more of the following Patents
4,941,187; 5,903,227; 6,160,496; 6,493,450;
Flying never sounded so good ®
Oct. 2015 PDA360EX Pilot Guide
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
Pilot's Guide
Pilot's Guide
and
and
7,391,877
202-360-0000
Revision 1
October 2015
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDA360EX and is the answer not in the manual?

Questions and answers

Related Manuals for PS Engineering PDA360EX

Summary of Contents for PS Engineering PDA360EX

  • Page 1 Pilot’s Guide Pilot’s Guide Operation Manual Operation Manual 202-360-0000 Revision 1 October 2015 Covered under one or more of the following Patents 4,941,187; 5,903,227; 6,160,496; 6,493,450; 7,391,877 Flying never sounded so good ® Oct. 2015 PDA360EX Pilot Guide 202-360-0000 Page 1...

  • Page 2: Menu Selection

    This section is divided into sections covering the basic operating ar- eas of the PDA360EX systems. They are Communications Trans- ceiver Selection, Audio Selector, Intercom and special functions, in- cluding the Bluetooth® functionality in the PDA360EX.

  • Page 3: Communications Transmit (Xmt) Selection

    To select a VHF COM radio to listen only, push the C1 or C2 button in the RCV (Receive) section. The PDA360EX will remember when you have selected a radio for receive only, and then switch to it for transmission and switch back to receive only.

  • Page 4: Com Audio Selector

    Intercom and other audio is not spatially processed, only the pilot and copilot VHF COM audio. The spatially processed dimensional sound in the PDA360EX can be adjusted to accommodate the user preferences. This adjustment allows the Spatial Audio inputs to be “relocated” on any of nine (9) defined “Head Related Transfer Function”...
  • Page 5 Additional navigation aid or other audio sources can be selected using the LCD menus. Press the top line select RCVR → SWITCHED INPUTS, → and desired audio source. Oct. 2015 PDA360EX Pilot Guide 202-360-0000 Page 5...

  • Page 6: Intercom Operation

    This is normal. For optimum microphone performance, PS Engineering recommends installation of a Microphone Muff Kit from Oregon Aero (1-800-888- 6910).
  • Page 7 Mono headsets in Stereo Installation Not recommended, because the benefit of IntelliAudio is lost. However, if desired, the PDA360EX can be installed monaurally by using the LEFT audio connections only (left side contains Fail-Safe audio). Do NOT short left and right together.

  • Page 8: Music On/Off

    Mute Mode disappears from the menu. Music Distribution The PDA360EX has two independent music inputs at the rear con- nector. The PDA360EX also has the ability to receive streaming mu- sic from a Bluetooth-enabled device which will be presented as Mu- sic #1.
  • Page 9 Radio – Radio will mute music, but intercom will not mute mu- sic. The PDA360EX always defaults to Mute ALL when turned on. In addition to the panel mute menu, a remote switch may be installed to allow the passengers local access to their Karaoke mode. When this switch is grounded, the menu choice is overridden.

  • Page 10: Bluetooth Connection

    When that number is exceeded, the PDA360EX will randomly drop a device to allow the new device to be added. Hint, if your old phone is not recognized by the PDA360EX, you may need to reset from the Bluetooth menu.
  • Page 11 Com 1 or 2, simply by using their respective PTT switch. In ISO intercom mode, when the PDA360EX is in the TEL mode, the pilot position is in the "Phone Booth." Only the pilot will hear the telephone, and only he will be heard. There will not be telephone sidetone in ISO.
  • Page 12 Com Receive button again for 1 second. USB Charging Port (9) The PDA360EX contains a USB charging port that is capable of pro- viding 5 VDC, 1.5 amps of current to charge the batteries in smart...

  • Page 13: Lcd Screen Adjustment

    Press the line select for the desired item Turn the small, inner knob to change the contrast or bright- ness as desired. Cycle the PDA360EX power to exit setup screen. Display Timeout This is a feature that allows the user to adjust how quickly the screen menus timeout (revert to main menu).
  • Page 14 Pair: The 4 digit pass code can be changed to any number desired. This is useful if the owner wants to restrict access to the audio panel Blue- tooth functions. ID: The PDA360EX can be renamed using this mode to show up on the devices with a personalized identifier. Page 14...

  • Page 15: Warranty And Service

    All domestic transportation charges for returning the exchange or repaired unit to the purchaser will be borne by PS Engineering, Inc. The risk of loss or damage to the product is borne by the party making the shipment, unless the purchaser requests a specific method of shipment.
  • Page 16 Commercial use is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800 Page 16...
