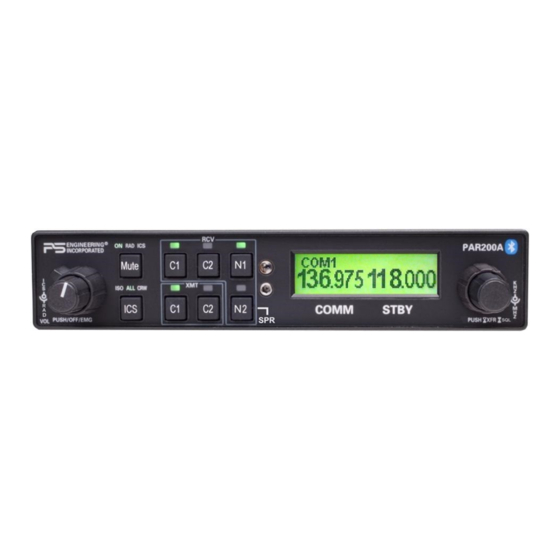

PAR200A
Audio Selector Panel
High-fidelity Stereo Intercom System
VHF Communications Transceiver Controller
Flying Never Sounded So Good! ®
Pilot's Guide
and
Operation Manual
202-228-0200
Revision 1
February 2020
FAA-TSO Approved
Covered under one or more of the following Pa-
tents No. 4,941,187, 5,903,227, 6,160,496,
6,493,450
Feb. 2020 PAR200A Pilot Guide
202-228-0200
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR200A and is the answer not in the manual?

Questions and answers

Related Manuals for PS Engineering PAR200A

Summary of Contents for PS Engineering PAR200A

  • Page 1 Flying Never Sounded So Good! ® Pilot’s Guide Operation Manual 202-228-0200 Revision 1 February 2020 FAA-TSO Approved Covered under one or more of the following Pa- tents No. 4,941,187, 5,903,227, 6,160,496, 6,493,450 Feb. 2020 PAR200A Pilot Guide 202-228-0200 Page 1...

  • Page 2: Communications Trans- Mit (Xmt) Selection

    This section provides detailed operating instructions for the PS Engineering PAR200A, Audio Selector Panel/Intercom/VHF Communication Control Systems. Please read it carefully before using the equipment so that you can take full advantage of its capabilities. This section is divided into sections covering the basic operating areas of the PAR200A systems.

  • Page 3: Split Mode

    Push the lower button to select the desired COM transmitter. A green LED above the button illuminates to indicate that the audio is selected. The PAR200A has an automatic com receiver selector system. Audio from the selected transceiver is automatically heard in the headsets and speaker (if selected).

  • Page 4: Frequency Selection

    Any additional installed receiver audio (Marker, ADF, etc) is interfaced through an unswitched input. VHF Transceiver control (5) The right side of the PAR200A is dedicated to con- trol of the VHF communications transceiver. Fre- quency selection is always directed to the STANDBY side of the display.

  • Page 5: Monitor Mode

    Frequency Storage The PAR200A will store five frequencies for future recall. To store frequencies: 1. Enter the desired frequency into the STBY frequency. 2. Press and hold the C1 RCV button until the display changes FREQ SE- LECT, to show only the STBY side.

  • Page 6: Cockpit Speaker

    For consistent performance, any headset microphone must be placed within ¼-inch of your lips, preferably against them. (ref: RTCA/DO-214, 1.3.1.1 (a)). NOTE Page 6 202-228-0200 PAR200A Rev. 1 Pilot Guide...

  • Page 7: Intercom Volume Control

    This is normal. For optimum microphone performance, PS Engineering recommends instal- lation of a Microphone Muff Kit from Oregon Aero (1-800-888-6910). This will not only optimize VOX performance, but will improve the overall clari- ty of all your communications.

  • Page 8: Mono Headsets In Stereo Installation

    This process will be necessary for any phone to be used, and only one cell phone can be associated with the audio panel at a time. If the additional phones are associated with the PAR200A at the same time, only the first phone will transfer audio to the panel.

  • Page 9: Music Distribution

    Passengers will not hear the telephone. The pilot and copilot will also have transmit capability on the other selected transceiver. In ISO intercom mode, when the PAR200A is connected to the Bluetooth telephone, the pilot position is in the "Phone Booth." Only the pilot will hear the telephone, and only he will be heard.

  • Page 10: Music 2 Mute Control

    Contrast on the LCD display can be controlled by using a service adjustment inside the unit. See installation Manual for details. Mode Intercom Radio Mute On Muted Muted Radio Mute ♫ Muted Intercom Mute Muted ♫ None Mute Off ♫ ♫ Page 10 202-228-0200 PAR200A Rev. 1 Pilot Guide...
  • Page 11 Feb. 2020 PAR200A Pilot Guide 202-228-0200 Page 11...
  • Page 12 Installation date: _____________________________ PS Engineering, Inc. 2014 © Copyright Notice Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to improve or change the products or contents of this manual, without notification of any person or agency.
