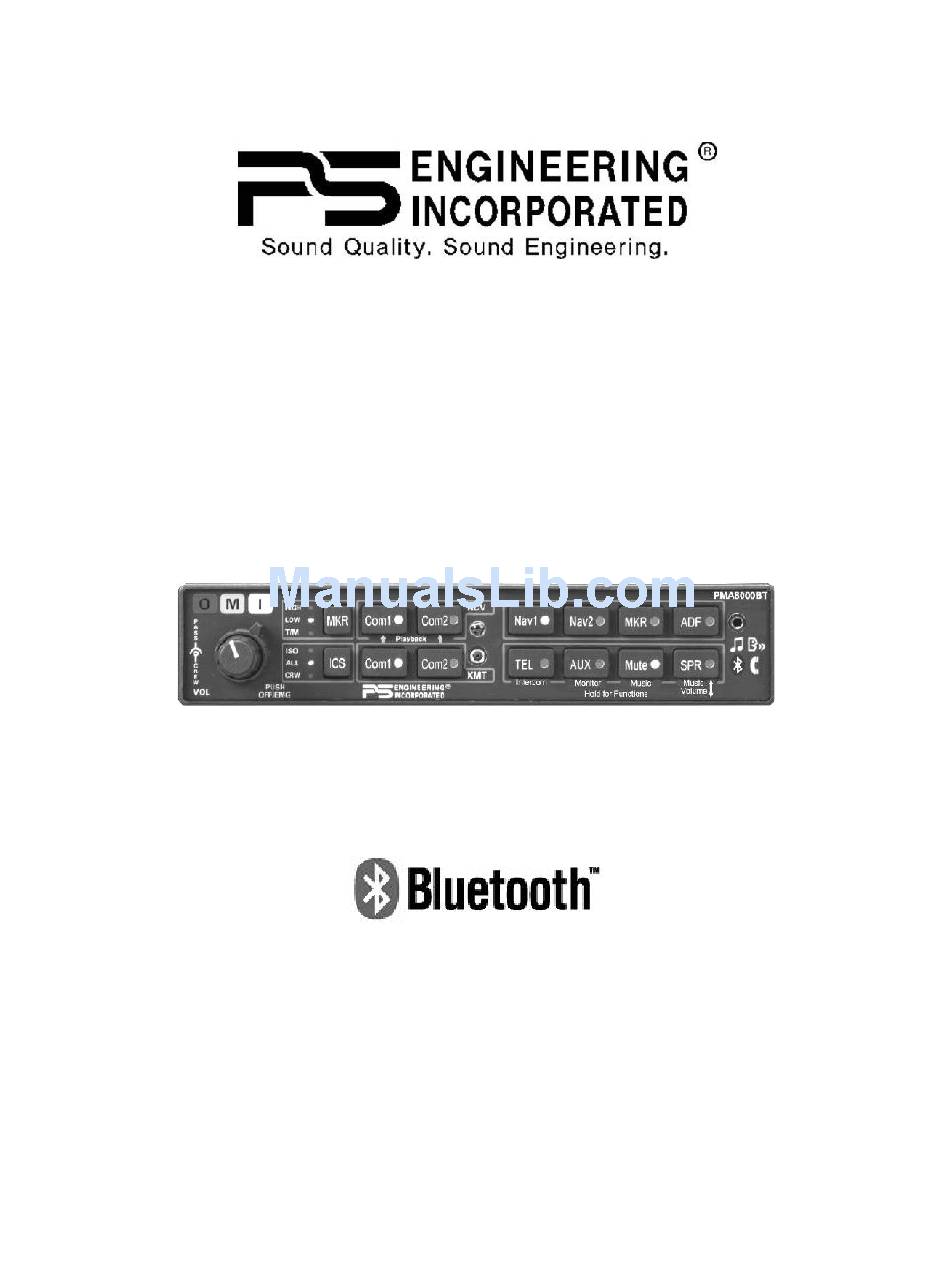

PS Engineering PMA8000BT Pilot's Manual And Operation Manual

Audio selector panel marker beacon receiver stereo intercom system with bluetooth connectivity
Hide thumbs Also See for PMA8000BT:
Table of Contents

Advertisement

Quick Links

Download this manual
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com

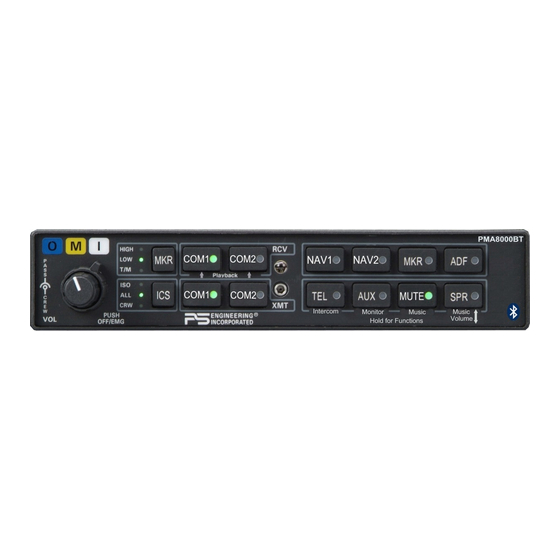

PMA8000BT
PMA8000BT
Audio Selector Panel
Marker Beacon Receiver
Stereo Intercom System
with Bluetooth™ Connectivity
Pilot's Guide
Pilot's Guide
and
and
Operation Manual
Operation Manual
202-890-0702
Rev. 9 Dec. 2016
Covered under one or more of the following Patent
No. 4,941,187, 5,903,227, 6,160,496, 6,493,450
FAA-Approved: TSO C50c, C35d
EASA-Approved ETSO C50c, 2C35d
For units with serial number HBT5000 and above
Dec. 2016 PMA8000BT Pilot Guide
202-890-0702
Page 1
Flying never sounded so good ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA8000BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PS Engineering PMA8000BT

Summary of Contents for PS Engineering PMA8000BT

  • Page 1 Covered under one or more of the following Patent No. 4,941,187, 5,903,227, 6,160,496, 6,493,450 FAA-Approved: TSO C50c, C35d EASA-Approved ETSO C50c, 2C35d For units with serial number HBT5000 and above Dec. 2016 PMA8000BT Pilot Guide 202-890-0702 Page 1 Flying never sounded so good ®...

  • Page 2: Power Switch (1) (Emg-Fail Safe Operation)

    When the unit is turned off, either by pressing the volume control, or if the breaker is pulled removing power, the PMA8000BT is in Fail-Safe mode. In this mode, the pilot’s headset is connected to COM 1 for transmit and re- ceive, and connected to unswitched input #1 for priority audio alerts.

  • Page 3: Audio Selector

    When a com is selected for receive, it will stay selected until manually deselected, even if you select, and then deselect its transmitter. Unless the audio panel is in “split” mode, the PMA8000BT gives priority to the pilot’s radio Push-To-Talk (PTT).

  • Page 4: Intercom Volume Control

    The pilot and copilot positions work with stereo or mono headsets. If a mon- aural headset is plugged in to a PMA8000BT Stereo installation, one channel will be shorted and all passengers will lose one channel unless they switch to the “MONO”...

  • Page 5: Marker Beacon Operation

    "T/M" and illuminates all three lamps simultaneously to confirm the lamps (internal and external) are working. Releasing the button returns to the last sensitivity. Split Mode To activate the split mode, push both the COM 1 Dec. 2016 PMA8000BT Pilot Guide 202-890-0702 Page 5...

  • Page 6: Utility Jack

    When any aircraft leaves the ground, all cellular telephones on board that aircraft must be turned off.” Utility Jack The 2.5 millimeter (3/32”) jack on the front of the PMA8000BT has three distinct functions:  Cell phone input (wired)

  • Page 7: Bluetooth Connection

    This can happen automatically, or by prompting the user to accept the connection again. The PMA8000BT will always look for paired devices when it is turned on, and connect with the first one that allows connection.
  • Page 8 Note, if an iPhone is connected second, you may not be able to stop it from taking over the music. Some phones must manually select the PMA8000BT as an audio source for the phone after the music is connected.
  • Page 9 Can I play my laptop movie audio? If your laptop is compatible as Bluetooth A/V source (not all are), yes. Just add the PMA8000BT as a Bluetooth device as you would a stereo speaker device. There are also Bluetooth devices available (such as the Sony TMR-BT10A Bluetooth Transmitter Adapter) to plug into the audio output jack that will enable you to stream music to the audio panel.

  • Page 10: Telephone Operation

    “Mute off” ♫ ♫ “Radio mute” Muted ♫ dicator blinks. The ICS indicator will then blink every few seconds to indicate this mode is active. Music muting will follow the modes listed above. Page 10 202-890-0702 PMA8000BT Pilot Guide Rev. 9...
  • Page 11 Smart Function Key (SFK) Configuration Secondary functions give the PMA8000BT some special capabilities. “Intercom” allows the passengers and crew to converse, in ALL in- tercom mode, without distracting the crew from radio duties. The pas- senger microphones are cut out from the crew when the radio is ac- tive, and the passengers never hear aircraft radios.
  • Page 12 ISO and ALL intercom modes. The PMA8000BT will announce the Alternate Intercom and Music distribution functions at unit power up. To defeat the announcement at power up, hold the TEL and AUX buttons for about two seconds.
  • Page 13 Pilot or copilot is transmitting COM or COM 2 RCV Every 3 seconds Monitor mode activated ICS mode Every 3 seconds Pilot has music in ISO Mute and SPR buttons Every 1 second PA Mode active Dec. 2016 PMA8000BT Pilot Guide 202-890-0702 Page 13...
  • Page 14 HIS PAGE INTENTIONALLY BLANK Page 14 202-890-0702 PMA8000BT Pilot Guide Rev. 9...

  • Page 15: Audio Advisory Input

    “Smart Jack” Function When the PMA8000BT has an audio signal on music #1 from the rear con- nector, the front panel jack automatically becomes a Priority Advisory input, and is heard in the crew headphones, and this input will NOT be muted by radio or intercom., if the Music 1 audio is actively playing.

  • Page 16: Intercom Function

    (the one selected to transmission) is active. “Music” function controls how music is distributed in your airplane. There are two music sources available to the PMA8000BT, in addition to the Bluetooth stream. Music 1 input can be either on the front jack, or the Music 1 input at the rear connector (Pins 23 and 24, J2).

  • Page 17: Music Muting

    “Mute” mode selected. When that conversation stops, the music returns to the previous level com- fortably, over a second or so. The mute mode functions are controlled through sequential pushes of the Dec. 2016 PMA8000BT Pilot Guide 202-890-0702 Page 17...

  • Page 18: Music 1 Volume

    MUTE button LED is OFF. Annunciation is "Mute off." When the PMA8000BT is turned on, it always begins in “Mute on” mode. The passengers’ intercom also has a SoftMute™ circuit. If the passengers hear the radio, or talk on the intercom, the music will mute. If the audio panel is in CREW mode, then the radio reception will not affect the passen- ger music.
  • Page 19 Backlighting The white text backlighting is controlled by the aircraft dimmer, while the green indication LEDs are automatically controlled by the light sensor on the PMA8000BT. Dec. 2016 PMA8000BT Pilot Guide 202-890-0702 Page 19...

  • Page 20: Warranty And Service

    PS Engineering dealer. During the first twelve (12) months of the three-year warranty period, PS Engineering, Inc., at its option, will send a replacement unit at our expense if the unit should be determined to be defective after consultation with a factory technician. For the remaining twenty-four (24) months of the three-year warranty period, PS Engineering will send a no-cost replacement unit at customer shipping expense.
