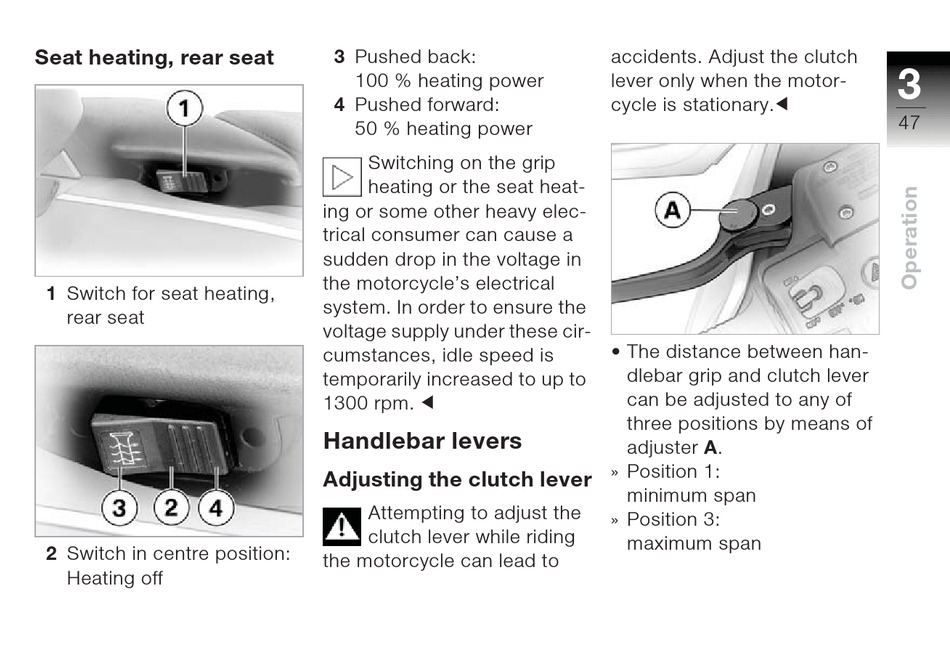

Seat heating, rear seat
1 Switch for seat heating,
rear seat
2 Switch in centre position:
Heating off
3 Pushed back:
100 % heating power
4 Pushed forward:
50 % heating power
Switching on the grip
heating or the seat heat-
ing or some other heavy elec-
trical consumer can cause a
sudden drop in the voltage in
the motorcycle's electrical
system. In order to ensure the
voltage supply under these cir-
cumstances, idle speed is
temporarily increased to up to
1300 rpm. c
Handlebar levers
Adjusting the clutch lever
Attempting to adjust the
clutch lever while riding
the motorcycle can lead to
accidents. Adjust the clutch
lever only when the motor-
cycle is stationary.c
• The distance between han-
dlebar grip and clutch lever
can be adjusted to any of
three positions by means of
adjuster A.
» Position 1:
minimum span
» Position 3:
maximum span
3
47
