Gear indicator
The gear indicator shows
which gear is selected. If
no gear is engaged, the gear
indicator displays 0; the 'neu-
tral' telltale light also lights up.
Oil temperature
The height of the bar indi-
cates the oil temperature.

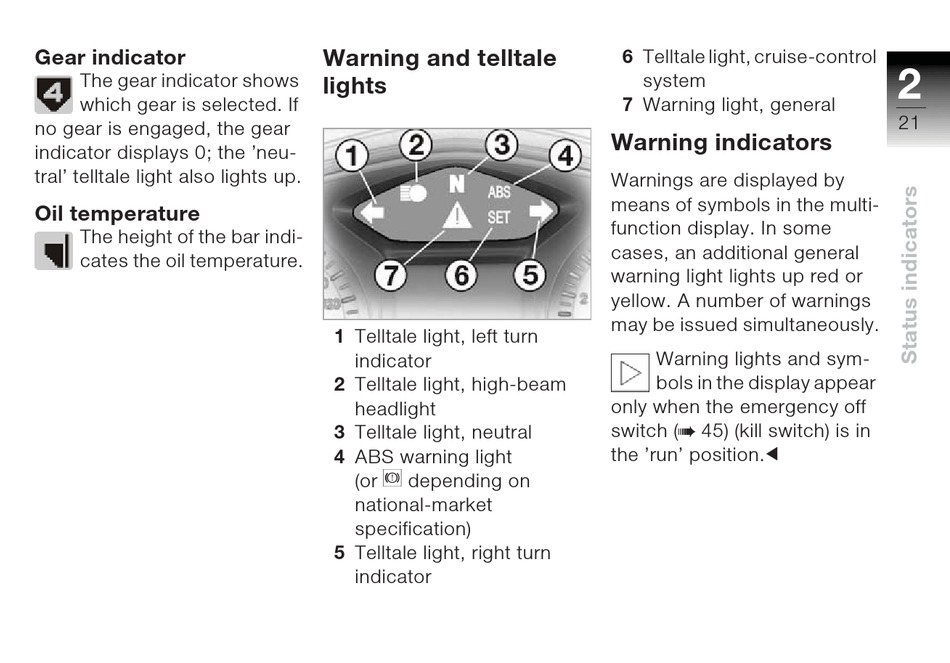

Warning and telltale
lights
1 Telltale light, left turn
indicator
2 Telltale light, high-beam
headlight
3 Telltale light, neutral
4 ABS warning light
n
(or depending on
national-market
specification)
5 Telltale light, right turn
indicator
6 Telltale light, cruise-control
system
7 Warning light, general

Warning indicators

Warnings are displayed by
means of symbols in the multi-
function display. In some
cases, an additional general
warning light lights up red or
yellow. A number of warnings
may be issued simultaneously.
Warning lights and sym-
bols in the display appear
only when the emergency off
switch ( 45) (kill switch) is in
b
the 'run' position.c
