SYSTEM OPTIONS
AUTOMATIC COUNTDOWN CYCLE
There is a 4-position configuration switch (designated S2) located on the Receiver circuit board. This switch can be
used to set a countdown cycle (time-out feature) for the Spa and/or Aux1 circuit. Once this feature has been enabled,
the equipment will automatically turn off after the countdown cycle irrespective of how the circuit was turned on
(by Hand-held Remote or optional Indoor Remote, or Spa-side Remote).

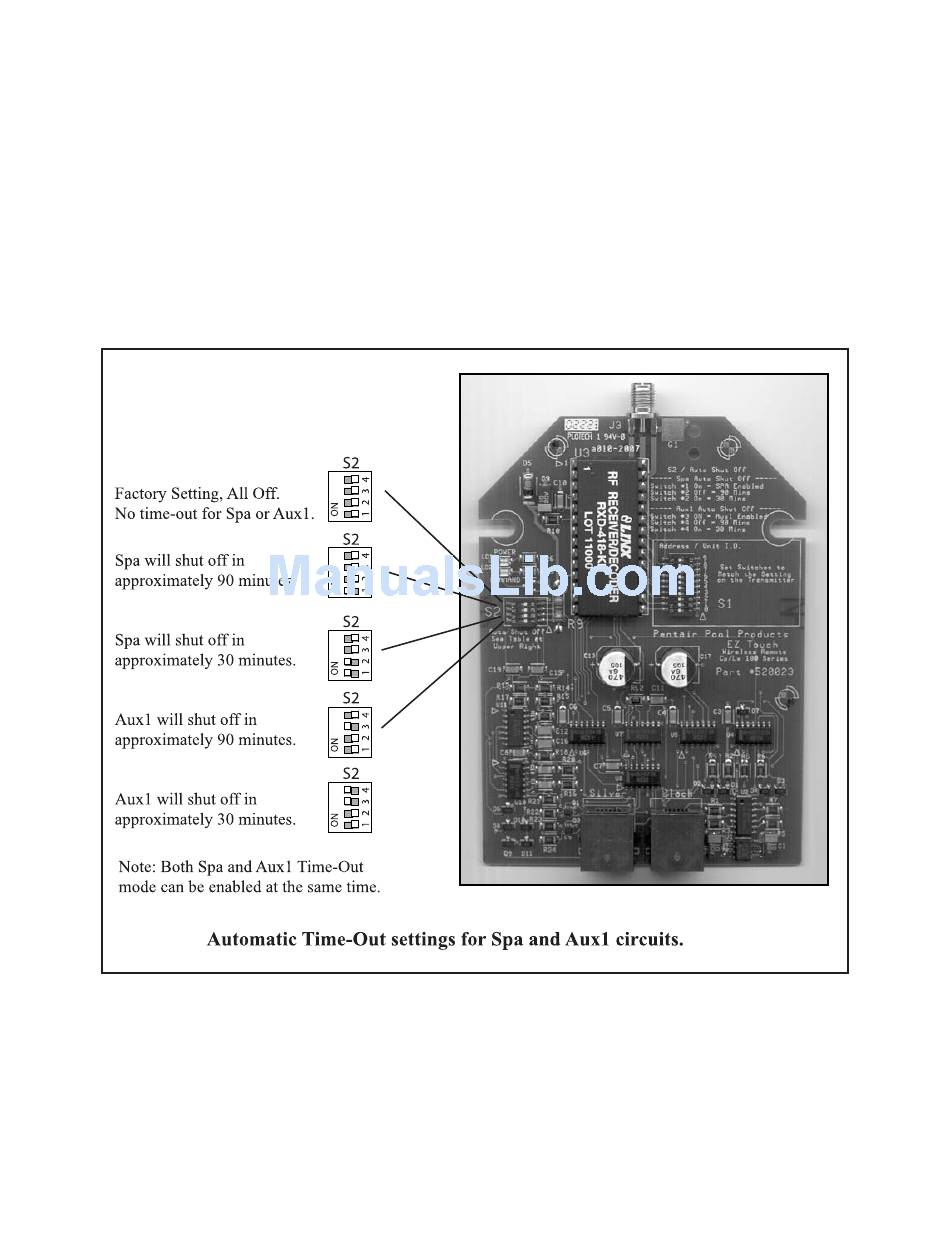

Use the end of a paper clip or other blunt instrument to slide the appropriate switch at S2 to the "ON" or "OFF"
position, in accordance with the following diagram:
P/N 520050
14
Rev. F 3-26-04
