Customizing The Communication Link - Pentair EasyTouch Pool/Spa Control System LX-100EZ Installation And Owner's Manual

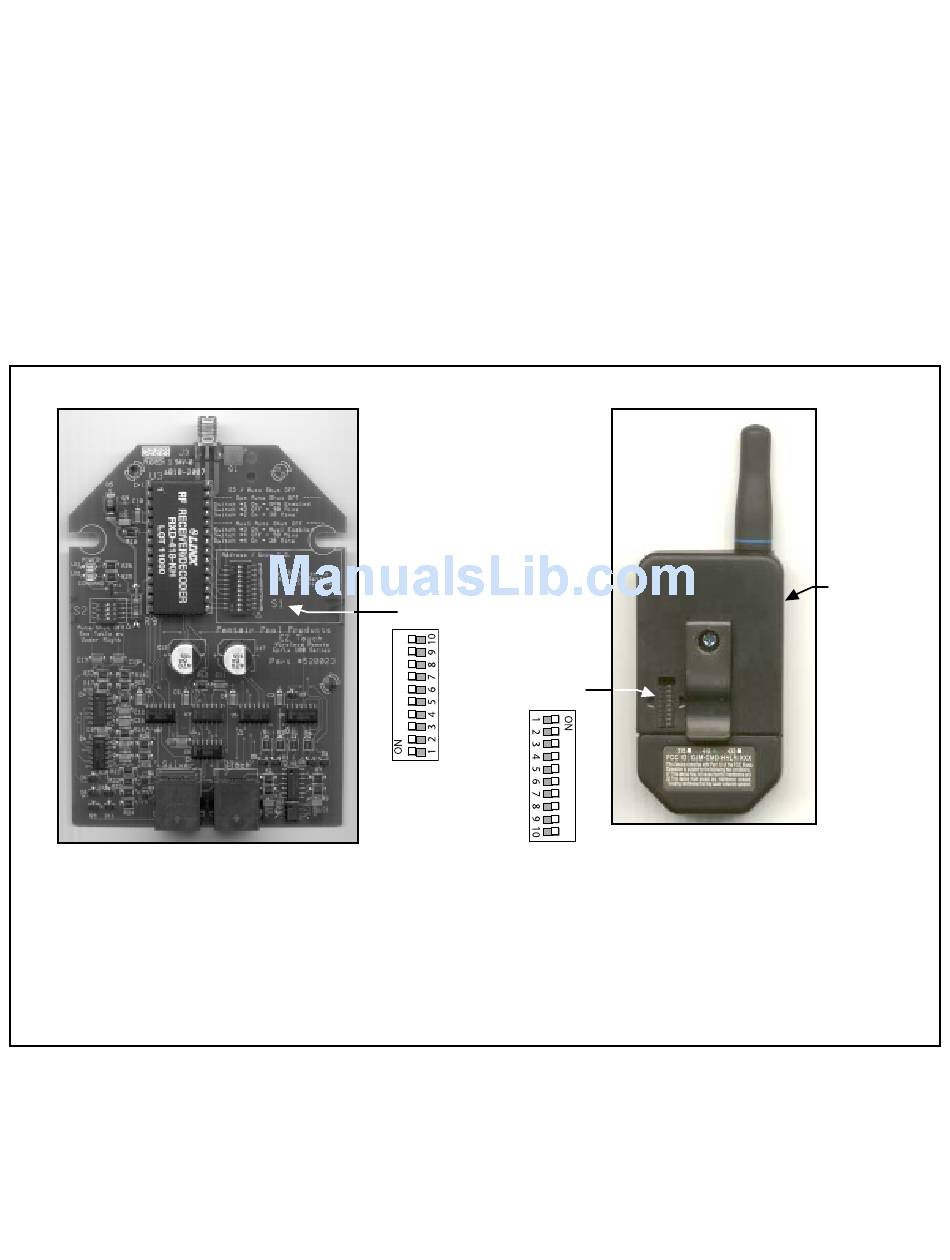

The communication link between the Receiver and Hand-held Remote can be customized to prevent interference
to or from other RF systems. To accomplish this, there is a 10-position configuration switch located on the
Receiver circuit board and inside the Hand-held Remote. Units are shipped from the factory with all switches in
the "ON" position. If you wish to change this setting, use the end of a paper clip or other blunt instrument and
adjust configuration switches to match. If the configuration switch setting at the Receiver does not match that of
the Hand-held Remote the communication link will not function.
Labels have been provided, marked with the most commonly used functions. These labels may be affixed to the
side of the Hand-held Remote to assist with button identification.
Receiver
Matching Code Example: Remote switches 2, 4, 6 "ON". Receiver switched 2, 4, 6 "ON".
Rev. F 3-26-04

CUSTOMIZING THE COMMUNICATION LINK

COMMUNICATION LINK ADJUSTMENT
NOTE: All Program Switches are Factory set to "ON".
S1
Switch
11
Button
Labels
Transmitter
Affix
ID
Here
P/N 520050
