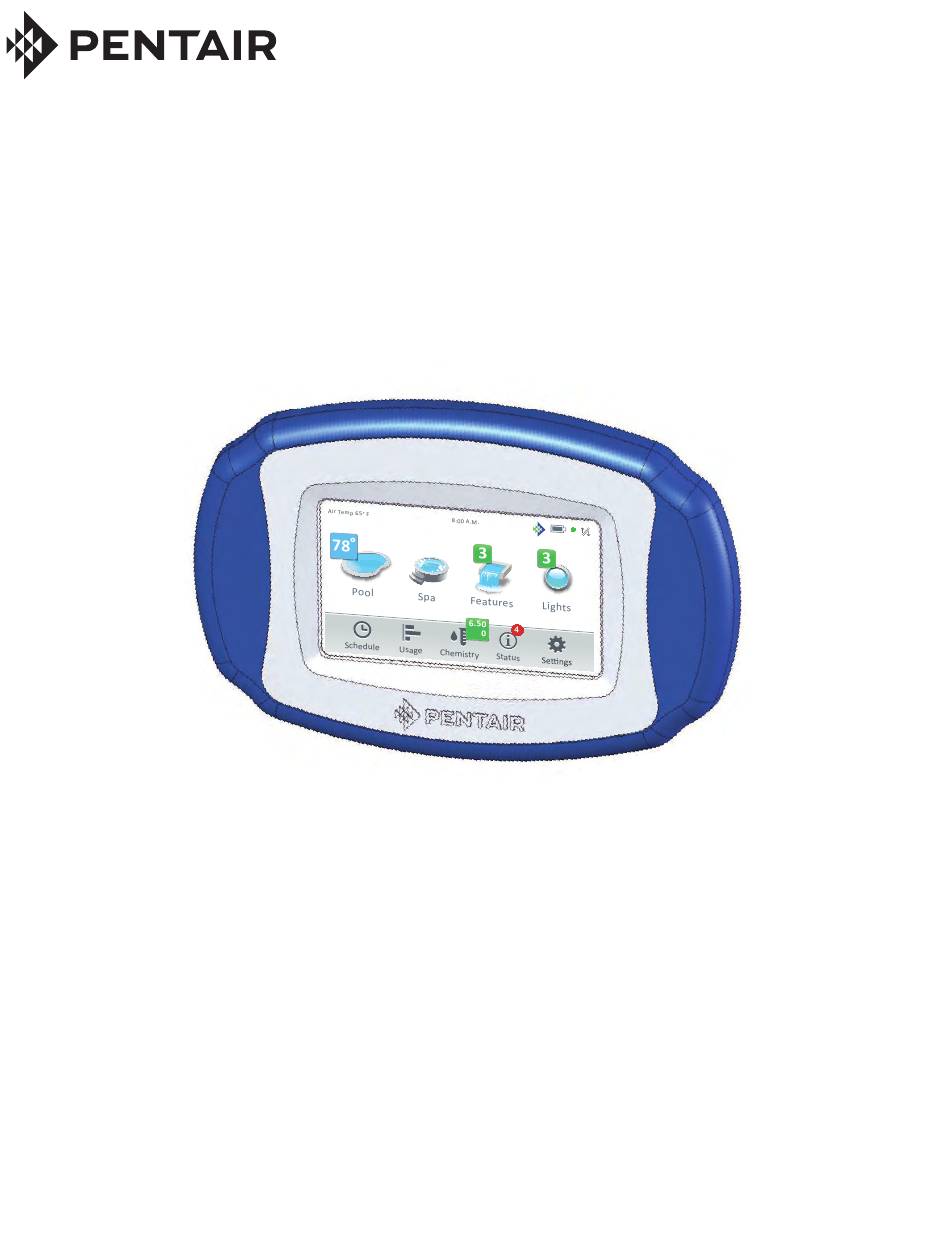

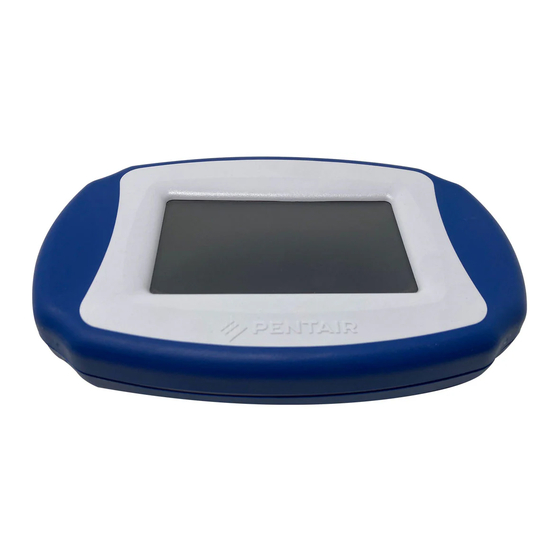

- Page 1 INTELLICENTER CONTROL SYSTEM ™ WIRELESS REMOTE INSTALLATION GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents Warning and Safety Instructions iii-v IntelliCenter Control System Wireless Remote Charging the IntelliCenter Control System Wireless Remote IntelliCenter Control System Wireless Remote Home Screen Battery Icon IntelliCenter Control System Wireless Remote Wireless Transceiver Installation IntelliCenter Control System Wireless Remote Kit Mounting the Wireless Remote Transceiver Module Connecting the Transceiver Module to the IntelliCenter Control System Load Center... -
Page 3: Warning And Safety Instructions
This guide provides installation and operation instructions for the IntelliCenter Control System Wireless ™ Remote. Consult Pentair Water Pool and Spa, Inc. with any questions regarding this equipment (see “Customer Service/Technical Support”, page iv). Attention Installer: This guide contains important information about the installation, operation and safe usage of this product. - Page 4 BATTERY INFORMATION • Danger of explosion if battery is incorrectly replaced. • ONLY USE a Pentair Water Pool and Spa (“Pentair”) replacement battery. Order Battery (P/N 522054). • Rechargeable Lithium-ion battery disposal: Unwanted lithium ion battery pack may be returned to your local recycling center or the manufacturer for disposal.
- Page 5 IMPORTANT WARNING AND SAFETY INSTRUCTIONS FCC Standard: 47 CFR Part 15, Subpart C (Section 15.247). This version is limited to chapter 1 to chapter 11 by specified firmware controlled in the U.S.A. FCC non-modification statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 6 Sanford, North Carolina (8 AM to 8 PM ET) Phone: (919) 566-8000 Phone: (800) 831-7133 Fax: (919) 566-8920 Fax: (800) 284-4151 Moorpark, California (8 AM to 5 PM PT) Visit www.pentair.com Phone: (805) 553-5000 Fax: (805) 553-5515 IntelliCenter Control System Wireless Remote Installation Guide...
-
Page 7: Intellicenter Control System Wireless Remote
Canadian installations require a minimum of (3) meters from pool water. Do not recharge outdoors. Only use Pentair approved AC power adapter transformer. The Wireless Remote is water resistant and can be exposed to temporary splashing or wet hands. -
Page 8: Charging The Intellicenter Control System Wireless Remote
Charging the IntelliCenter™ Control System Wireless Remote When you are not using the IntelliCenter Wireless Remote, place it in its cradle to recharge the battery. This allows the battery to be fully charged at all times. To Charge the Wireless Remote battery •... -
Page 9: Intellicenter Control System Wireless Remote
When the battery is fully charged the left to right scrolling of the battery icon will stop. The battery icon will be solid when the battery is fully charged. Note: If the battery requires replacement, only use Pentair replacement battery (P/N 522054). Battery Icon Air Temp 65°... -
Page 10: Intellicenter Control System Wireless Remote Wireless Transceiver Installation
IntelliCenter™ Control System Wireless Remote Transceiver Installation The following procedure describes how to install the Transceiver module and connect the Transceiver cable to the COM port on the IntelliCenter Control System main circuit board. NOTE: USING MULTIPLE WIRELESS REMOTES: When using multiple wireless remotes, be sure the Transceiver for each of these controllers are located at least 6 ft. - Page 11 Mounting the Wireless Remote Transceiver (Continued) 6. Position the back plate over the mounting points and secure it with the four mounting screws (provided in the kit). 7. Carefully slide the transceiver circuit board into the back plate. 8. Strip the leads of the communication cable wires back ¼ in. Insert the wires into the connector screw terminals (provided in the kit).
-
Page 12: Connecting The Transceiver Module To The Intellicenter Control System Load Center
Connecting the Transceiver Module to the IntelliCenter™ Control System Load Center SWITCH OFF AC POWER TO THE INTELLICENTER CONTROL SYSTEM LOAD CENTER BEFORE MAKING ANY CONNECTIONS. To connect the Transceiver wires to the COM port on the system circuit board: BEFORE REMOVING THE HIGH VOLTAGE COVER PANEL FROM THE LOAD CENTER OR POWER CENTER ENCLOSURE SWITCH OFF THE POWER AT THE HOUSE MAIN CIRCUIT BREAKER BOX. - Page 13 (Continued) 5. Strip the leads of the communication cable wires back ¼ in. Insert the wires into the connector screw terminals (provided in the kit). Using a small flat-blade screwdriver, secure the wires with the COM PORT terminal screws. Make sure to match the color-coding of the wires: GND = Black, Green = -DT, Yellow = +DT, and Red = +15.
-
Page 14: Intellicenter Control System Wireless Remote Connection Diagram
IntelliCenter™ Control System WIreless Remote Connection Diagram Wireless Control Panel Transceiver RS-485 (COM Port) Transceiver connects to the IntelliCenter Control System IntelliCenter Control System RS-485 (COM Port) on the Load Center main circuit board (Located outside at equipment pad) -
Page 15: Intellicenter Control System Wireless Remote Setup
IntelliCenter™ Control System Wireless Remote Setup The Wireless Remote requires optional Kit P/N 522036. This kit includes a wireless transceiver with antenna which connects to an RS-485 COM port on the IntelliCenter Control System Outdoor Control Panel circuit board located in the load center. For IntelliCenter Control System start up information, refer to the IntelliCenter Control System User’s Guide (P/N 522561). -
Page 16: Wireless Remote Firmware Update
IntelliCenter™ Wireless Remote Firmware Update The Wireless Remote current firmware can be updated using the USB port. Update the Current Wireless Remote Firmware 1. Insert a USB device in the USB port on the IntelliCenter Control System Outdoor, Indoor Control Panel or the Wireless Remote. -
Page 17: Intellicenter Control System Menu
Alerts and Notifications: Choose which system status, alerts and warnings badges to display on the Home screen Status icon. Security: (Passcode Protect) Pentair User Portal: (intellicenter.com) Groups: Configure groups of AUX circuits, Light circuits and Feature circuits. System Reboot: Reboot the panel Advanced System Configuration... - Page 18 Notes...
- Page 19 Notes IntelliCenter Control System Wireless Remote Installation Guide...
- Page 20 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
